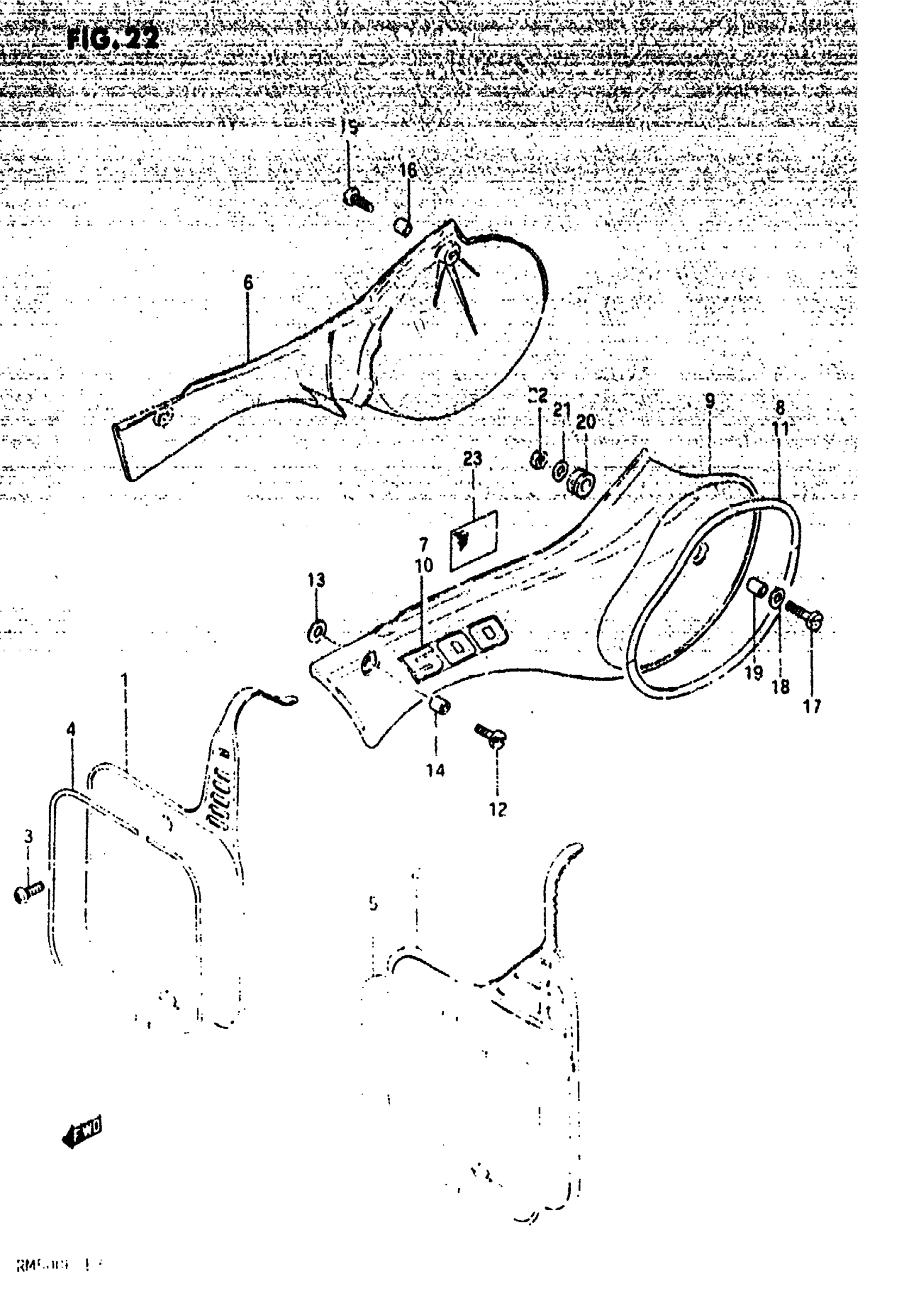

Suzuki RM500 (1984) FRAME COVER Diagram

#

Description
Price

1

PLATE, FRONT NUMBER (YELLOW) | MODEL D This part replaces 94911-14300.

94911-00B10-25Y

$64.72

2

PLATE, FRONT NUMBER (YELLOW) | MODEL E This part replaces 94911-14501-163.

94911-00B10-25Y

$64.72

3

SCREW

02142-05167

$1.49

4

TAPE SET, FRONT | MODEL D

68250-14200

Unavailable

5

TAPE SET, FRONT (BLACK) | MODEL E

68250-14210-291

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 47111-14120-163.

47111-14120-13L

Unavailable

7

EMBLEM, RH

68131-14230-74H

Unavailable

8

TAPE

68130-14220

Unavailable

9

COVER, FRAME LH (YELLOW)

47211-14120-163

Unavailable

10

EMBLEM, LH | MODEL D

68141-14230-74H

Unavailable

11

TAPE, LH

68140-14220

Unavailable

12

SCREW, FRONT

09123-06026

Unavailable

13

WASHER This part replaces 94927-14110.

09160-06084

$1.78

14

SPACER (6.1X8X3.5) This part replaces 09180-06098.

09180-06245

$2.11

15

SCREW, REAR

09123-06026

Unavailable

16

SPACER (6.1X8X3.5) This part replaces 09180-06098.

09180-06245

$2.11

17

SCREW, REAR LH

09123-06027

Unavailable

18

WASHER, FRONT This part replaces 09160-06004.

09160-06134

$1.91

19

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

20

CUSHION

09320-08018

$3.04

21

WASHER This part replaces 94927-14110.

09160-06084

$1.78

22

.NUT This part replaces 08310-22068.

08310-00067

$2.13

23

SHIELD,FRM CVR, This part replaces 47122-14201.

47167-28C10

Unavailable
