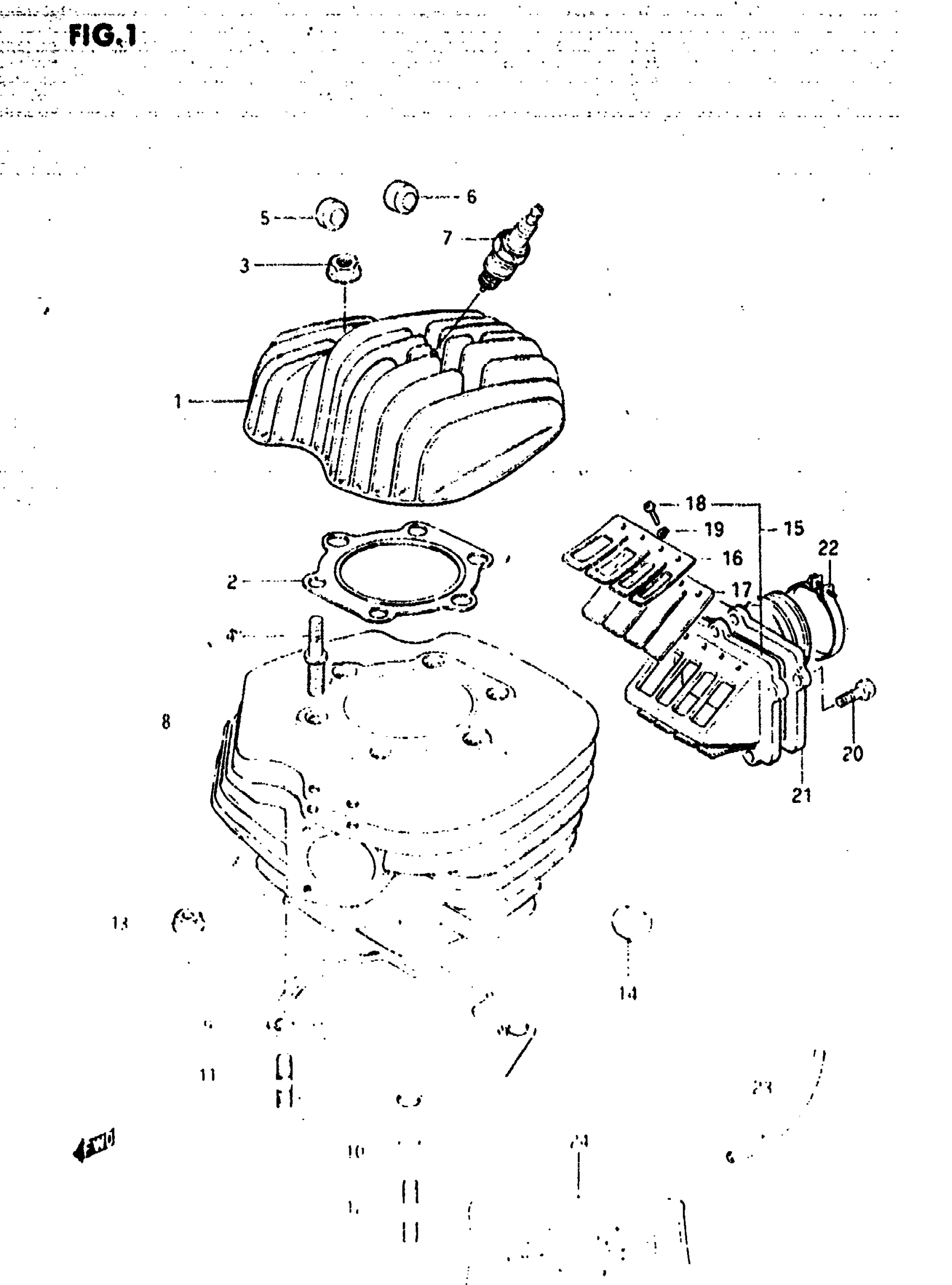

Suzuki RM500 (1984) CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD

11111-14220

Unavailable

2

GASKET (T:0.6)

11141-14220

Unavailable

3

NUT This part replaces 08316-16085.

08316-1008B

$2.66

4

STUD BOLT This part replaces 09108-08108.

09108-08086

Unavailable

5

RUBBER PAD | OPT This part replaces 11252-28000.

11252-13630

$3.25

6

RUBBER PAD | OPT

11252-38001

$3.78

7

SPARK PLUG (NGK,B8EGV)

09482-00208

Unavailable

8

CYLINDER | MODEL D

11210-14221

Unavailable

8

CYLINDER | MODEL E

11210-14233

Unavailable

9

GASKET,CYLINDER | MODEL D This part replaces 11241-14221.

11241-14231-H17

Unavailable

9

GASKET,CYLINDER | MODEL E This part replaces 11241-14231.

11241-14231-H17

Unavailable

10

PIN This part replaces 09206-13001.

04211-13189

$2.19

11

STUD BOLT (L:30) | MODEL D This part replaces 01421-10305.

01421-1030A

$2.57

11

STUD BOLT (10x30) | MODEL E

09108-10065

Unavailable

12

NO DESCRIPTION AVAILABLE | MODEL D This part replaces 01421-10405.

01421-10403

Unavailable

12

NO DESCRIPTION AVAILABLE | MODEL E This part replaces 09108-10066.

09108-10066-XC0

Unavailable

13

NUT This part replaces 08316-16105.

08316-1010B

$2.66

14

RUBBER PAD | OPT

11151-16400

Unavailable

15

VALVE ASSY, REED | Includes Item(s) 16 - 19 This part replaces 13150-14200.

13150-01C00

Unavailable

16

VALVE ASSY, REED This part replaces 13152-14200.

13150-01C00

Unavailable

17

REED VALVE

13153-14200

Unavailable

18

SCREW This part replaces 02112-03088.

02112-0308A

$1.80

19

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

20

BOLT, GEAR SHIFT LINK This part replaces 01107-06205.

01500-0620A

$1.78

21

PIPE, INTAKE

13110-14210

Unavailable

22

CLAMP This part replaces 09402-56306.

09402-56901

$5.36

23

HOSE 4X7X600 | L:440>300L;440>400L:440>330 This part replaces 09343-04046.

09352-40706-600

$5.11

24

NO DESCRIPTION AVAILABLE | OPT MODEL D This part replaces 11400-14880.

11400-14886

Unavailable

24

NO DESCRIPTION AVAILABLE | OPT MODEL E This part replaces 11400-14884.

11400-14886

Unavailable
