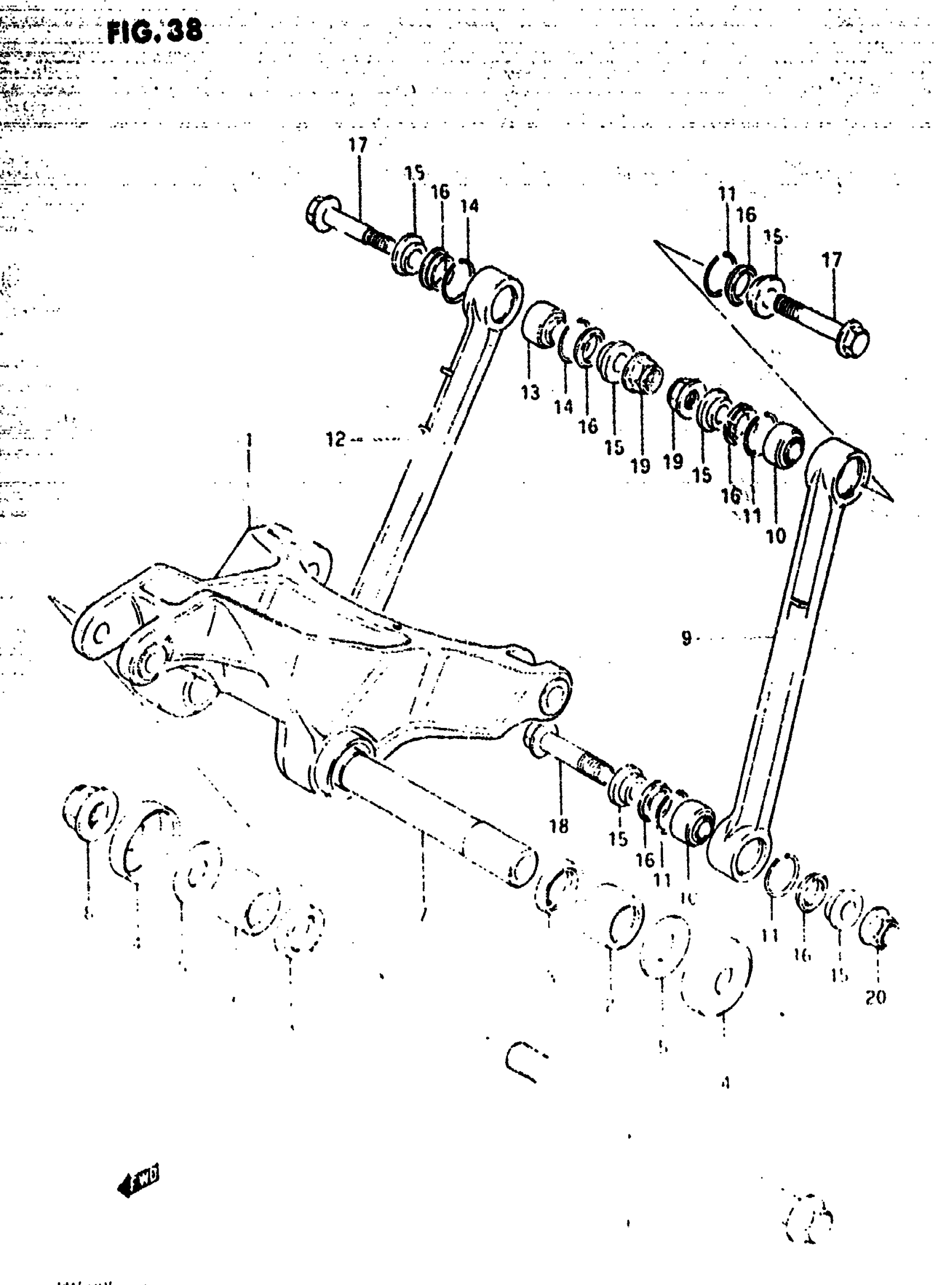

Suzuki RM500 (1984) CUSHION LEVER (MODEL E) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 This part replaces 62601-14870.

62601-14871

Unavailable

2

BEARING

09263-20053

$27.58

3

DUST SEAL, INNER

62624-14500

$6.01

4

DUST SEAL

61262-45002

$7.97

5

THRUST WASHER

08211-14343

$3.23

6

SHAFT

62621-14600

Unavailable

7

SPACER This part replaces 62623-14600.

62623-14601

Unavailable

8

NUT This part replaces 09159-14017.

08319-3114A

$9.66

9

ROD SET, CUSHION, LH | Includes Item(s) 10 - 11

62601-14880

Unavailable

10

BEARING

09269-10005

Unavailable

11

STOPPER RING

62657-14500

Unavailable

12

ROD SET, CUSHION, RH | Includes Item(s) 13 - 14

62601-14890

Unavailable

13

BEARING

09269-10005

Unavailable

14

STOPPER RING

62657-14500

Unavailable

15

SPACER This part replaces 62316-14501.

62316-14503

Unavailable

16

DUST SEAL

62647-14500

$2.92

17

BOLT, UPPER

62648-14200

Unavailable

18

BOLT, RR CUSHION ROD LWR

62658-14500

$6.55

19

NUT This part replaces 08319-31088.

08319-3108A

$2.32

20

NUT This part replaces 08319-31108.

08319-31107

$2.73
