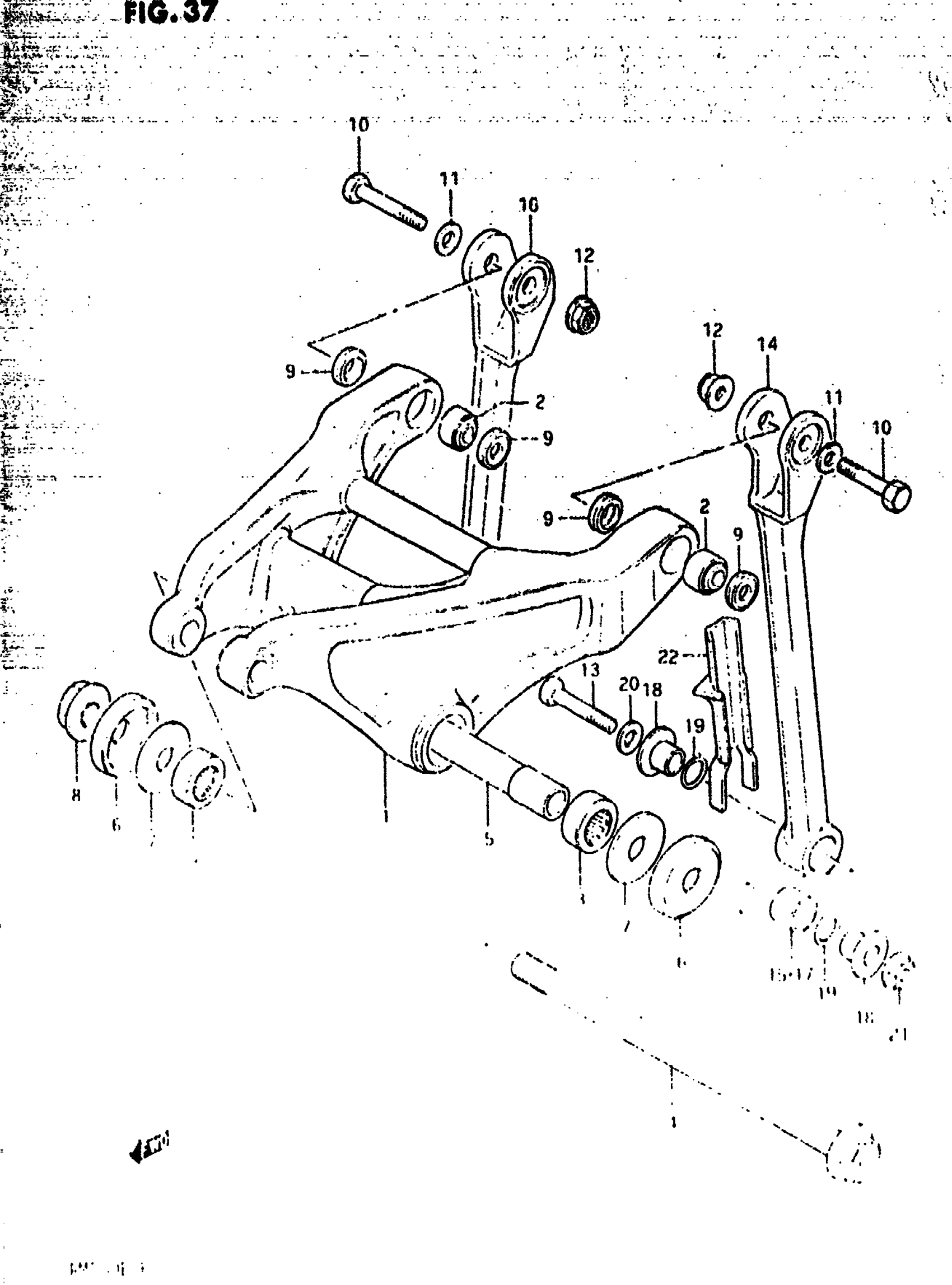

Suzuki RM500 (1984) CUSHION LEVER (MODEL D) Diagram

#

Description
Price

1

LEVER, CUSHION | Includes Item(s) 2 - 3

62600-14830

Unavailable

2

BEARING

09269-08001

Unavailable

3

BEARING

09263-17019

Unavailable

4

SHAFT This part replaces 62621-14104.

62621-14105

Unavailable

5

SPACER, RR CUSH This part replaces 62623-14204.

62623-16700

Unavailable

6

DUST SEAL

62624-14202

Unavailable

7

THRUST WASHER

09160-12045

$4.11

8

NUT This part replaces 08319-31128.

08319-3112A

$3.76

9

DUST SEAL

64339-14300

Unavailable

10

BOLT, UPPER

62313-14100

Unavailable

11

WASHER This part replaces 08322-11088.

08322-01087

$2.13

12

NUT This part replaces 08319-31088.

08319-3108A

$2.32

13

BOLT, LOWER

62313-14110

Unavailable

14

ROD, CUSHION LEVER, LH | Includes Item(s) 15

62600-14880

Unavailable

15

BUSH,RR CUSH RO This part replaces 62642-14110.

62642-13601

Unavailable

16

ROD, CUSHION LEVER, RH | Includes Item(s) 17

62600-14890

Unavailable

17

BUSH,RR CUSH RO This part replaces 62642-14110.

62642-13601

Unavailable

18

SPACER, LOWER

62316-14110

Unavailable

19

DUST SEAL, LOWER This part replaces 62647-14300.

62647-20400

Unavailable

20

WASHER This part replaces 08322-11088.

08322-01087

$2.13

21

NUT This part replaces 08319-31088.

08319-3108A

$2.32

22

PROTECTOR, CUSHION ROD, LH

62681-14110

Unavailable
