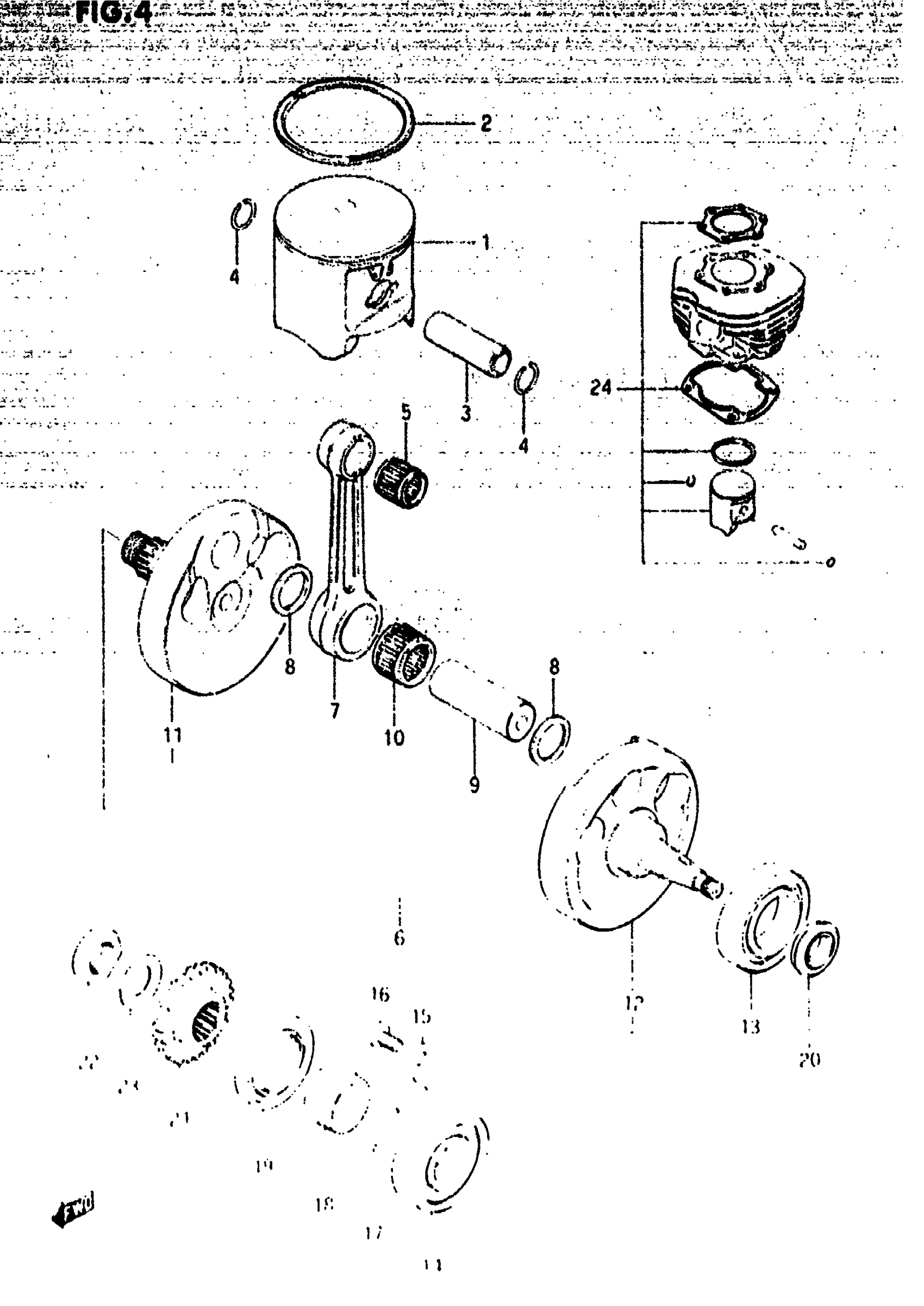

Suzuki RM500 (1984) CRANKSHAFT Diagram

#

Description
Price

1

PISTON (STD)

12110-14221

Unavailable

1

NO DESCRIPTION AVAILABLE | OPT This part replaces 12110-14221-025.

12103-14820-025

Unavailable

1

PISTON SET,OS:0 | OPT This part replaces 12110-14221-050.

12103-14820-050

Unavailable

2

RING, PISTON (STD)

12141-14240

Unavailable

2

RING, PISTON (OS:0.25) | OPT

12141-14240-025

Unavailable

2

RING, PISTON (OS:0.50) | OPT

12141-14240-050

Unavailable

3

PIN, PISTON This part replaces 12151-15002.

12151-13A00-0A0

$16.02

4

CIRCLIP

09381-18002

$1.67

5

BEARING

09263-18016

$19.93

6

CRANKSHAFT ASSY | Includes Item(s) 7 - 12

12200-14230

Unavailable

7

ROD, CONNECTING

12161-14220

Unavailable

8

WASHER

09160-26004

Unavailable

9

PIN, CRANK

12211-14220

Unavailable

10

BEARING

09263-26014

Unavailable

11

CRANKSHAFT, RH

12221-14230

Unavailable

12

CRANKSHAFT, LH

12261-14230

Unavailable

13

BEARING (35X72X17) | MODEL D This part replaces 09262-35010.

09262-35038

$46.10

13

BEARING (35X72X17) | MODEL E This part replaces 09262-35026.

09262-35038

$46.10

14

BEARING, RH (30x72x19) This part replaces 08113-63060.

09262-30077

$58.43

15

PLATE, BEARING RH

12541-14210

Unavailable

16

SCREW This part replaces 02112-06108.

02112-06107

$1.49

17

O RING (OD:2.4,ID:27.7)

09280-28005

$2.43

18

SPACER

12359-14220

Unavailable

19

OIL SEAL, RH

09289-37001

Unavailable

20

OIL SEAL, LH

09283-20034

$5.18

21

GEAR, PRIMARY DRIVE (N1:26)

21111-14210

Unavailable

22

NUT This part replaces 09140-20008.

09140-20013

$4.26

23

WASHER

09164-20003

$3.85

24

ENGINE TOP END KIT | OPT (STD)

12100-14880

Unavailable

24

ENGINE TOP END KIT | OPT (OS:0.25

12100-14880-025

Unavailable
