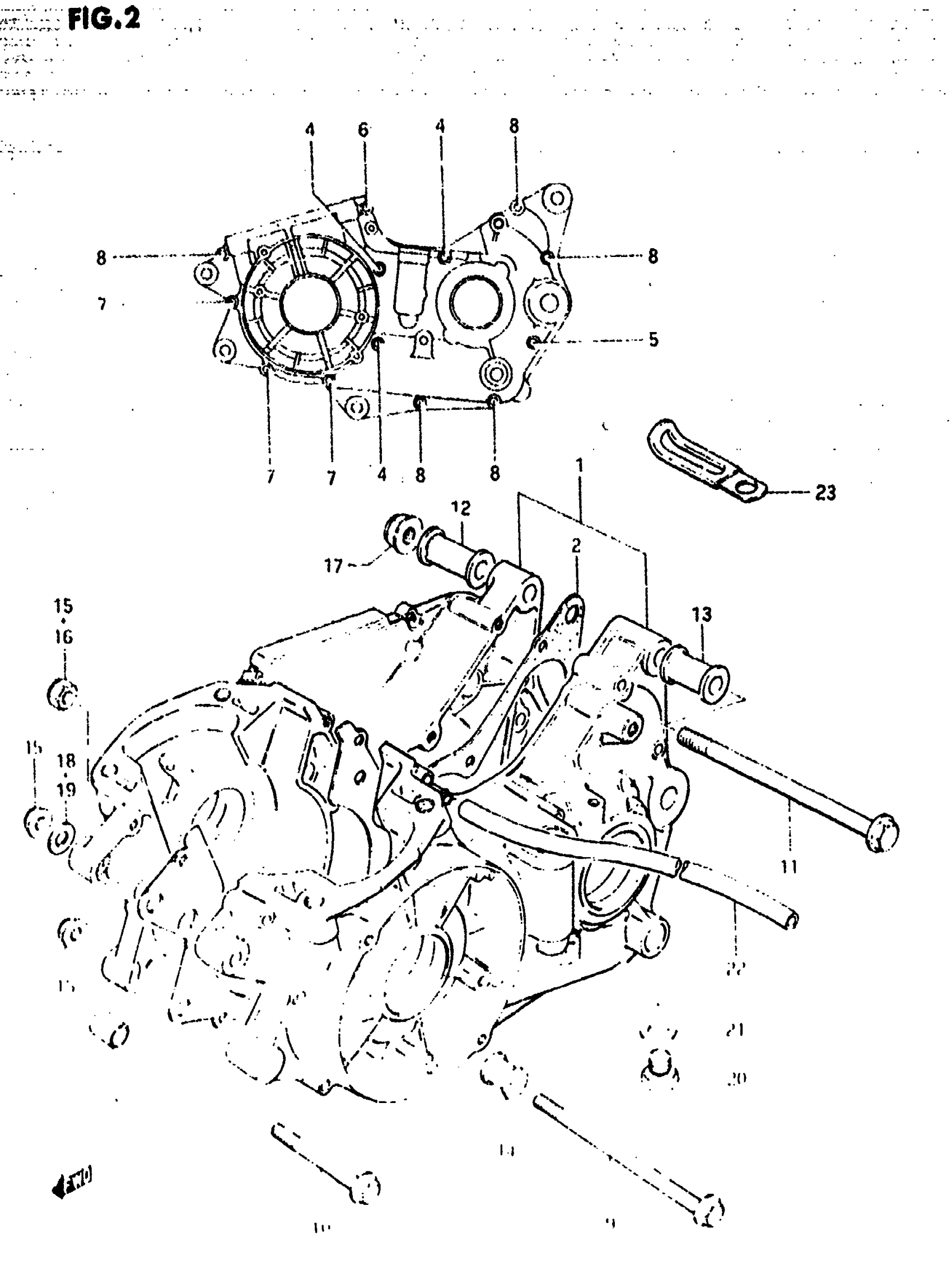

Suzuki RM500 (1984) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 4

11301-14820

Unavailable

2

GASKET,CRANKCAS This part replaces 11481-14230.

11481-14230-H17

Unavailable

7

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$1.99

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

8

SCREW This part replaces 02112-06358.

02112-06357

$1.78

4

SCREW This part replaces 02112-06658.

02112-06657

$2.62

9

BOLT (8x200) | Includes Item(s) 5

09100-08191

Unavailable

5

SCREW (6x55)

02112-06557

$2.53

10

BOLT (8x75)

09103-08063

Unavailable

11

BOLT (10X215) | Includes Item(s) 6 This part replaces 09103-10041.

09103-10041-A05

$10.40

6

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

12

SPACER (L:65)

11611-14210

Unavailable

13

SPACER (L:55) This part replaces 11611-14220.

11610-14A00

Unavailable

14

SPACER, ENGINE MOUNTING (L:28) This part replaces 11611-14230.

11610-14200

Unavailable

15

NUT | MODEL DMODEL E This part replaces 08319-31088.

08319-3108A

$2.32

16

NUT | MODEL D This part replaces 08319-21088.

08319-2108A

$2.12

17

NUT This part replaces 08319-31108.

08319-31107

$2.73

18

WASHER

09169-10011

Unavailable

19

WASHER

09169-10012

Unavailable

20

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

21

GASKET

09168-14004

$1.83

22

HOSE 4X7X600 This part replaces 09343-04046.

09352-40706-600

$5.11

23

CLAMP This part replaces 09404-08402.

09404-08420

$3.16
