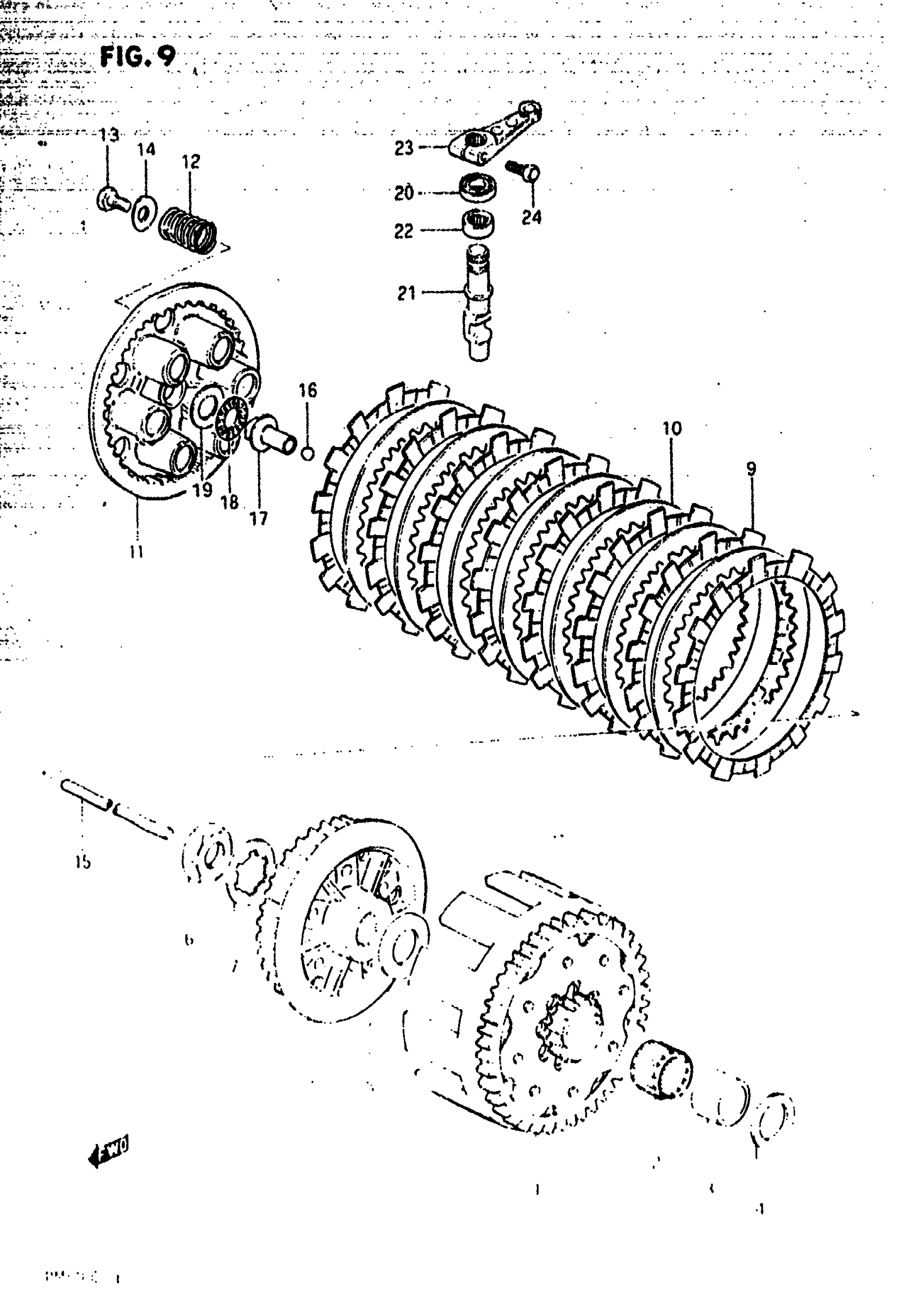

Suzuki RM500 (1984) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN | NT : 18/62

21200-14211

Unavailable

2

BEARING

09263-28002

Unavailable

3

SPACER

09180-22021

Unavailable

4

WASHER

08211-22403

$4.26

5

HUB, SLEEVE | MODEL D This part replaces 21411-14211.

21411-14212

Unavailable

5

HUB, SLEEVE | MODEL E

21411-14212

Unavailable

6

NUT

09140-22005

$3.87

7

WASHER

09167-22005

$2.11

8

WASHER

08211-22403

$4.26

9

PLATE, CLUTCH DRIVE NO.1 This part replaces 21441-40402.

21441-37400

$18.13

10

PLATE,CLUTCH DRIVEN (T:1.6) This part replaces 21451-45000.

21451-28C31

$11.81

11

DISK,CLUTCH PRE This part replaces 21462-45103.

21462-12C00

Unavailable

12

SPRING

09440-19007

$2.52

13

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

14

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89

15

ROD, PUSH

23111-14220

Unavailable

16

BALL

06111-06003

$1.49

17

PIECE, PUSH

23121-14300

Unavailable

18

BEARING

09263-15003

$8.29

19

WASHER, CLUTCH PUSH This part replaces 09160-15015.

09160-15045

$3.89

20

OIL SEAL

09285-12004

$6.24

21

CAMSHAFT, RELEASE This part replaces 23122-14311.

23122-14601

Unavailable

22

BEARING

09263-12014

$12.36

23

ARM, RELEASE

23271-14200

Unavailable

24

BOLT This part replaces 01107-06208.

01500-06207

$2.28
