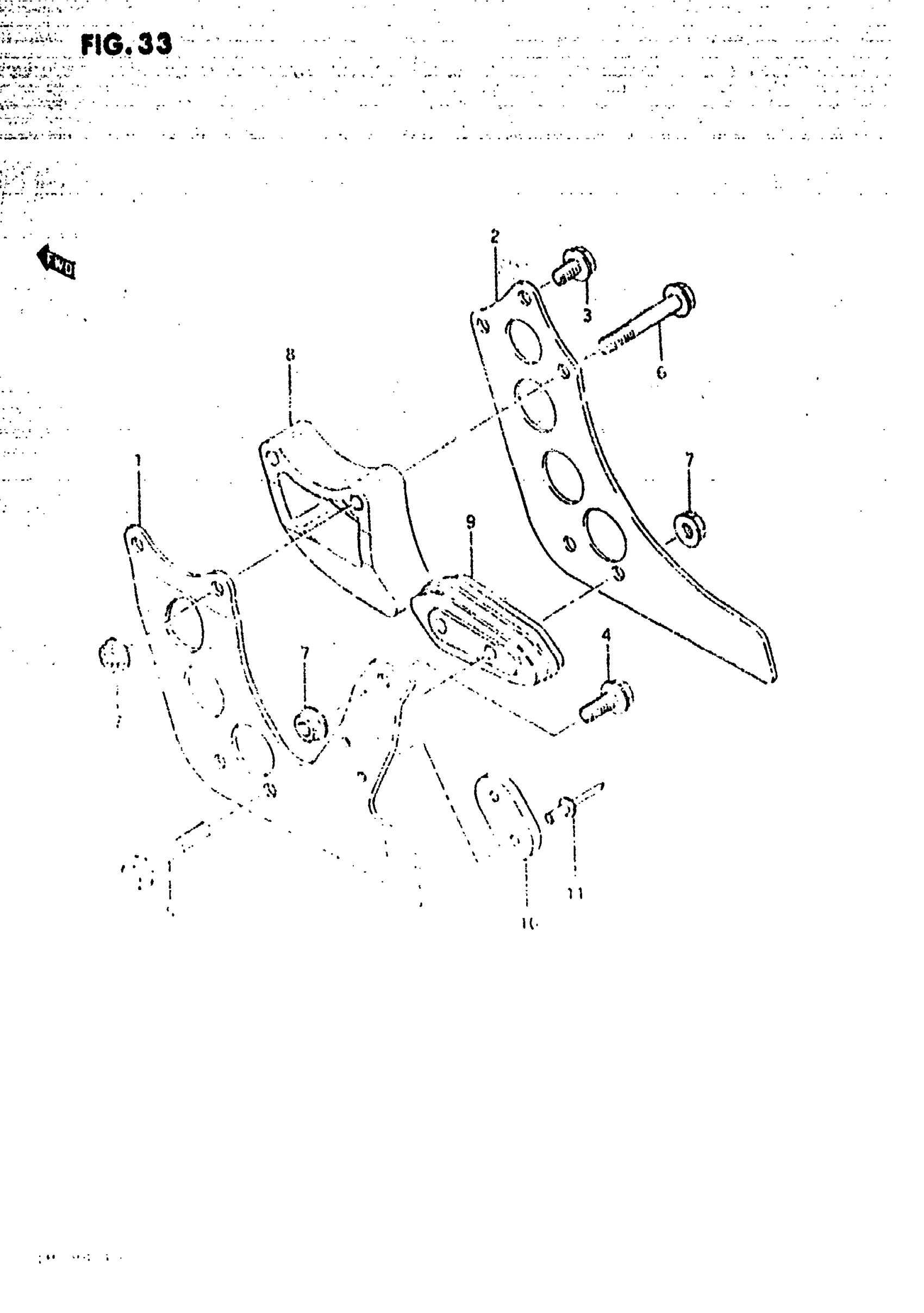

Suzuki RM500 (1984) CHAIN GUIDE (MODEL D) Diagram

#

Description

Price

1

PLATE CHAIN GUI This part replaces 61341-14200.

61341-14201

Unavailable

2

PLATE CHAIN GUI This part replaces 61342-14200.

61342-14201

Unavailable

3

BOLT This part replaces 01517-06128.

01550-06127

$2.30

4

BOLT This part replaces 01517-06168.

01550-06167

$2.30

5

BOLT This part replaces 01517-06408.

01550-06407

$2.69

6

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

$2.69

7

NUT This part replaces 08319-31068.

08319-31067

$2.03

8

DEFENSE, UPPER

61345-14100

Unavailable

9

DEFENSE

61348-14110

Unavailable

10

PAD

61349-40211

Unavailable

11

RIVET

09229-03005

Unavailable
