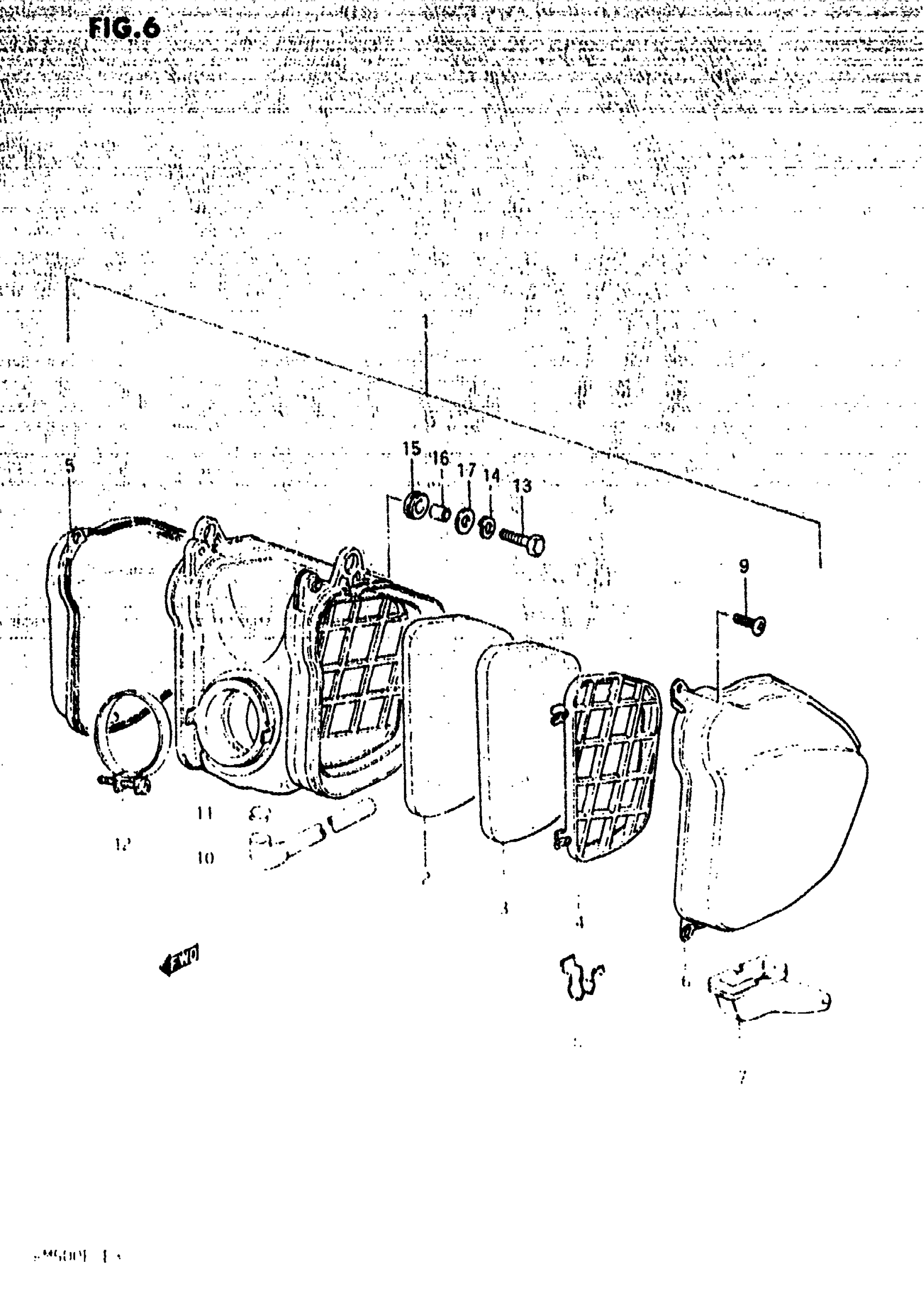

Suzuki RM500 (1984) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 12

13700-14210

Unavailable

2

FILTER

13781-14200

Unavailable

3

FILTER, OUTER

13786-14210

Unavailable

4

HOLDER, RH

13791-14210

Unavailable

4

HOLDER, LH

13792-14210

Unavailable

5

CAP, RH

13740-14210

Unavailable

6

CAP, LH

13750-14210

Unavailable

7

TUBE, DRAIN

13871-14210

Unavailable

8

STOPPER,TUBE

13877-14110

Unavailable

9

SCREW

02142-05167

$1.49

10

TUBE,DRAIN This part replaces 13870-00170.

13870-11459

$15.51

11

CLIP

09401-14301

$2.35

12

CLAMP

09402-68306

$4.69

13

BOLT This part replaces 01107-06208.

01500-06207

$2.28

14

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

15

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

16

SPACER (6.5X9X7) This part replaces 09180-07005.

09180-06259

$2.48

17

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89
