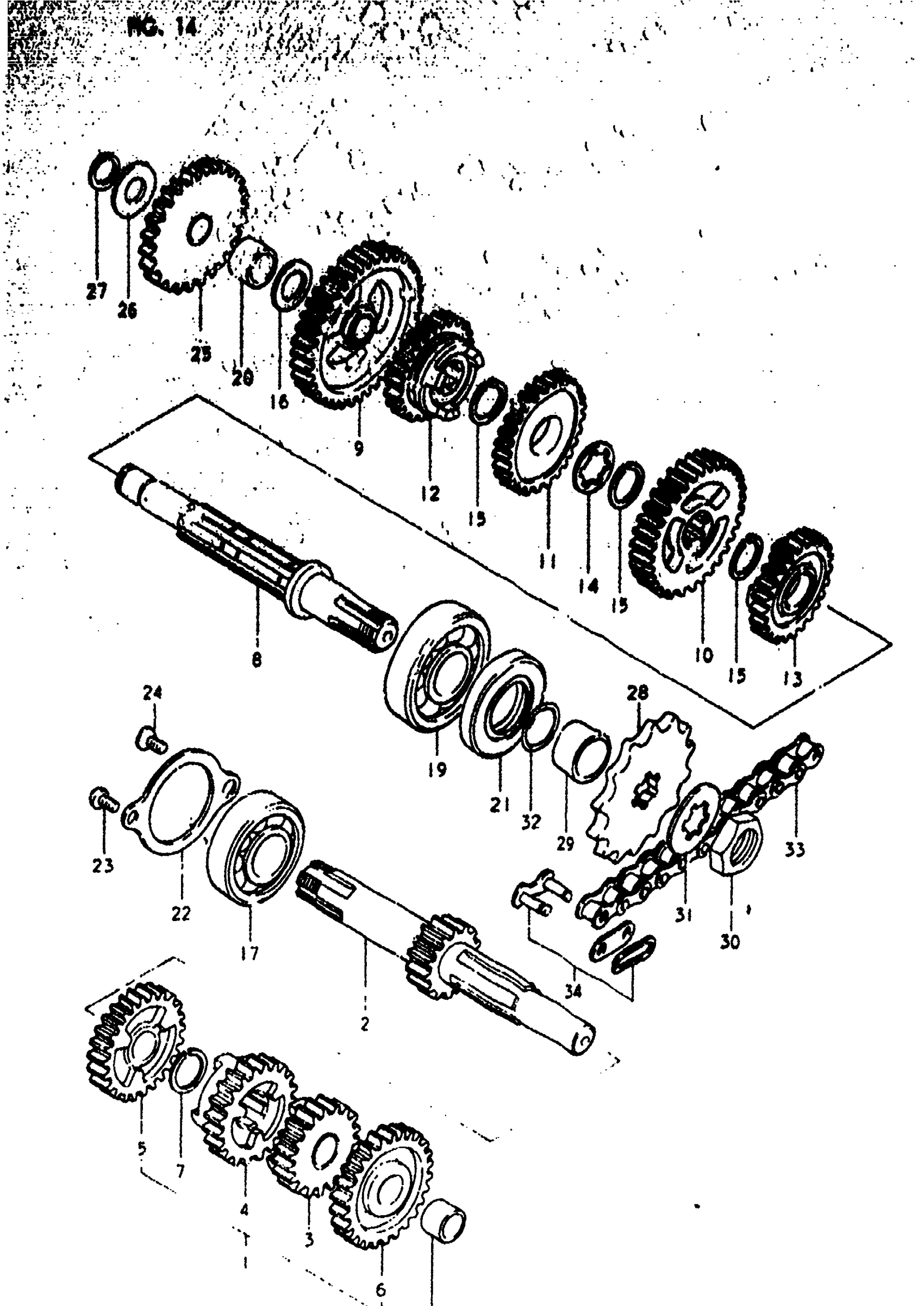

Suzuki RM50 (1980) TRANSMISSION (RM50N Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | N,T; Includes Item(s) 2 - 7 This part replaces 24120-46001.

24120-46002

Unavailable

2

COUNTERSHAFT (NT:15) | N,T

24121-46001

Unavailable

4

GEAR, 3RD DRIVE (NT:22) | N,T

24231-46001

Unavailable

3

GEAR, 2ND DRIVE (NT:19) | N,T

24220-46000

Unavailable

5

GEAR, 4TH DRIVE (NT:24) | N,T

24241-46000

Unavailable

6

GEAR, 5TH DRIVE (NT:26) | N,T This part replaces 24251-46000.

24251-46001

Unavailable

7

CIRCLIP | N,T

09380-17007

Unavailable

8

DRIVESHAFT | N,T

24131-46000

Unavailable

9

GEAR, 1ST DRIVEN (NT:35) | N,T

24310-46001

Unavailable

10

GEAR, 2ND DRIVEN (NT:32) | N,T

24321-46001

Unavailable

11

GEAR, 3RD DRIVEN (NT:29) | N,T

24331-46000

Unavailable

12

GEAR, 4TH DRIVEN 26) | N,T

24341-46000

Unavailable

13

GEAR, 5TH DRIVEN 24) | N,T

24351-46000

Unavailable

14

WASHER | N,T

09160-13006

Unavailable

15

CIRCLIP | N,T

09380-17007

Unavailable

16

WASHER | N,T

09167-17003

Unavailable

17

BEARING, DRIVE SHAFT RH | N,T This part replaces 09262-17008.

09262-17023

$16.75

18

BUSHING | N,T

09303-13001

Unavailable

19

BEARING | N,T

08113-63030

$23.65

20

BUSHING | N,T

09303-13001

Unavailable

21

OIL SEAL | N,T

09283-21003

$6.17

22

HOLDER, BEARING | N,T

24741-46000

Unavailable

23

SCREW | N,T This part replaces 02112-06108.

02112-06107

$1.49

24

SCREW | N,T This part replaces 02122-06108.

02122-0610A

$1.68

25

GEAR, KICK IDLE (NT:26) | N,TN,T This part replaces 26260-46000.

26260-46001

Unavailable

26

WASHER | N,T

08211-12261

$2.50

27

CIRCLIP | N,T This part replaces 08331-31128.

08331-3112A

$1.78

28

SPROCKET, ENGINE (NT:12) | N,T

27511-04000

Unavailable

28

SPROCKET, ENGIN | N,T This part replaces 27511-01700.

27511-01701

$18.20

28

SPROCKET, ENGINE (NT:14) OPT | N,T

27511-19700

Unavailable

28

SPROCKET, ENGINE (NT:15) OPT | N,T

27511-26000

Unavailable

29

SPACER | N,T

09180-17008

$8.58

30

NUT | N,T

09140-16002

$3.16

31

WASHER | N,T

09167-16001

$1.87

32

O RING | N,T

09280-17001

$1.49

33

CHAIN ASSY,DRIV | N,TN,T; Includes Item(s) 34 - 34 This part replaces 27600-05011.

27600-01012-130

Unavailable

34

JOINT (DID) | N,T This part replaces 27620-01011.

27620-01012

$6.87

34

JOINT (RK) | N,T This part replaces 27620-01022.

27620-01023

Unavailable
