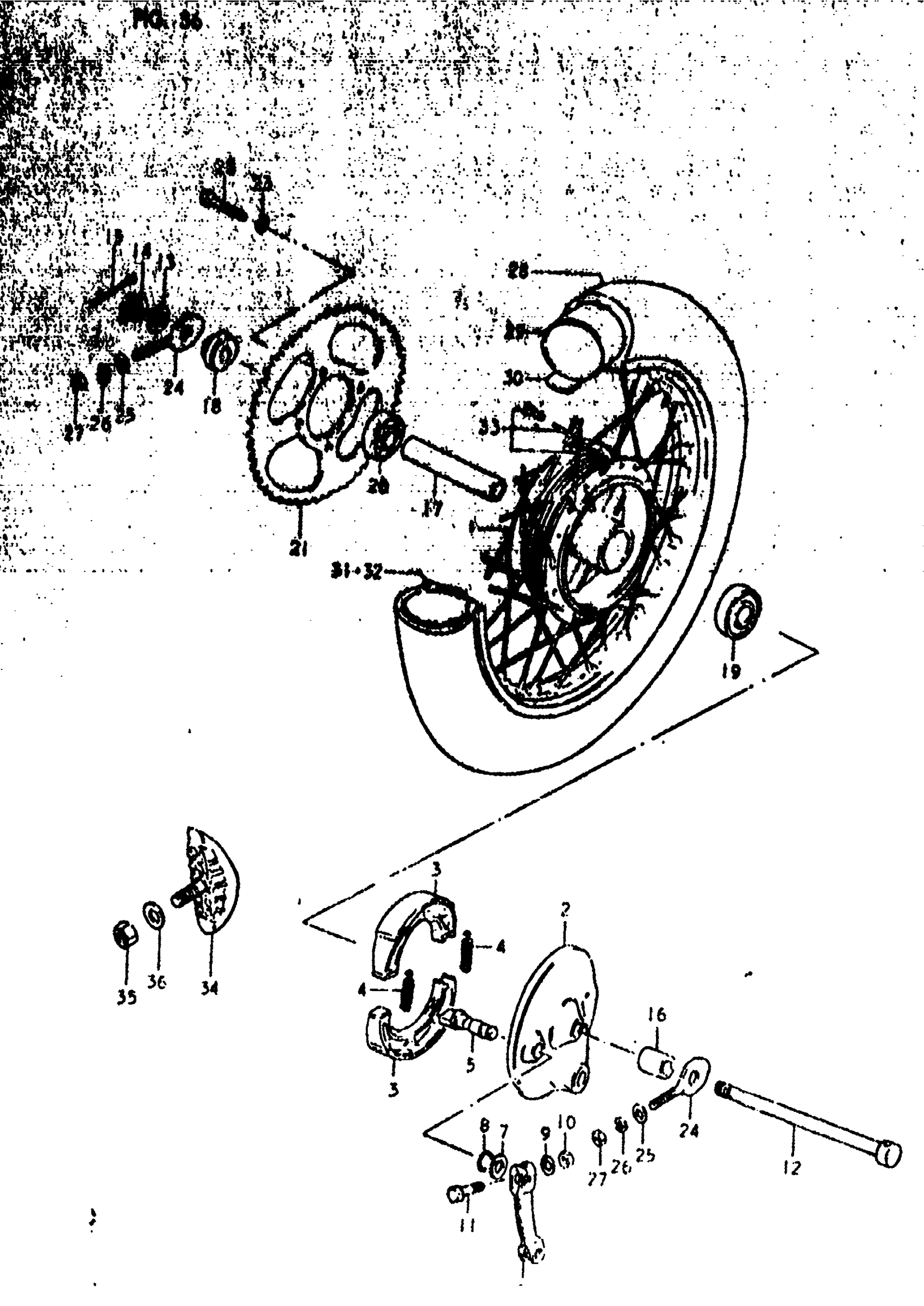

Suzuki RM50 (1980) REAR WHEEL Diagram

#

Description
Price

1

DRUM, REAR HUB | C This part replaces 64110-46421.

64100-46821

Unavailable

1

DRUM, REAR HUB | N This part replaces 64100-46820.

64100-46821

Unavailable

1

DRUM, REAR HUB | T

64100-46821

Unavailable

2

PANEL, REAR BRAKE ANCHOR | C,N,T This part replaces 64210-46022.

64210-46024

Unavailable

3

SHOE/SPRING SET | C; TO 54410-01005 This part replaces 54410-43000.

54400-35860

$36.32

3

SHOE/SPRING SET | N,T This part replaces 54410-01005.

54400-35860

$36.32

4

SPRING | C,N,T This part replaces 09443-07001.

09443-07025

$2.08

5

CAM, BRAKE | C,N; TO 54441-29302 This part replaces 54441-29301.

54441-29305

$20.02

5

CAM, BRAKE | T This part replaces 54441-29302.

54441-29305

$20.02

6

LEVER,REAR BRAK | C,N,T This part replaces 64451-46100.

64451-46100-A05

$18.02

7

WASHER | C,N,T This part replaces 09160-14001.

09160-14055

$2.39

8

O RING (D:2.5,ID:13.8) | C,N,T This part replaces 09280-14003.

09280-14011

$4.77

9

WASHER | C,N,T This part replaces 08322-21068.

08322-01067

$2.13

10

.NUT | C,N,T This part replaces 08310-11068.

08310-00067

$2.13

11

BOLT, BRAKE CAM LEVER (6x31) | C,N,T

09100-06078

$2.38

12

AXLE,FRONT | C,N,T This part replaces 64711-43000.

64711-43001

$41.97

13

WASHER | CN,T This part replaces 08322-11128.

08322-01127

$1.84

14

NUT | C,N,T This part replaces 08314-31128.

08314-3112A

$2.41

15

PIN | C,N,T This part replaces 04111-30308.

04111-3030A

$1.49

16

SPACER,12.1X22X | C,N,T This part replaces 09180-12077.

09180-12077-XC0

Unavailable

17

SPACER, REAR HUB BEARING | C,N,T

09180-12078

$11.28

18

SPACER, REAR AXLE LH | C,N,T

64750-46000

$9.23

19

B1 12X37X12 BEA | C,N; TO 08143-63010 This part replaces 08143-63010.

08143-6301B

$19.20

19

B1 12X37X12 BEA | T This part replaces 08143-63017.

08143-6301B

$19.20

20

BEARING | C,N; TO 08123-63017 This part replaces 08123-63010.

08123-6301B

$14.10

20

BEARING | T This part replaces 08123-63017.

08123-6301B

$14.10

21

SPROCKET, REAR (NT:42) | C,N,T

64511-46600

Unavailable

22

BOLT | C,N,T This part replaces 09100-10007.

09100-10287

$3.48

23

LOCK WASHER | C,N,T This part replaces 08321-21108.

08321-01107

$1.84

24

ADJUSTER, CHAIN | C,N,T

61411-01002

$7.37

25

WASHER | C,N,T This part replaces 08322-21068.

08322-01067

$2.13

26

LOCK WASHER | C,N,T This part replaces 08321-21068.

08321-01067

$2.13

27

.NUT | C,N,T This part replaces 08310-11068.

08310-00067

$2.13

28

TIRE, REAR (3.00-12) IRC | C This part replaces 65100-46410.

65100-46470

$99.33

28

TIRE, REAR (3.00-12) IRC | N,T This part replaces 65100-46420.

65100-46470

$99.33

29

TUBE, INNER (3.00-12) | C,N,T

65200-46410

$27.63

30

INNER TUBE PROT | C,N,T This part replaces 65261-46410.

65261-46420

$3.43

31

RIM, WHEEL | C

65311-46420

$126.33

32

RIM, WHEEL | N,T This part replaces 65311-46430.

65311-46420

$126.33

33

SPOKE SET, REAR WHEEL | C,N,T This part replaces 65300-46810.

65320-46430

$35.94

34

STOPPER, BEAD | N This part replaces 65270-46900.

65270-43D00

$58.75

34

STOPPER, BEAD | T This part replaces 65270-46910.

65270-43D00

$58.75

35

NUT | N,T This part replaces 08310-12088.

08310-00087

$2.13

36

WASHER | N,T This part replaces 08322-11088.

08322-01087

$2.13
