1980 Suzuki RM50 Rear Swinging ARM Diagram

← All diagrams

Find the part on the Rear Swinging ARM diagram for your 1980 Suzuki RM50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

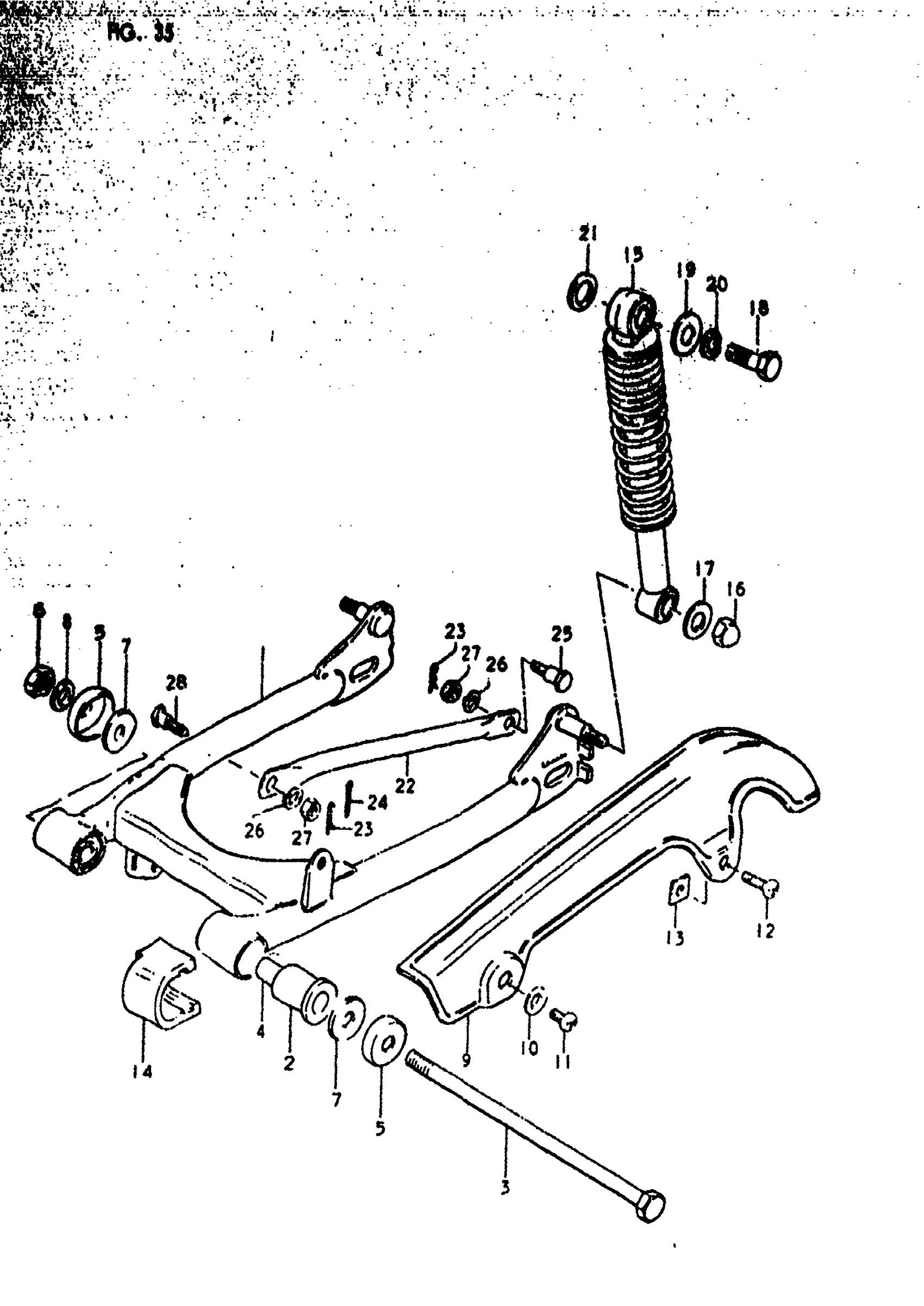

1980 Suzuki RM50 Rear Swinging ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWINGING ARM, REAR | N This part replaces 61101-46810-08C.

61101-46811-08C

1
Out of stock

1

SWINGING ARM, REAR | T; Includes Item(s) 2

61101-46811-08C

1
Out of stock

2

BUSHING | N,T

09307-18003

2
Out of stock

3

SHAFT, PIVOT | N,T

61211-25300

1
Out of stock

4

SPACER | N,T

61251-46910

2
Out of stock

5

COVER, DUST SEAL | N,T

61262-46910

4
Out of stock

6

NUT | N,T This part replaces 08319-21108.

09159-10027

1
Out of stock

7

THRUST WASHER | NT

09160-10052

1
Out of stock

8

WASHER | N,T This part replaces 08322-21108.

08322-01107

1
Out of stock

9

CASE, CHAIN | N,T

61311-46601-019

1
Out of stock

10

WASHER, FRONT | N,T

09169-06010

1
Out of stock

11

SCREW | N,T This part replaces 02112-06088.

02112-06087

1
Out of stock

12

SCREW | N,T This part replaces 02112-06128.

02112-06127

1
Out of stock

13

NUT | N,T

61316-43000

1
Out of stock

14

BUFFER | N,T This part replaces 61273-46630.

61273-46631

1
Out of stock

15

NO DESCRIPTION AVAILABLE | N,T This part replaces 62100-46620.

62100-46440

2
Out of stock

16

NUT | N,T This part replaces 08313-11108.

08313-10107

2
Out of stock

17

WASHER, LOWER (10.5X24X2.3) | N,T This part replaces 09160-10001.

09160-10093

2
Out of stock

18

BOLT | N,T This part replaces 01107-06128.

01500-06127

2
Out of stock

19

WASHER, FRONT | N,T This part replaces 09160-06004.

09160-06134

2
Out of stock

20

2

$2.28

In stock

21

WASHER (12.5X26X1.6) | N,T This part replaces 09160-12006.

09160-12089

2
Out of stock

22

TORQUE LINK, REAR (GOLD) | N,T This part replaces 64311-46610.

64311-46600-08C

1
Out of stock

23

CLIP | N This part replaces 09385-10001.

09385-10005

2
Out of stock

24

PIN | T This part replaces 04111-16158.

04111-1620A

2
Out of stock

25

BOLT, REAR BRAKE PANEL | N,T

09111-08013

1
Out of stock

26

2

$2.28

In stock

27

NUT | N,T

09140-08008

2
Out of stock

28

BOLT, TORQUE LINK FRONT | N,T

09111-08015

1
Out of stock
