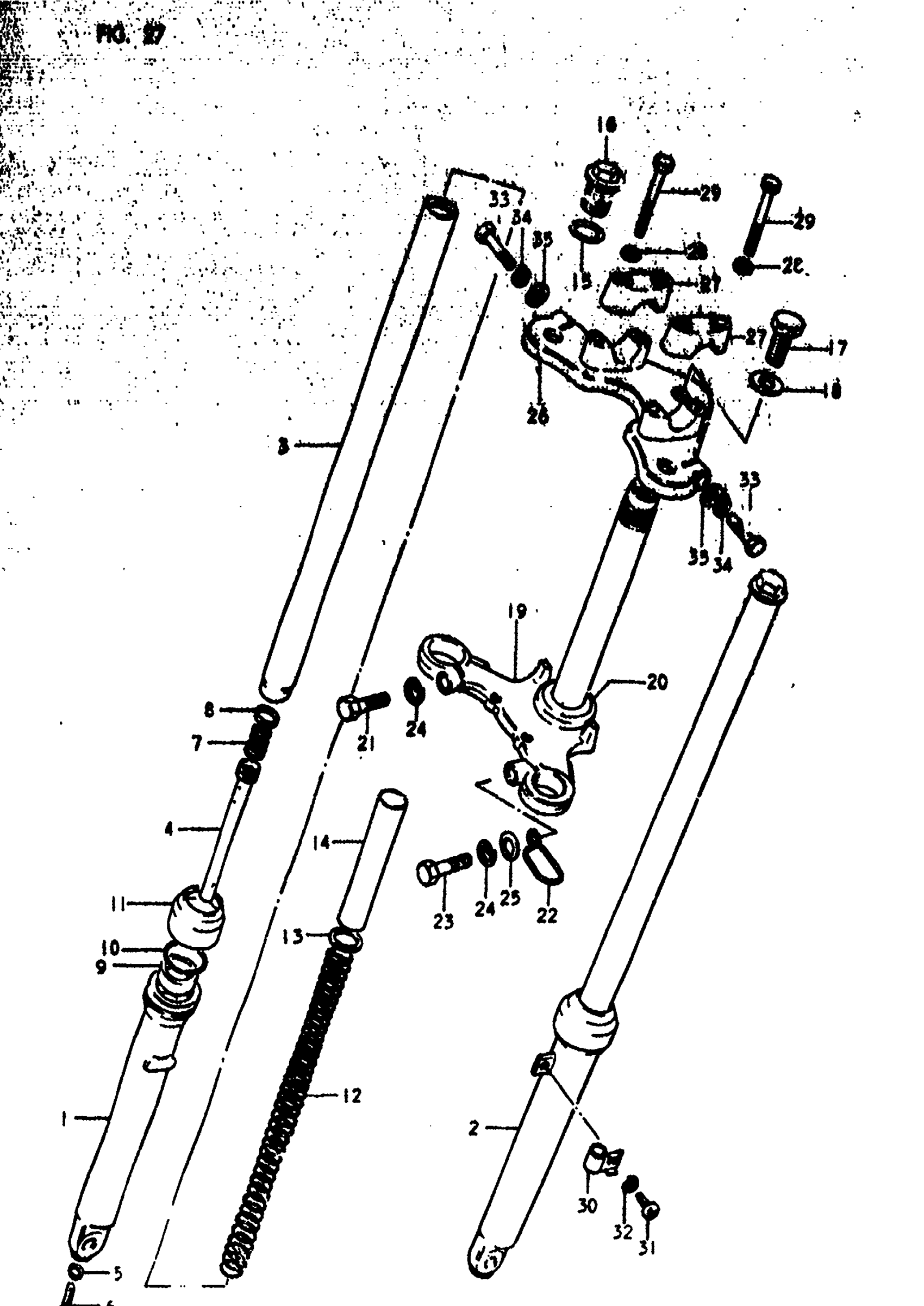

Suzuki RM50 (1980) FRONT FORK (RM50N Diagram

#

Description
Price

0

FRONT FORK ASSY | N,T; FROM 51100-46680; Includes Item(s) 1 - 35

51100-46680-08C

Unavailable

1

TUBE, OUTER RH | N,T This part replaces 51131-46680.

51131-46684

Unavailable

2

TUBE, OUTER LH | N,T This part replaces 51141-46680.

51141-46684

Unavailable

3

TUBE, INNER | N,T

51110-46400

Unavailable

4

PIPE SEAT | N,T

51146-46680

Unavailable

5

O RING | N,T This part replaces 51148-31030.

51148-36011

$3.41

6

BOLT | N,T

51147-48130

$4.15

7

SPRING | N,T

51177-46100

Unavailable

8

RING, PLATON | N,T

51196-46100

$9.50

9

OIL SEAL | N,T This part replaces 51153-46100.

51153-03400

$13.35

10

RING, OIL SEAL STOPPER | N,T This part replaces 51156-46100.

51156-48130

$6.00

11

SEAL,DUST | N,T This part replaces 51571-46100.

51571-46101

$5.54

12

SPRING | N,T

51171-46680

Unavailable

13

JOINT, SPRING | N,T

51192-46100

$5.10

14

SPACER, SPRING | N,T

51176-46100

Unavailable

15

O RING (D:2.4,ID:17.8) | N,T This part replaces 51181-46190.

09280-18004

$4.81

16

BOLT | N,T

51351-46680

Unavailable

17

BOLT | N,T

51352-46030

$10.35

18

WASHER | N,T

51356-46030

Unavailable

19

STEM, STEERING | N,T; FROM 51410-46680

51410-46680-08C

Unavailable

20

RACE, OUTER LOWER | N,T

51621-33001

$18.33

21

BOLT | N,T This part replaces 01107-10308.

01500-1030A

$3.00

22

CLIP | N,T

51455-46030

Unavailable

23

BOLT, HANDLE HOLDER | N,T This part replaces 01107-10358.

01500-1035B

$4.03

24

LOCK WASHER | N,T This part replaces 08321-21108.

08321-01107

$1.89

25

WASHER | N,T This part replaces 08322-11108.

08322-01107

$1.95

26

STEM HEAD, STEERING | N,T

51311-46680-08C

Unavailable

27

HOLDER, HANDLE | N,T

56211-46680-08C

Unavailable

28

.LOCK WASHER | N,T This part replaces 08321-21088.

08321-01087

$1.89

29

BOLT | N,T This part replaces 01107-08358.

01500-0835B

$2.82

30

CLIP | N,T This part replaces 51452-46030.

51452-46040

$7.43

31

SCREW | N,T This part replaces 02112-04128.

02112-0412A

$1.27

32

LOCK WASHER | N,T This part replaces 08321-21048.

08321-0104A

$1.92

33

BOLT | N,T This part replaces 01107-08408.

01500-0840A

$2.73

34

.LOCK WASHER | N,T This part replaces 08321-21088.

08321-01087

$1.89

35

WASHER | N,T This part replaces 08322-21088.

08322-01087

$1.92
