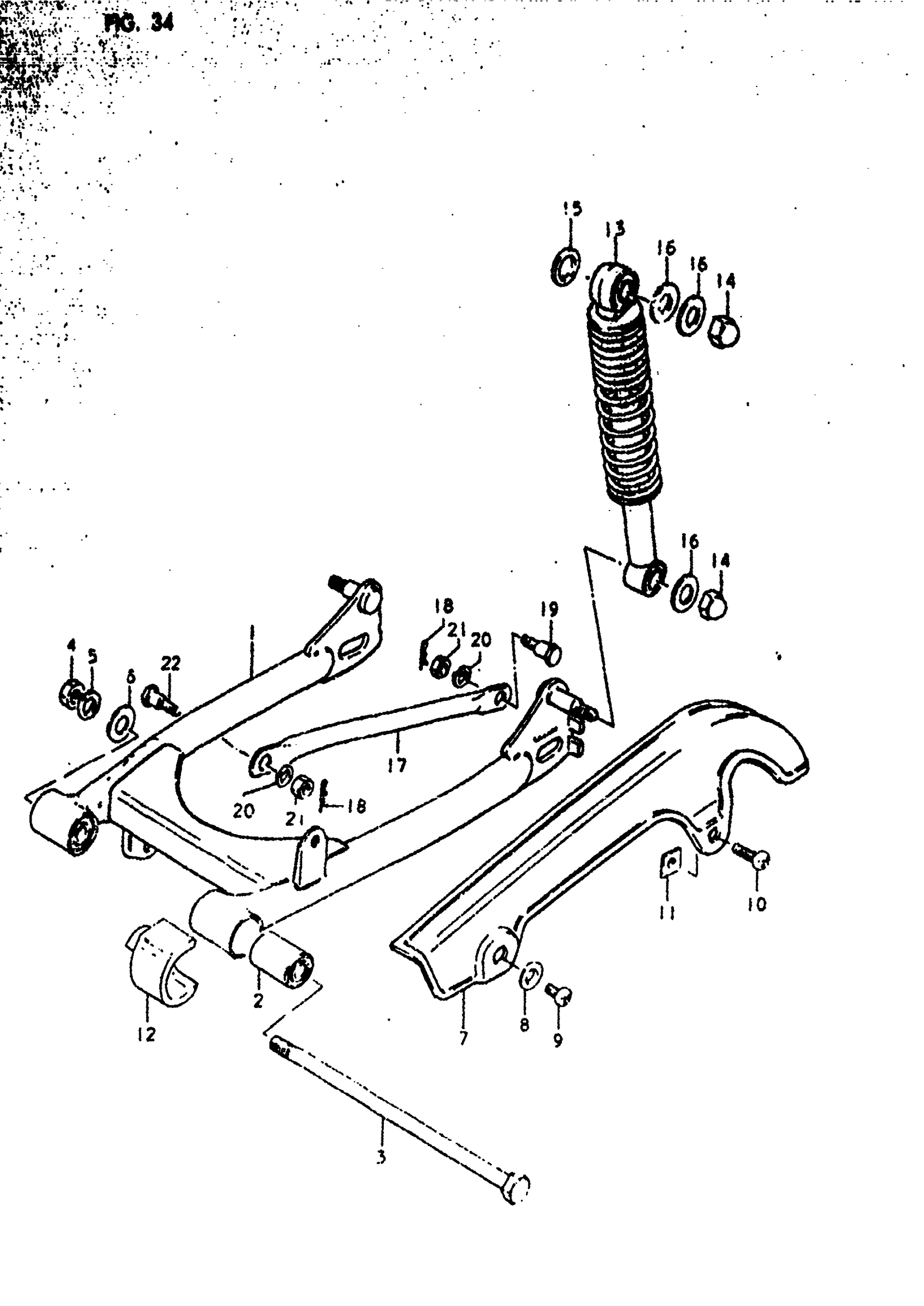

Suzuki RM50 (1980) REAR SWINGING ARM (RM50C) Diagram

#

Description
Price

1

SWINGING ARM, REAR | Includes Item(s) 2

61100-46870-019

Unavailable

2

BUSHING

09319-10024

$11.28

3

SHAFT,RR SWGARM This part replaces 61211-46000.

61211-4600V

$21.65

4

NUT This part replaces 08310-12108.

08310-00107

$2.19

5

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

6

WASHER This part replaces 08322-21108.

08322-01107

$2.15

7

CASE, CHAIN This part replaces 61311-46600-019.

61311-46601-019

Unavailable

8

WASHER, FRONT

09169-06010

$2.60

9

SCREW This part replaces 02112-06088.

02112-06087

$1.49

10

SCREW This part replaces 02112-06128.

02112-06127

$1.84

11

NUT

61316-43000

Unavailable

12

BUFFER CHAIN DE This part replaces 61273-46000.

61273-46001

$20.84

13

SHOCK ABSORBER ASSY, REAR

62100-46600

Unavailable

14

NUT This part replaces 08313-11108.

08313-10107

$2.50

15

WASHER This part replaces 08322-11128.

08322-01127

$1.84

16

WASHER, LOWER (10.5X24X2.3) | 10.5x24x2.3 This part replaces 09160-10001.

09160-10093

$2.35

17

NO DESCRIPTION AVAILABLE This part replaces 64311-46600.

64311-46600-019

Unavailable

18

CLIP This part replaces 09385-10001.

09385-10005

$1.56

19

BOLT, REAR BRAKE PANEL

09111-08013

$3.04

20

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

21

NUT

09140-08008

$1.49

22

BOLT, TORQUE LINK FRONT

09111-08015

$3.16
