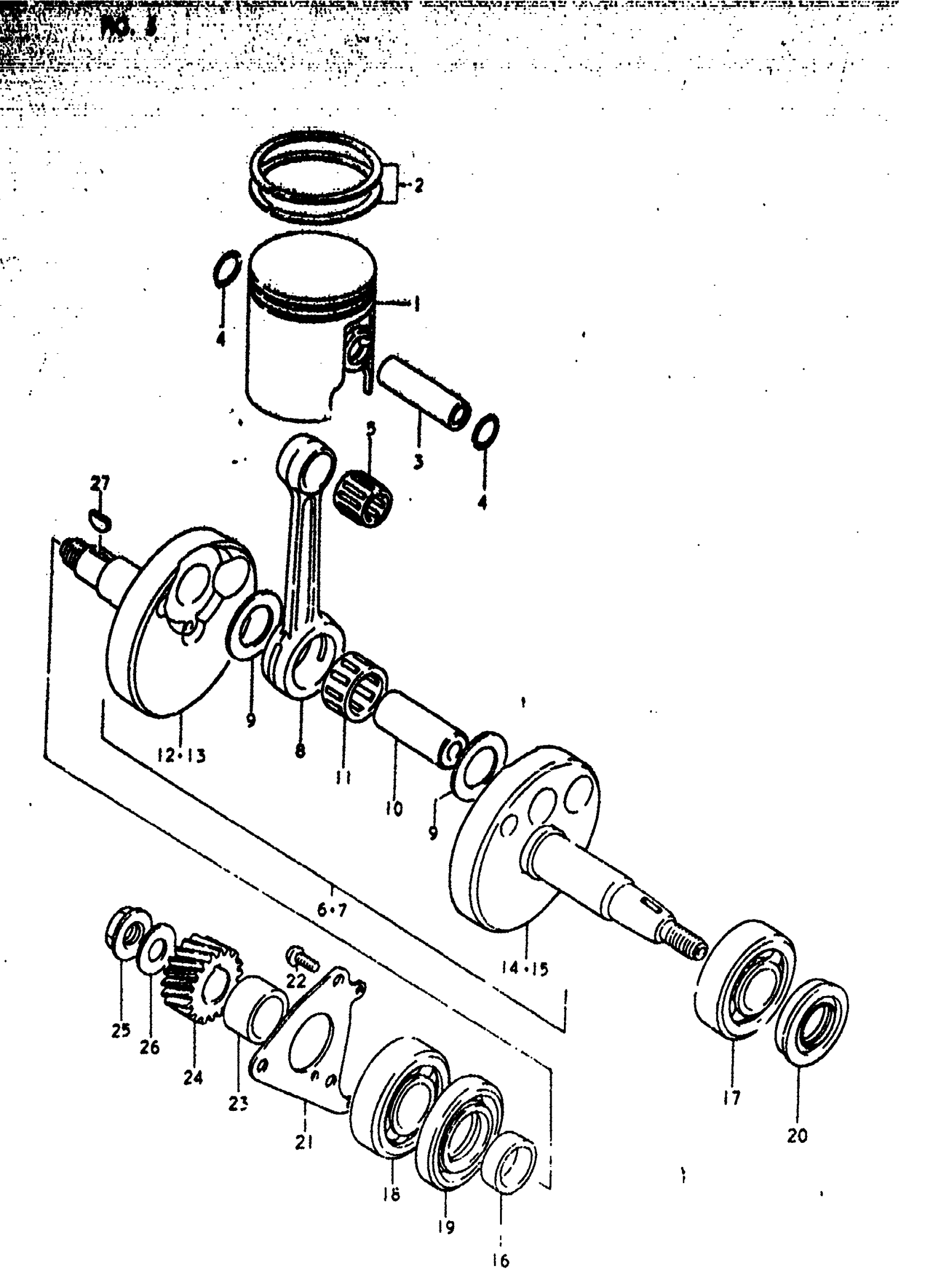

Suzuki RM50 (1980) PISTON - CRANKSHAFT Diagram

#

Description
Price

1

PISTON | C,N,T This part replaces 12110-46104.

12110-46130-0F0

Unavailable

1

NO DESCRIPTION AVAILABLE | C,N,T This part replaces 12110-46104-050.

12100-46130-050

Unavailable

1

NO DESCRIPTION AVAILABLE | C,N,T This part replaces 12110-46104-100.

12100-46130-100

Unavailable

2

RING SET PISTON | C,N,T This part replaces 12140-46110.

12140-46130

Unavailable

2

RING SET, PISTON (OS:0.5) | C,N,T

12140-46110-050

$28.25

2

RING SET, PISTON (OS:1.0) | C,N,T

12140-46110-100

$28.38

3

PIN, PISTON | C,N,T This part replaces 12151-02000.

12151-04700

$7.22

4

SNAP RING | C,N,T

09381-12001

$1.49

5

BEARING (12X16X16) | C,N,T This part replaces 09263-12003.

09263-12023

$10.19

6

CRANKSHAFT ASSY | C This part replaces 12200-46810.

12200-46600

Unavailable

7

CRANKSHAFT ASSY | N,T; Includes Item(s) 8 - 16

12200-46600

Unavailable

8

CONNECTING ROD | C,N,T This part replaces 12161-35000.

12161-04710

$82.35

9

WASHER | N,T

09160-16021

$4.80

10

PIN, CRANK | C,N This part replaces 12211-46101.

12211-46010

Unavailable

10

PIN, CRANK | T

12211-46010

Unavailable

11

BEARING, 16X22X11.8 | C,N,T This part replaces 09263-16014.

09263-16034

$19.20

12

CRANKSHAFT, RH | C

12221-46100

Unavailable

13

CRANKSHAFT, RH | N,T

12221-46600

Unavailable

14

CRANKSHAFT, LH | C

12261-46100

Unavailable

15

CRANKSHAFT, LH | N,T

12261-46600

Unavailable

16

SPACER | C,N,T

09180-20021

$9.93

17

BEARING, DRIVE SHAFT LH | C,N,T This part replaces 09262-20019.

09262-20069

$23.28

18

BEARING, RH (20X47X14) | C,N,T This part replaces 09262-20045.

09262-20064

Unavailable

19

OIL SEAL, LH | C This part replaces 09283-26012.

09283-26015

$6.17

19

OIL SEAL, LH | N,T This part replaces 09283-26013.

09283-26015

$6.17

20

OIL SEAL, RH | C,N,T This part replaces 09283-20011.

09283-20034

$5.18

21

RETAINER, BEARING RH | C,N,T

12541-46001

$8.42

22

SCREW | C,N,T This part replaces 02112-06128.

02112-06127

$1.84

23

SPACER | C,N,T

09180-20059

$7.55

24

GEAR, PRIMARY DRIVE (NT:19) | C,N,T

21111-46000

Unavailable

25

NUT | C,N,T

09159-12005

$3.93

26

WASHER | C,N,T

09164-12016

Unavailable

27

KEY | C,N,T

08341-31039

$1.89
