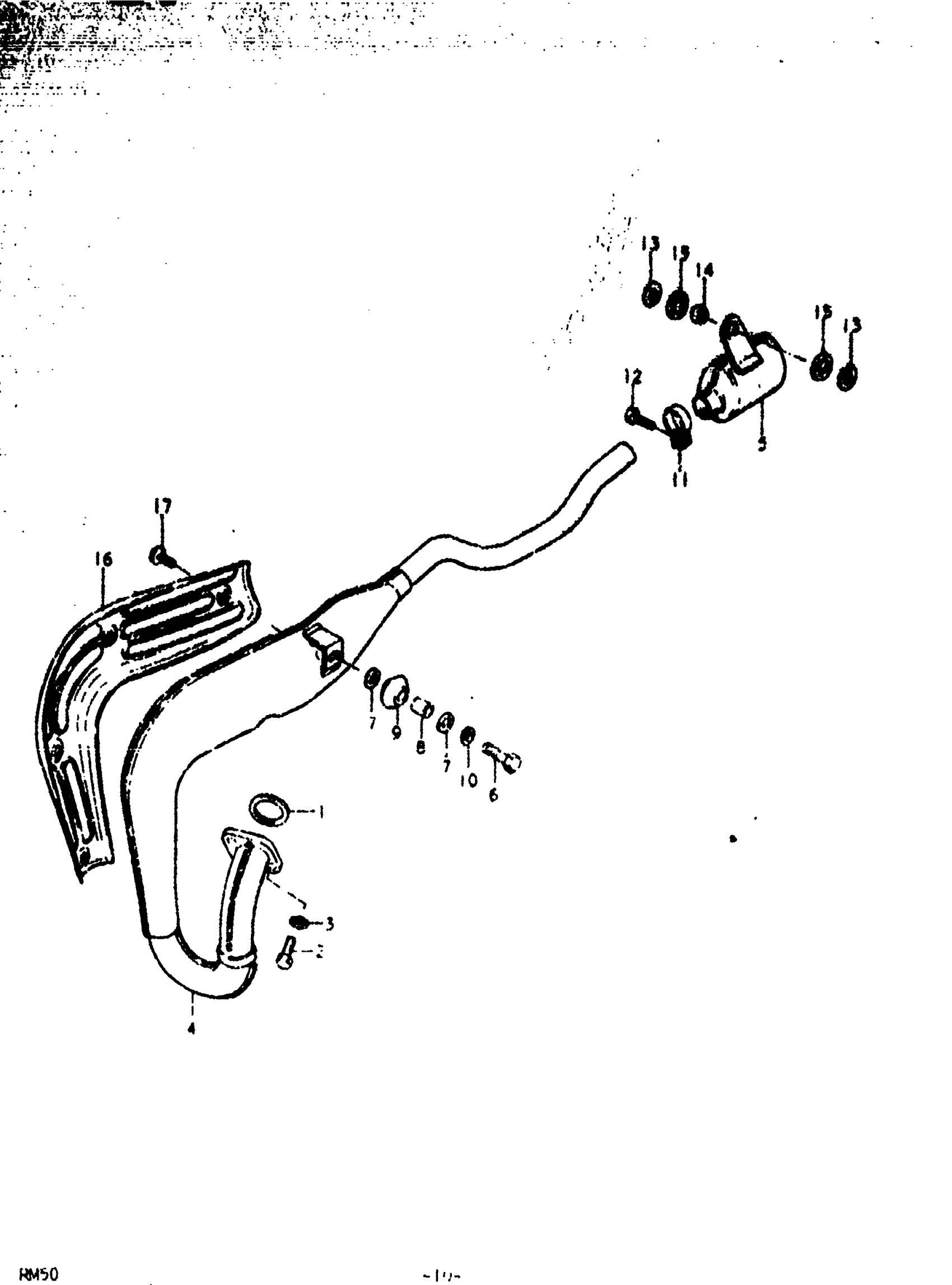

Suzuki RM50 (1980) MUFFLER (RM50C) Diagram

#

Description
Price

1

.GASKET,EXHAUST This part replaces 14181-05010.

14181-18C00

$7.22

2

BOLT This part replaces 01107-06208.

01500-06207

$2.28

3

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

4

MUFFLER, 1ST

14310-46610

Unavailable

5

NO DESCRIPTION AVAILABLE This part replaces 14330-46610.

14330-46610-H01

Unavailable

6

BOLT This part replaces 01107-08308.

01500-08307

$3.04

7

WASHER (8.5X22X2) This part replaces 09160-08007.

09160-08127

$2.12

8

SPACER,8.5X12X1 This part replaces 09180-08048.

09180-08302

$2.19

9

DAMPER,MUFFLER, This part replaces 14772-30500.

14772-30501

$3.03

10

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

11

CLAMP

09402-25601

Unavailable

12

BOLT This part replaces 09128-06006.

09128-06057

$1.65

13

WASHER (8.5X26X1.6) This part replaces 09160-08005.

09160-08134

$2.03

14

SPACER, TAIL COVER RR RR This part replaces 09180-08050.

09180-08199

$2.12

15

CUSHION This part replaces 09320-14006.

14761-03450

$1.80

16

COVER, MUFFLER

14781-46610

Unavailable

17

SCREW This part replaces 02112-06088.

02112-06087

$1.49
