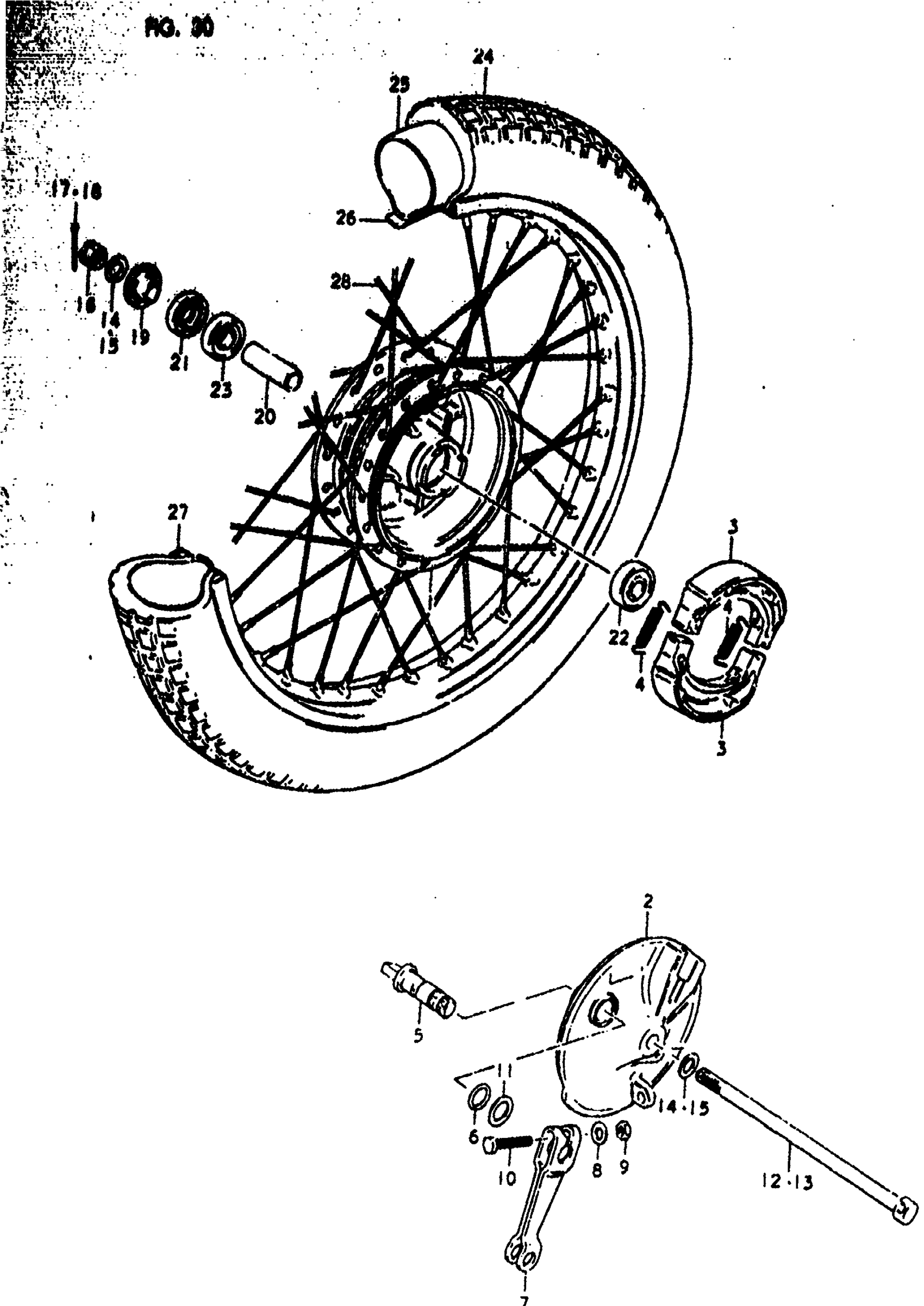

Suzuki RM50 (1980) FRONT WHEEL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | C,N,T This part replaces 54110-46021.

54110-46002

Unavailable

2

PANEL, FRONT HUB | C,N; FROM 54110-46000

54210-46001

Unavailable

2

PANEL, FRONT HUB | T

54210-46002

Unavailable

3

SHOE/SPRING SET | C; TO 54410-01005 This part replaces 54410-43000.

54400-35860

$36.32

3

SHOE/SPRING SET | N,T This part replaces 54410-01005.

54400-35860

$36.32

4

SPRING | C,N,T This part replaces 09443-07001.

09443-07025

$2.08

5

SHAFT, BRAKE CAM | C,N

54441-01002

$18.80

5

SHAFT, BRAKE CAM | T This part replaces 54441-26501.

54441-26503

Unavailable

6

DUST SEAL | C,N

09280-12001

$2.90

6

O RING (D:2.5,ID:13.8) | T This part replaces 09280-14003.

09280-14011

$4.77

7

LEVER, BRAKE CAM | C,N

54451-38000

Unavailable

7

LEVER, FR BRAKE CAM | T

54451-26500

$14.76

8

WASHER | C,N,T This part replaces 08322-21068.

08322-01067

$2.13

9

.NUT | C,N,T This part replaces 08310-11068.

08310-00067

$2.13

10

BOLT, ADJUSTER | C,N This part replaces 09100-06050.

09100-06150

$2.30

10

BOLT | T

09100-06078

$2.38

11

WASHER, DUST SEAL | C,N

09160-12011

$1.54

11

WASHER | T This part replaces 09160-14001.

09160-14055

$2.39

12

AXLE, FRONT | C This part replaces 54711-26100.

54711-04711

$33.12

13

NO DESCRIPTION AVAILABLE | C,N,T; F.NO.107152~ This part replaces 54711-46100.

54711-46101

Unavailable

14

WASHER | C This part replaces 08322-11108.

08322-01107

$2.15

15

WASHER (10.5x22x2.3) | C,N,T; F.NO.107152~

09160-10039

$2.26

16

NUT | C,N,T This part replaces 08314-31108.

08314-3110A

$1.99

17

PIN | C This part replaces 04111-20308.

04111-2030A

$1.50

18

COTTER PIN | N,T This part replaces 04111-20208.

04111-2020A

$1.49

19

SPACER, FR AXLE RH | C,N,T This part replaces 54740-26100.

54740-26101

$18.87

20

SPACER (10.2X16X51) | C,N,T This part replaces 09180-10005.

09180-10148

$8.18

21

OIL SEAL (15X31X5) | C,N,T

09284-15001

$4.73

22

BEARING | C,N,T; FROM 08143-63000 This part replaces 08143-63007.

08143-6300B

$15.33

23

BEARING, RH | C,N,T

08113-62000

$13.63

24

TIRE, FRONT (2.50-14 4PR) IRC | C This part replaces 55100-46410.

55100-46420

$79.62

24

TIRE (2.50-14 4PR) | N,T

55100-46420

$79.62

25

TUBE,INNER | C,N,T This part replaces 55200-46410.

55200-46411

$17.96

26

PROTECTOR,INNER | C,N,T This part replaces 55261-24010.

55261-24020

$3.45

27

RIM, WHEEL | C,N,T

55311-24020

Unavailable

28

SPOKE SET | C,N,T This part replaces 55300-24805.

55320-24020

Unavailable
