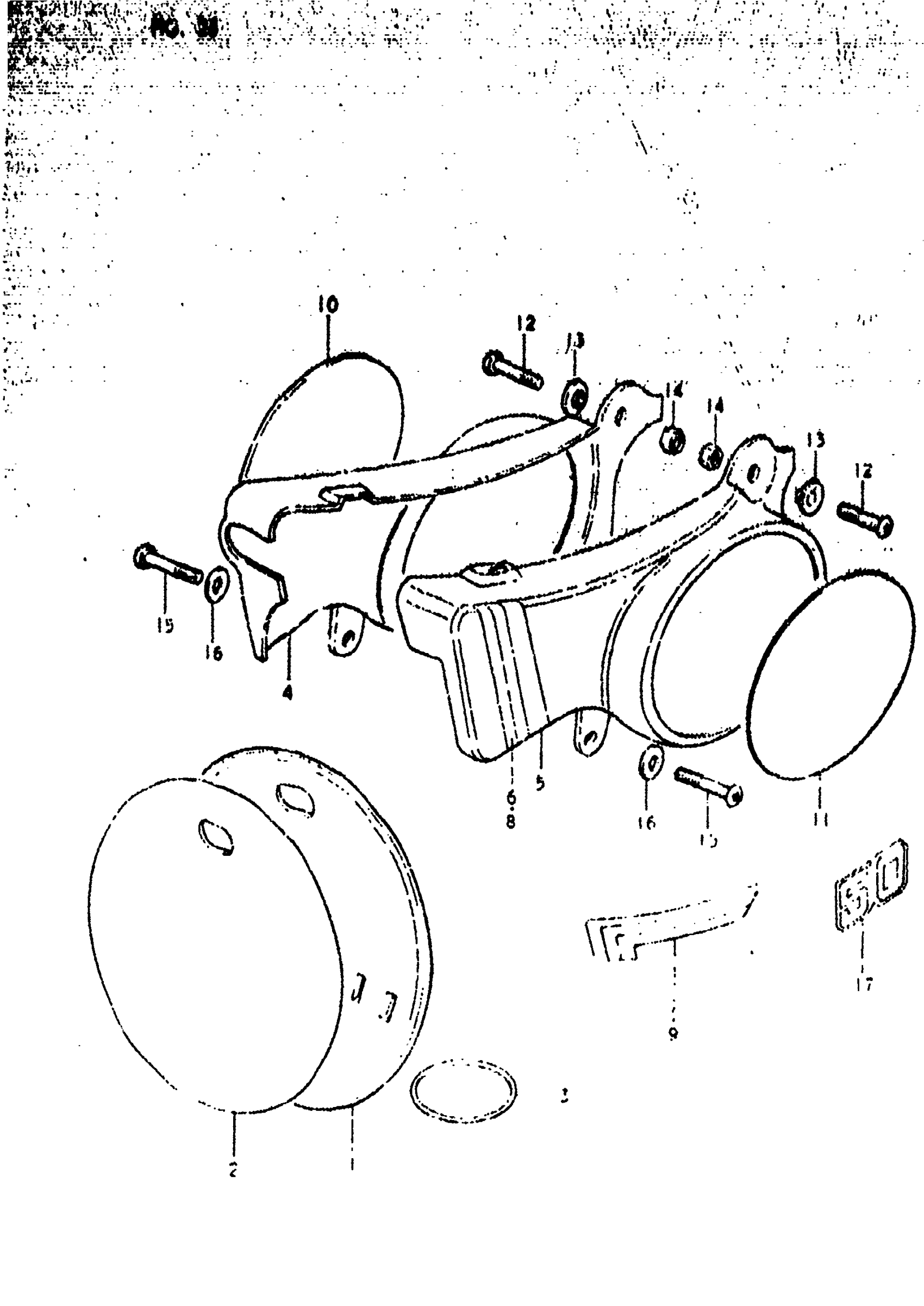

Suzuki RM50 (1980) FRAME COVER (RM50N Diagram

#

Description
Price

1

PLATE, NUMBER FRONT | N,T

94911-46001

Unavailable

2

EMBLEM, NUMBER PLATE FRONT | N,T

68169-46010

Unavailable

3

O RING | N,T This part replaces 09280-48004.

09280-48003

$2.73

4

COVER, FRAME RH | N,T

47111-46610-163

Unavailable

5

NO DESCRIPTION AVAILABLE | N This part replaces 47211-46610-163.

47211-46611-13L

Unavailable

5

NO DESCRIPTION AVAILABLE | T This part replaces 47211-46611-163.

47211-46611-13L

Unavailable

6

TAPE, STRIPING, RH | N

68136-46610-67H

Unavailable

7

TAPE, STRIPING, RH | T

68136-46620-67H

Unavailable

8

TAPE, STRIPING, LH | N

68146-46610-67H

Unavailable

9

TAPE, STRIPING, LH | T

68146-46620-67H

Unavailable

10

TAPE, NUMBER PLATE, RH | N,T

68134-46610

Unavailable

11

TAPE, NUMBER PLATE, LH | N,T

68144-46610

Unavailable

12

SCREW, BODY COVER UPPER | N,T This part replaces 02142-06258.

09125-06055

$2.34

13

WASHER | N,T

09169-06016

$1.65

14

NUT | N,T This part replaces 08319-31068.

08319-31067

$2.03

15

SCREW | N

02142-06127

$1.49

15

SCREW | T

02142-06167

$1.49

16

WASHER | N,T This part replaces 09160-06007.

09160-06084

$1.78

17

NO DESCRIPTION AVAILABLE | T This part replaces 68131-46600.

68131-46620-64D

Unavailable
