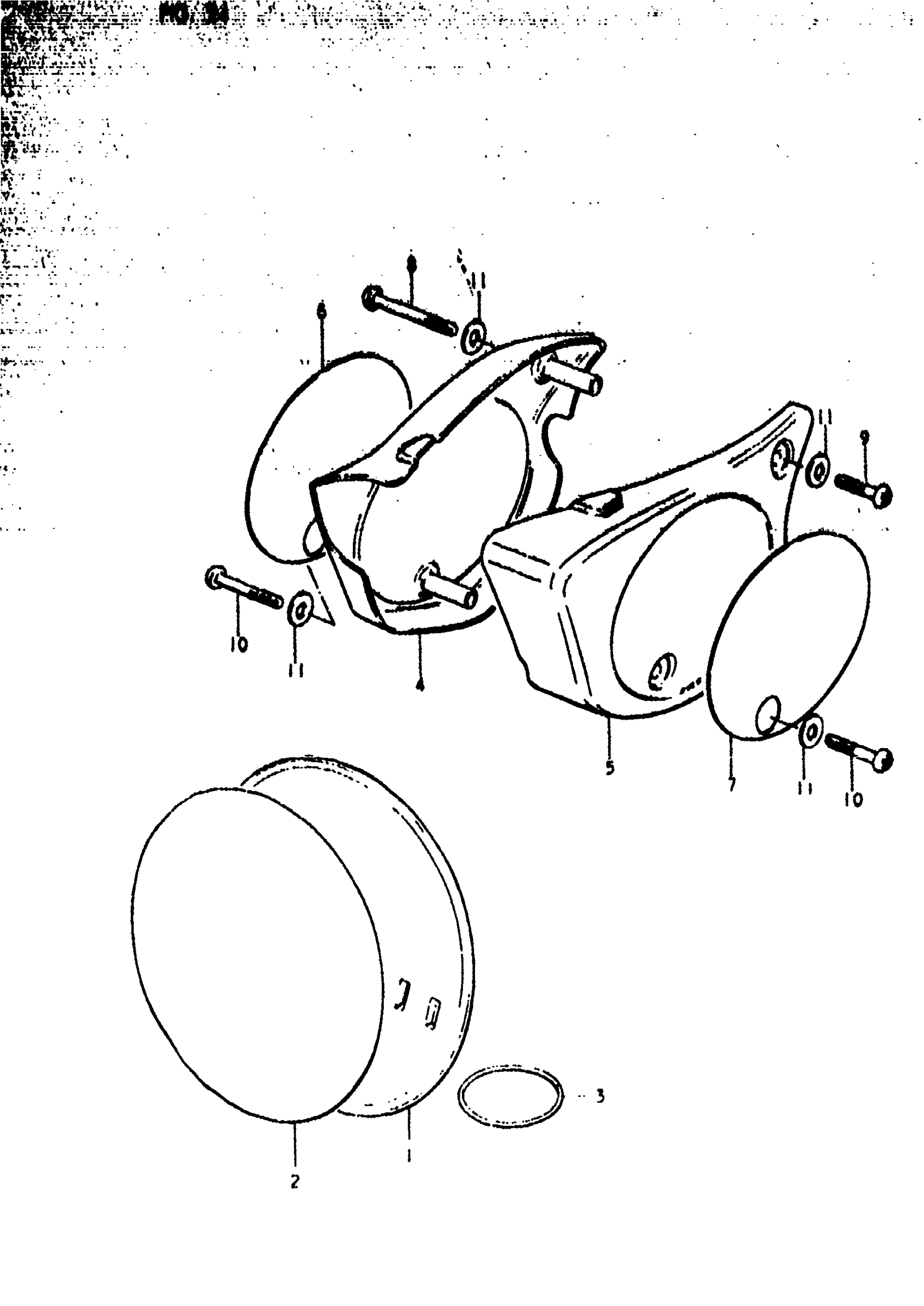

Suzuki RM50 (1980) FRAME COVER (RM50C) Diagram

#

Description

Price

1

PLATE, NUMBER FRONT This part replaces 94911-46000.

94911-46001

Unavailable

2

EMBLEM, NUMBER PLATE FRONT

68169-46000

Unavailable

3

O RING This part replaces 09280-48004.

09280-48003

$2.73

4

COVER, FRAME RH

47111-46600-163

Unavailable

5

COVER, FRAME LH

47211-46600-163

Unavailable

6

TAPE, FRAME COVER STRIPING, R

68136-46600

Unavailable

7

TAPE, FRAME COVER STRIPING, L

68146-46600

Unavailable

8

SCREW

02142-06608

Unavailable

9

SCREW This part replaces 02142-06458.

02142-06457

$2.72

10

SCREW This part replaces 02142-06508.

02142-06507

$3.15

11

WASHER This part replaces 09160-06007.

09160-06084

$1.78
