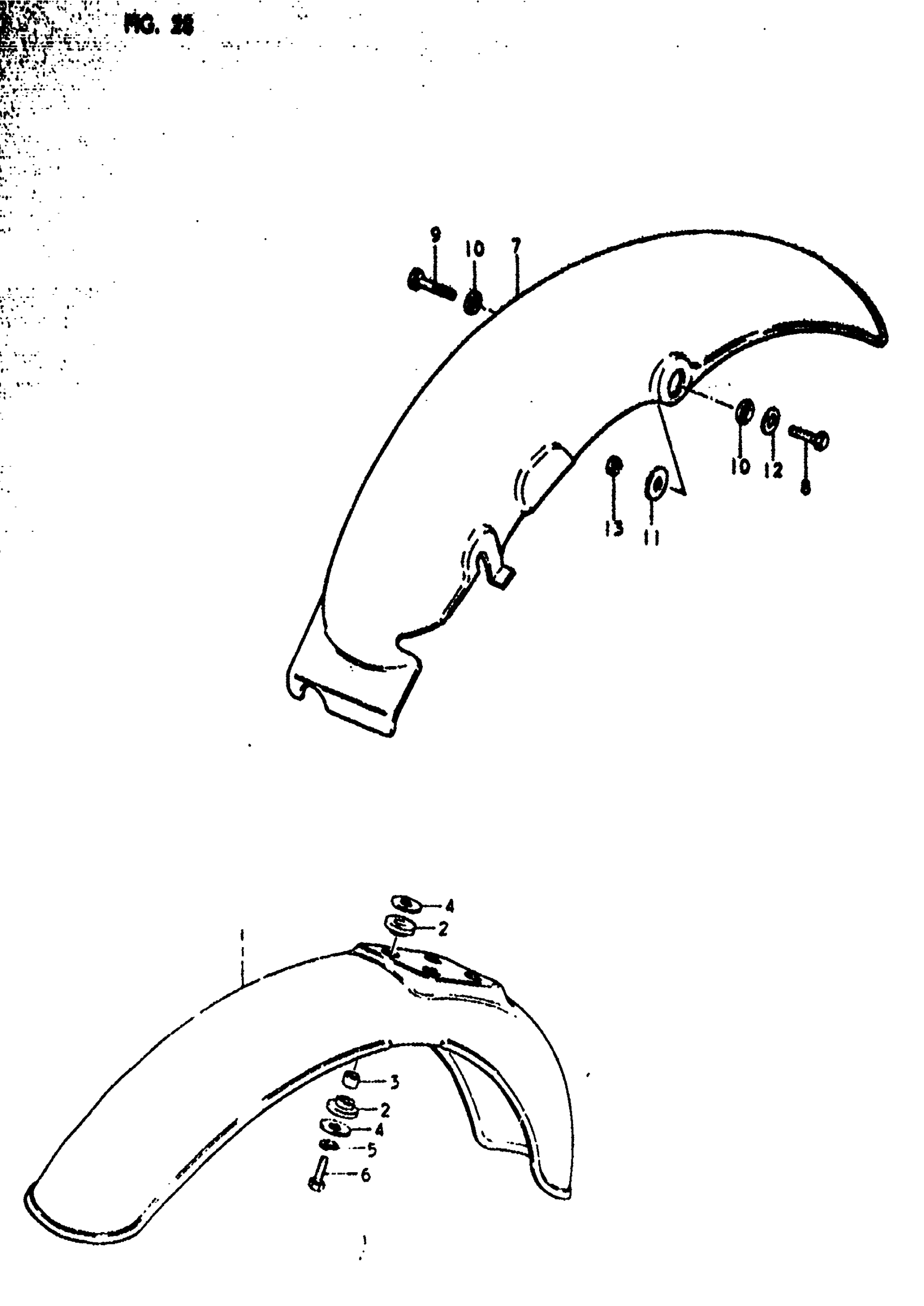

Suzuki RM50 (1980) FENDER (RM50C) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 53111-46400-163.

53111-46401-13L

Unavailable

2

CUSHION

09320-09003

$2.23

3

SPACER (6.5X10X10) This part replaces 09180-06030.

09180-06310

$1.91

4

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

5

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

6

BOLT, GEAR SHIFT ARM This part replaces 01107-06256.

01500-0625A

$1.78

7

FENDER, REAR

63111-46600-163

Unavailable

8

BOLT, REAR This part replaces 01107-08208.

01500-08207

$2.53

9

BOLT This part replaces 01107-08308.

01500-08307

$3.04

10

SPACER

09180-08052

Unavailable

11

WASHER (8.5X20X1.6) This part replaces 09160-08010.

09160-08054

$1.49

12

WASHER This part replaces 08322-11088.

08322-01087

$2.13

13

NUT This part replaces 08310-12088.

08310-00087

$2.13
