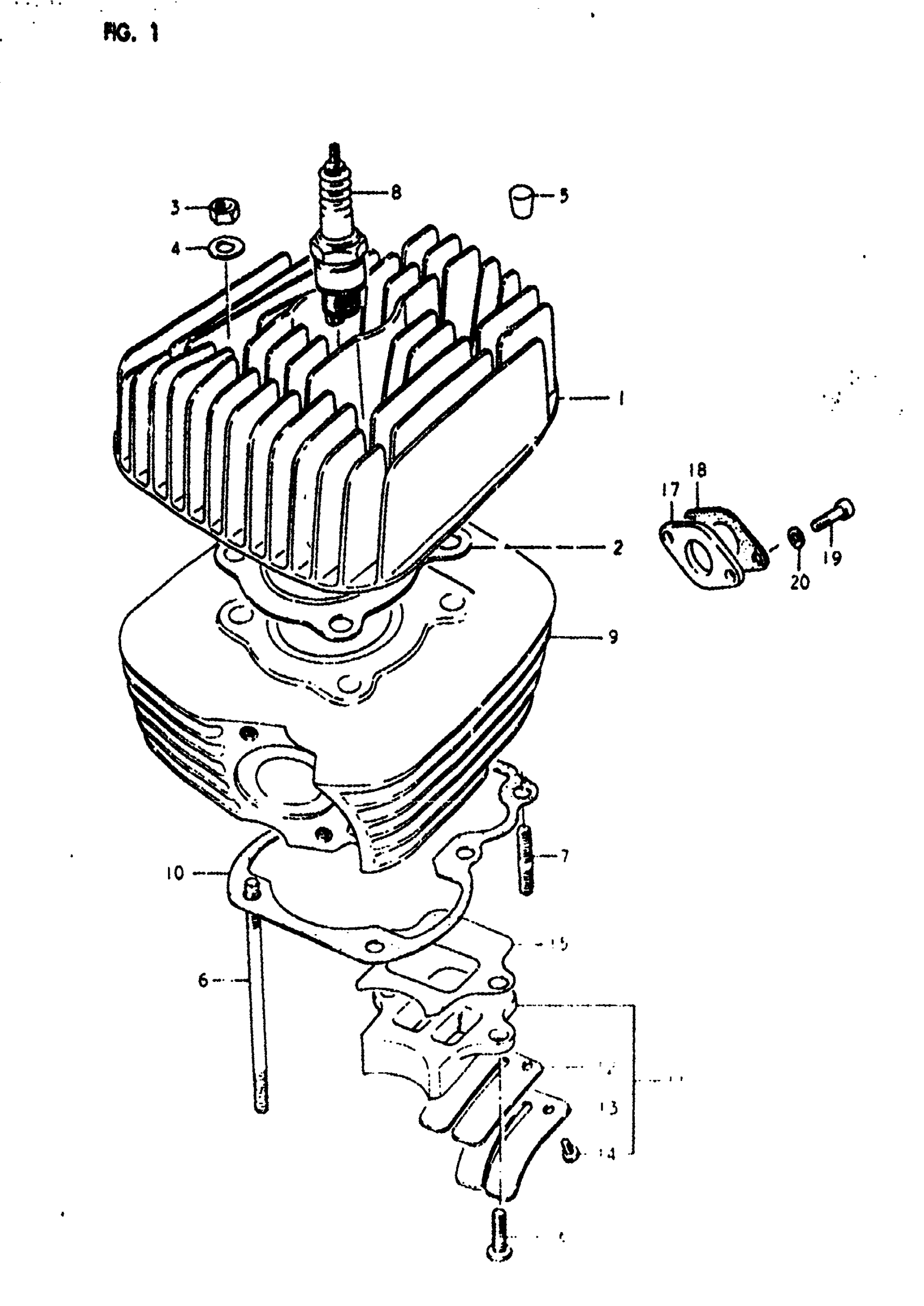

Suzuki RM50 (1980) CYLINDER (RM50C) Diagram

#

Description
Price

1

CYLINDER HEAD

11111-46510

Unavailable

2

GASKET

11141-46181

Unavailable

3

.NUT This part replaces 08310-11068.

08310-00067

$2.13

4

WASHER This part replaces 08322-21068.

08322-01067

$2.13

5

RUBBER PAD, CYLINDER HEAD

11151-18600

Unavailable

6

STUD BOLT

09108-06012

Unavailable

7

BOLT,STUD This part replaces 01421-06168.

01421-0616A

$1.91

8

SPARK PLUG (NGK, BP6HS)

09482-00084

$3.32

8

SPARK PLUG,W20F This part replaces 09482-00085.

09482-00302-111

$7.88

9

CYLINDER

11211-46600

Unavailable

10

GASKET,CYL (NA) This part replaces 11241-46100.

11241-46130

$7.97

11

LEED VALVE ASSY | Includes Item(s) 12 - 14 This part replaces 13150-46010.

13150-46011

Unavailable

12

STOPPER

13152-23011

Unavailable

13

REED VALVE

13153-27110

Unavailable

14

SCREW This part replaces 13154-19011.

02112-0308A

$1.80

15

GASKET, REED VALVE This part replaces 13156-46000.

13156-46001-H17

$2.83

16

SCREW This part replaces 02112-06168.

02112-06167

$1.49

17

INSULATOR

13129-46100

Unavailable

18

GASKET,CARBURET This part replaces 13125-46100.

13125-46110

$3.65

19

BOLT This part replaces 09106-06003.

07130-06257

$3.16

20

WASHER This part replaces 08322-21068.

08322-01067

$2.13
