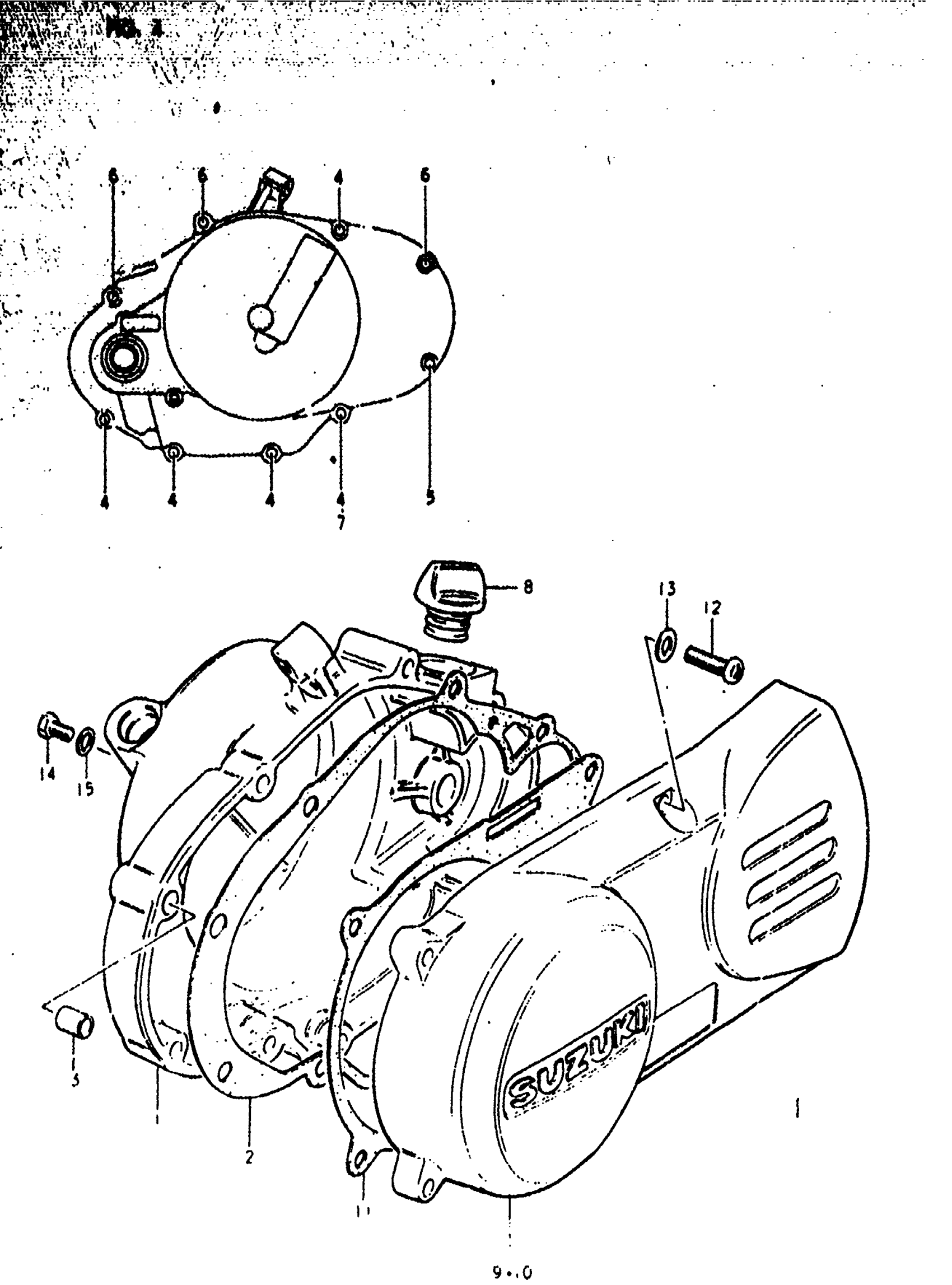

Suzuki RM50 (1980) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | C,N This part replaces 11341-46000.

11341-46001

Unavailable

1

COVER, CLUTCH | T

11341-46001

Unavailable

2

GASKET, CLUTCH COVER | C,N This part replaces 11482-46000.

11482-46010

$10.34

2

GASKET, CLUTCH COVER | T This part replaces 11482-46001.

11482-46010

$10.34

3

PIN | C,N,T

04211-09129

$1.65

4

SCREW | C,N This part replaces 02112-06258.

02112-06257

$1.78

4

SCREW | T This part replaces 02112-06358.

02112-06357

$1.78

5

SCREW | C,N,T

02112-06307

$1.97

6

SCREW (6X40) | C,N,T This part replaces 02112-06408.

02112-06407

$1.78

7

WASHER | T

09168-06004

$1.49

8

PLUG | C,N,T This part replaces 09259-19001.

09259-19005

$2.98

9

COVER, MAGNETO | C

11351-46000

Unavailable

10

COVER, MAGNETO | N,T

11351-46401

$137.02

11

GASKET | C,N,T

11483-46100

$7.57

12

SCREW | C,N,T This part replaces 02112-06258.

02112-06257

$1.78

13

WASHER | C This part replaces 08322-21068.

08322-01067

$2.13

14

SCREW (6X10) | C,N,T This part replaces 09128-06004.

09128-06044

$1.49

15

GASKET | C,N,T

09168-06001

$1.49
