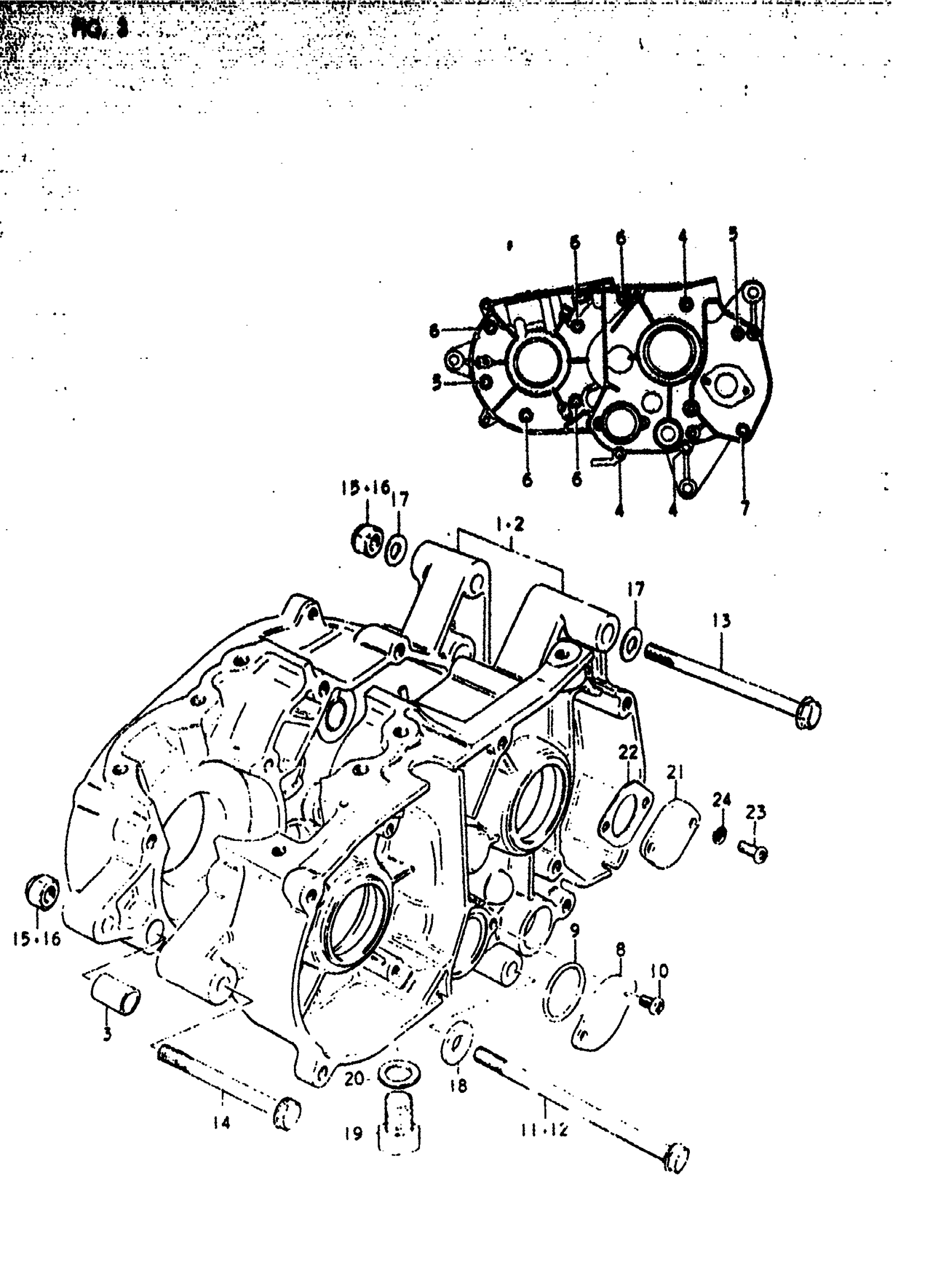

Suzuki RM50 (1980) CRANKCASE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | C,T This part replaces 11300-46834.

11301-46811

Unavailable

1

CRANK CASE SET | N This part replaces 11300-46841.

11301-46822

$543.30

1

CRANK CASE SET | T; Includes Item(s) 2 - 6 This part replaces 11300-46843.

11301-46822

$543.30

2

PIN | C,N,T This part replaces 09206-13001.

04211-13189

$2.19

3

SCREW | C

02112-06557

$2.53

4

SCREW (6X45) | C,N,T This part replaces 02112-06458.

02112-06457

$1.78

5

SCREW | C,N,T This part replaces 02112-06358.

02112-06357

$1.78

6

SCREW | C,N,T This part replaces 02112-06258.

02112-06257

$1.78

7

CAP, GEAR SHIFTING CAM PIVOT | C,N,T

11451-46000

$3.37

8

O RING (D:2.4,ID:26.2) | C,N,T This part replaces 09280-26003.

09280-26005

$2.30

9

SCREW | C,N,T This part replaces 02112-05088.

02112-05087

$1.49

10

BOLT, UPPER | C This part replaces 09103-08025.

09103-08098

$3.29

11

BOLT | N,T This part replaces 09100-08027.

09116-08064

$6.28

12

BOLT (8X100) | C,N,T This part replaces 09103-08009.

09103-08070

$5.57

13

BOLT | C,N,T This part replaces 01517-08758.

01550-08757

$4.68

14

NUT | C

09159-08020

$1.78

15

NUT | N,T This part replaces 08319-31088.

08319-3108A

$2.32

16

WASHER | C This part replaces 08322-11088.

08322-01087

$2.13

17

WASHER | C,N,T This part replaces 09160-08030.

09160-08128

$2.80

18

BOLT | C,N,T This part replaces 01107-10208.

01500-1020B

$3.16

19

GASKET | C,N,T

09168-10002

$2.13

20

CAP, OIL PUMP DRIVE SHAFT | C,N,T

16745-16701

Unavailable

21

GASKET, OIL PUMP | C This part replaces 16731-03100.

16731-03101

$2.81

21

GASKET | N,T

16731-03101

$2.81

22

SCREW | C,N,T This part replaces 02112-05128.

02112-05127

$1.97

23

LOCK WASHER | C,N,T This part replaces 08321-21058.

08321-0105A

$1.84
