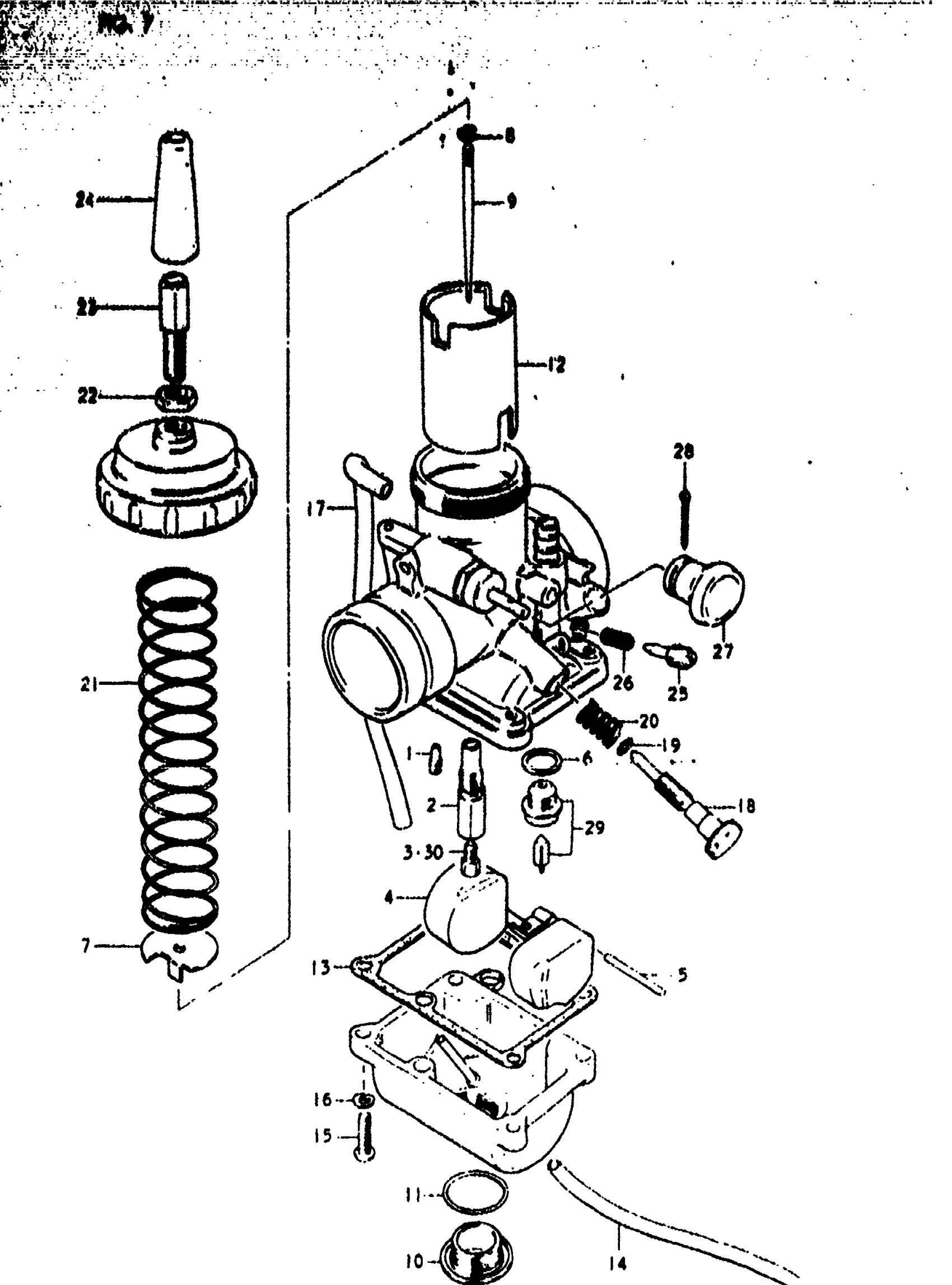

Suzuki RM50 (1980) CARBURETOR (RM50N Diagram

#

Description
Price

0

CARBURETOR ASSY | N,T; Includes Item(s) 1 - 29

13200-46620

Unavailable

1

JET, PILOT (#17.5) | N,T

09492-17004

Unavailable

2

JET, NEEDLE (0-8) | N,T

09494-00244

Unavailable

3

JET, MAIN (#105) | N,T

09491-21013

Unavailable

4

FLOAT | N,T

13252-46410

Unavailable

5

.PIN, FLOAT | N,T

13254-01010

$3.62

6

GASKET, VALVE SEAT | N,T

13392-01010

$2.15

7

PLATE, THROTTLE VALVE | N,T

13581-09210

$6.55

8

CLIP, NEEDLE | N,T

13394-10010

$5.45

9

NEEDLE, JET (4J29-4) | N,T

13383-46620

Unavailable

10

PLUG, DRAIN | N,T

13247-32210

$15.23

11

O RING | N,T This part replaces 13294-40110.

09280-20003

$2.30

12

VALVE, THROTTLE (CA:2.0) | N,T

13551-46620

Unavailable

13

GASKET, FLOAT CHAMBER | N,T

13251-46010

Unavailable

14

HOSE | N,T This part replaces 13684-30650.

13684-40A00

$9.58

15

SCREW | N,T This part replaces 02112-04168.

02112-0416A

$1.49

16

LOCK WASHER | N,T This part replaces 08321-21048.

08321-0104A

$1.84

17

HOSE | N,T This part replaces 13684-30650.

13684-40A00

$9.58

18

ADJUSTER | N,T This part replaces 13267-46010.

13267-36A00

$12.40

19

O RING | N,T This part replaces 13294-30010.

13278-02340

$1.91

20

SPRING, THROTTLE STOP SCREW | N,T

13268-46010

$5.67

21

SPRING, THROTTLE VALVE RETURN | N,T

13573-36110

$6.20

22

NUT | N,T

13661-16600

$4.64

23

ADJUSTER, CABLE | N,T

13577-98011

Unavailable

24

CAP | N,T

13681-33010

$9.32

25

SCREW, PILOT AIR | N,T

13269-95110

$13.35

26

SPRING | N,T This part replaces 13268-95110.

13268-35010

$4.48

27

KNOB, STARTER | N,T

13413-25710

Unavailable

28

PIN | N,T This part replaces 04111-16158.

04111-1620A

$1.49

29

VALVE, NEEDLE | N,T

13370-23010

$57.83

30

JET, MAIN (#100) OPT | N,T

09491-20002

Unavailable

30

JET, MAIN (#110) OPT | N,T

09491-22003

Unavailable

30

JET, MAIN (115) | N,T This part replaces 09491-23008.

09491-23010

Unavailable

30

JET, MAIN (120) | N,T This part replaces 09491-24002.

09491-24014

Unavailable

30

JET, MAIN | N,T This part replaces 09491-25004.

09491-25009

Unavailable
