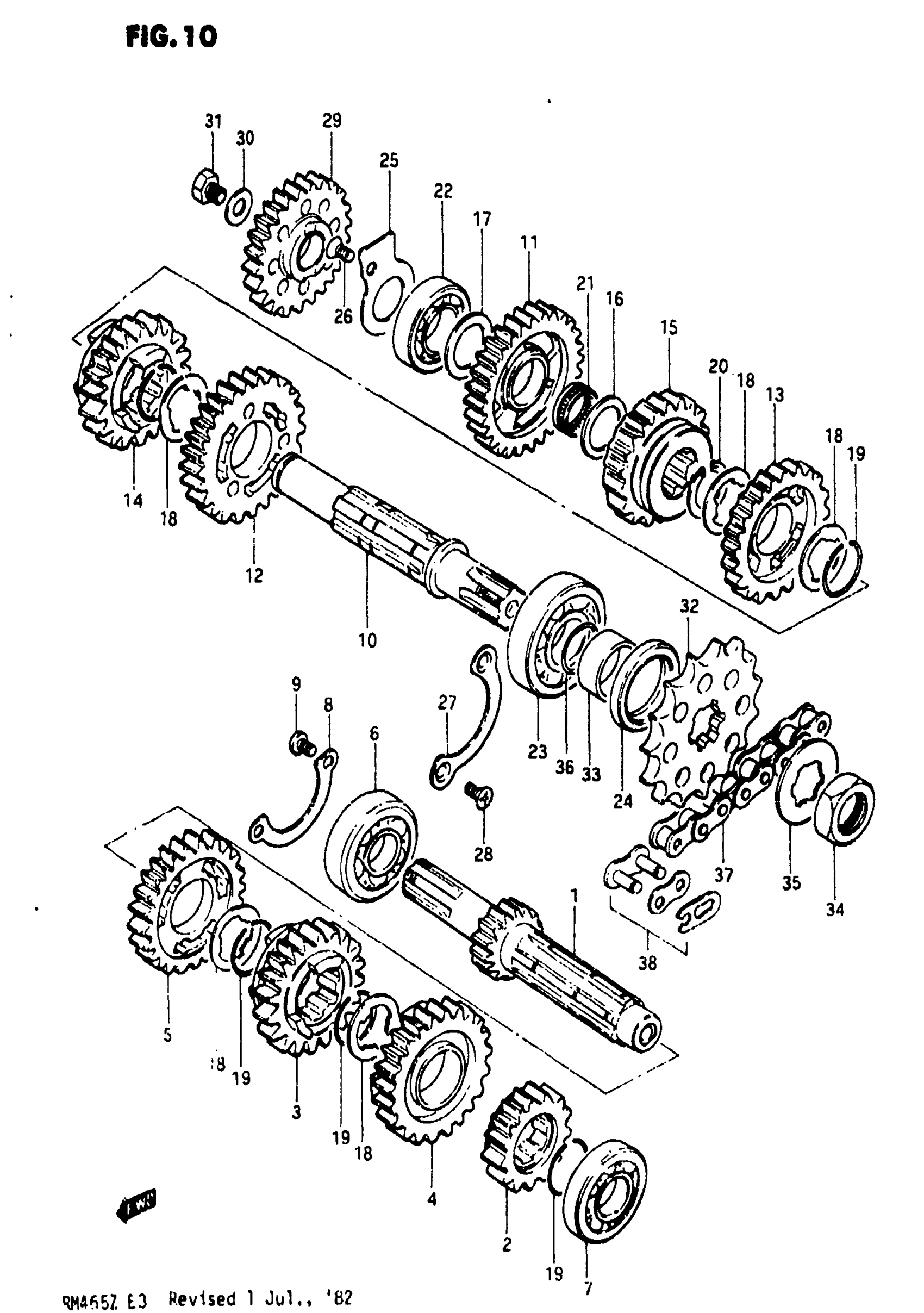

Suzuki RM465 (1982) TRANSMISSION (MODEL X) Diagram

#

Description
Price

1

COUNTERSHAFT (NT:14)

24120-14211

Unavailable

2

GEAR, 2ND DRIVE (NT:16)

24221-14211

Unavailable

3

GEAR, 3RD DRIVE (NT:19)

24231-14990

Unavailable

4

GEAR, 4TH DRIVE (NT:21)

24240-14211

Unavailable

5

GEAR, 5TH DRIVE (NT:23)

24251-14211

Unavailable

6

BEARING, RH (22X56X16) This part replaces 09262-22006.

09262-22025

$57.67

7

BEARING (20X42X12) This part replaces 08113-60040.

09262-20106

$29.35

8

HOLDER, BEARING

24741-14210

Unavailable

9

SCREW This part replaces 02112-06128.

02112-06127

$1.84

10

DRIVESHAFT

24131-14990

Unavailable

11

GEAR, 1ST DRIVEN (NT:28)

24311-14210

Unavailable

12

GEAR, 2ND DRIVEN (NT:26)

24320-14211

Unavailable

13

GEAR, 3RD DRIVEN (NT:24)

24331-14211

Unavailable

14

GEAR, 4TH DRIVEN (NT:21)

24341-14212

Unavailable

15

GEAR, 5TH DRIVEN (NT:20)

24351-14211

Unavailable

16

WASHER

08211-20301

$2.35

17

WASHER

08211-20363

$3.18

18

WASHER LOCK (25.1X31X1.0)

09167-25012

$3.70

19

CIRCLIP

09380-25006

Unavailable

20

CIRCLIP

09380-25010

$2.91

21

BEARING, 1ST DRIVEN GEAR

09263-20018

Unavailable

22

BEARING, RH

09264-20002

Unavailable

23

BEARING, LH

09262-22013

$73.18

24

OIL SEAL

09283-32003

$7.31

25

HOLDER, BEARING RH This part replaces 24751-14211.

24751-14212

Unavailable

26

SCREW This part replaces 02122-06128.

02122-06127

$1.84

27

HOLDER, BEARING LH

24752-14210

Unavailable

28

SCREW This part replaces 02122-06128.

02122-06127

$1.84

29

GEAR, KICK STARTER IDLE This part replaces 26260-14200.

26260-14201

Unavailable

30

SHIM (20X28X1) This part replaces 08211-20281.

09181-20167

$2.62

31

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

32

SPROCKET, ENGINE (NT:14)

27511-14210

Unavailable

32

SPROCKET, ENGINE (NT:13) | OPT

27511-41110

Unavailable

32

SPROCKET, ENGINE (NT:15) | OPT

27511-41130

Unavailable

33

SPACER

09180-22007

Unavailable

34

NUT

09140-22006

Unavailable

35

LOCK WASHER

09167-22005

$2.11

36

O RING

09280-22003

$1.72

37

CHAIN,DRIVE ASS | Includes Item(s) 38 This part replaces 27600-14250.

27600-46K00-116

$167.95

38

JOINT (DID)

27620-14252

Unavailable

38

JOINT (RK) This part replaces 27620-14261.

27620-14262

Unavailable
