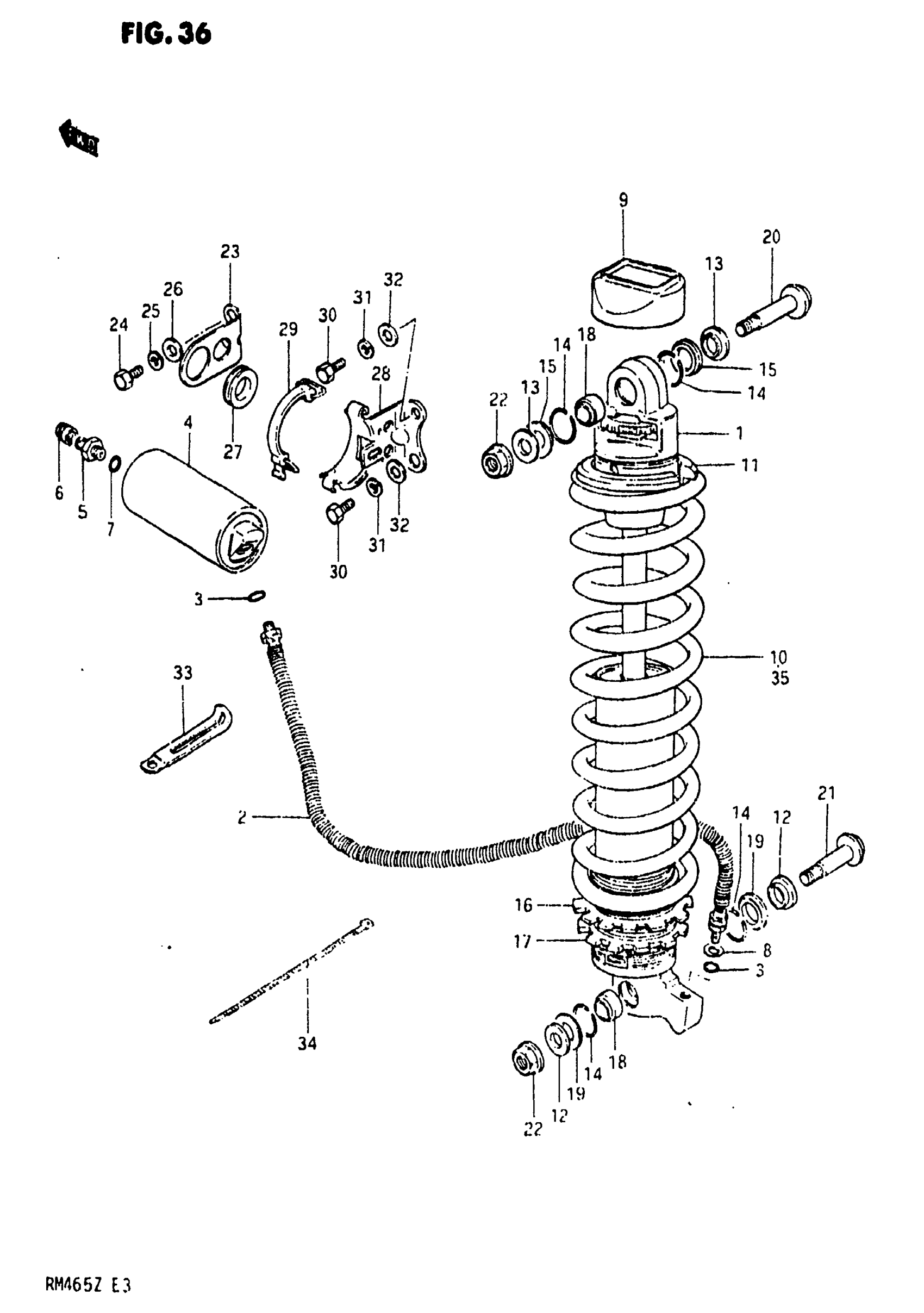

Suzuki RM465 (1982) SHOCK ABSORBER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 62100-14200.

62100-14201

Unavailable

1

SHOCK ABSORBER, REAR | MODEL Z; Includes Item(s) 2 - 19

62100-14240

Unavailable

2

HOSE | MODEL XMODEL Z

62280-14200

Unavailable

3

O RING

62154-40200

Unavailable

4

TANK | MODEL X

62270-14100

Unavailable

4

TANK | MODEL Z

62270-14120

Unavailable

5

VALVE

62274-14100

Unavailable

6

VALVE, CAP

51294-40400

$8.12

7

O RING

51117-41211

Unavailable

8

WASHER

62285-14100

Unavailable

9

CAP

62179-14100

Unavailable

10

SPRING

62211-14100

Unavailable

11

SPRING, GUIDE

62225-14100

Unavailable

12

COLLAR

62177-14100

Unavailable

13

COLLAR

62177-14200

Unavailable

14

RING, STOPPER This part replaces 62277-14200.

62657-34A01

$1.99

15

DUST SEAL, UPPER

62226-14200

Unavailable

16

SPRING, GUIDE

62191-14100

Unavailable

17

NUT, ADJUSTER

62194-14100

Unavailable

18

BEARING, REAR (10x24x14.5) This part replaces 09269-10001.

62175-00B00

$61.15

19

DUST SEAL, LOWER

62226-14100

Unavailable

20

BOLT,10X77 This part replaces 09103-10039.

09103-10247-XC0

$6.02

21

BOLT, LOWER (L:58)

09103-10040

$5.00

22

NUT This part replaces 08319-31108.

08319-31107

$2.73

23

BRACKET, FRONT | MODEL X This part replaces 62411-14110.

62411-14111

Unavailable

23

BRACKET, FRONT | MODEL Z

62411-14111

Unavailable

24

BOLT This part replaces 01107-06128.

01500-06127

$1.97

25

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

26

WASHER This part replaces 08322-21068.

08322-01067

$2.13

27

CUSHION This part replaces 62423-14210.

62423-14211

Unavailable

28

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 62420-14210.

62420-14213

Unavailable

28

NO DESCRIPTION AVAILABLE | MODEL Z This part replaces 62420-14211.

62420-14213

Unavailable

29

BAND

09462-00075

$7.78

30

BOLT | MODEL X This part replaces 01107-06128.

01500-06127

$1.97

30

BOLT, CANISTER | MODEL Z This part replaces 01107-06168.

01500-06167

$1.97

31

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

32

WASHER | MODEL X This part replaces 08322-21068.

08322-01067

$2.13

32

WASHER | MODEL Z This part replaces 09160-06007.

09160-06084

$1.78

33

CLAMP(L:80) This part replaces 09404-06415.

09404-06036

$1.74

34

CLAMP | MODEL X This part replaces 09407-20401.

09407-25402

$4.64

34

CLAMP | MODEL Z This part replaces 09407-16401.

09407-25402

$4.64

35

SPRING (HARD) | OPT

62211-14110

Unavailable

35

SPRING (SOFT) | OPT

62211-14120

Unavailable
