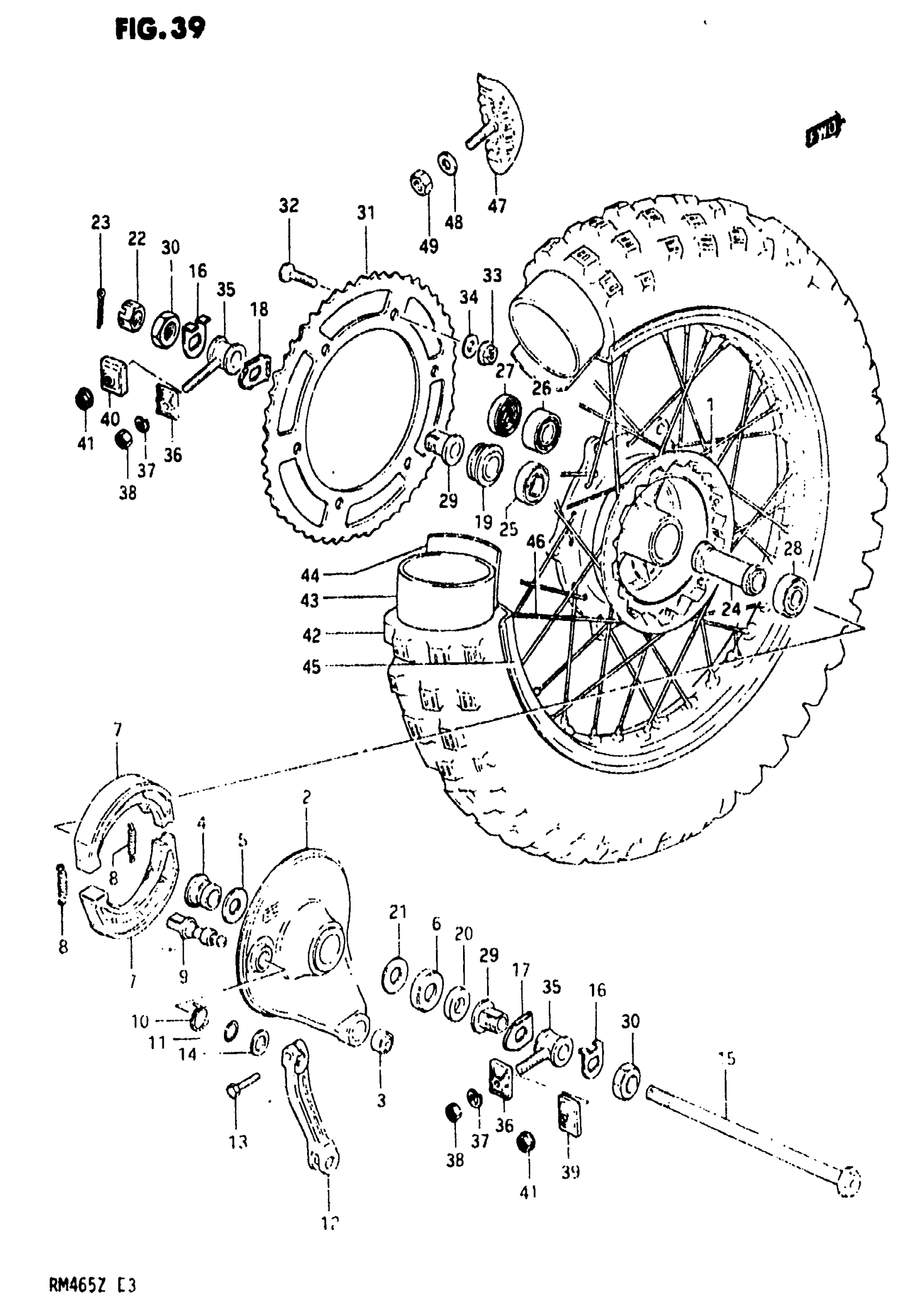

Suzuki RM465 (1982) REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR WHEEL This part replaces 64110-14203.

64110-14222

Unavailable

2

PANEL, REAR HUB | Includes Item(s) 3

64200-14821

Unavailable

3

BEARING

64352-40401

Unavailable

4

SPACER, PANEL

64213-14100

Unavailable

5

DUST SEAL, INNER

09283-20031

$5.24

6

COVER, PANEL DUST SEAL

64845-14100

Unavailable

7

SHOE SET, BRAKE This part replaces 54410-14100.

64400-40810

$29.77

8

SPRING

09443-08021

Unavailable

9

CAM, BRAKE | MODEL X This part replaces 54441-14100.

54441-14101

Unavailable

9

CAM, BRAKE | MODEL Z

54441-14101

Unavailable

10

SPRING This part replaces 09448-30007.

09448-30007-XC0

Unavailable

11

DUST SEAL

09280-12001

$2.90

12

LEVER, BRAKE CAM

64451-14100

Unavailable

13

BOLT This part replaces 01107-06258.

01500-06257

$1.97

14

WASHER (12.5X20X1)

09160-12011

$1.54

15

AXLE,REAR This part replaces 64711-14201.

64711-1420V

Unavailable

16

WASHER | MODEL X

64712-14201

Unavailable

16

WASHER | MODEL Z This part replaces 64712-14300.

64712-14301

Unavailable

17

WASHER, INNER RH

64782-14200

Unavailable

18

PLATE, INNER LH

64792-14200

Unavailable

19

SPACER, AXLE LH | MODEL X

64750-14201

Unavailable

19

SPACER, AXLE LH | MODEL Z

64751-14220

Unavailable

20

SPACER, AXLE RH | MODEL X

64741-14200

Unavailable

20

SPACER, AXLE RH | MODEL Z

64741-14210

Unavailable

21

WASHER, GOVERNOR THRUST This part replaces 08211-15281.

09181-15223

$2.53

22

NUT

09141-14004

$3.91

23

PIN This part replaces 04111-30308.

04111-3030A

$1.49

24

SPACER, HUB BEARING

64730-14200

Unavailable

25

BEARING, LH OUTER | MODEL X

08123-62027

$18.57

25

BEARING, LH INNER | MODEL X

08113-62027

$14.40

26

BEARING, LH | MODEL Z

09267-15001

Unavailable

27

OIL SEAL, LH | MODEL Z

09285-22003

Unavailable

28

BEARING, RH

08143-62027

$16.01

29

SPACER, CHAIN ADJUSTER

64781-14201

Unavailable

30

NUT

09140-22006

Unavailable

31

SPROCKET, REAR (NT:49) | MODEL X

64511-14200

Unavailable

31

SPROCKET, REAR (NT:47) | MODEL Z

64511-14210

Unavailable

32

SCREW | MODEL X

09120-08004

$2.40

32

SCREW | MODEL Z This part replaces 09120-08006.

09120-08009

$4.62

33

NUT This part replaces 08319-31088.

08319-3108A

$2.32

34

WASHER This part replaces 08322-11088.

08322-01087

$2.13

35

ADJUSTER, CHAIN | MODEL X

61410-14220

Unavailable

35

ADJUSTER, CHAIN | MODEL Z

61410-14131

Unavailable

36

PLATE | MODEL X

61421-14220

Unavailable

37

LOCK WASHER | MODEL X This part replaces 08321-21108.

08321-01107

$1.84

38

NUT | MODEL X This part replaces 08310-11108.

08310-00107

$2.19

39

PLATE R | MODEL Z

61421-14220

Unavailable

40

PLATE L | MODEL Z

61431-14200

Unavailable

41

NUT | MODEL Z This part replaces 08319-31108.

08319-31107

$2.73

42

TIRE (51018) | BS MODEL X

65100-14230

Unavailable

42

TIRE (51018) | BS MODEL Z

65100-14120

Unavailable

42

TIRE (51018) | DUNLOP MODEL X

65100-14250

Unavailable

42

TIRE (51018) | DUNLOP MODEL Z

65100-14240

Unavailable

42

TIRE (51018) | IRC MODEL Z

65100-14210

Unavailable

43

TUBE, WHEEL INNER

65200-40430

Unavailable

44

IN TUBE PROTECT This part replaces 65261-15030.

55261-26F10

$4.39

45

RIM, WHEEL (250x18) This part replaces 65311-14201.

65311-14240

Unavailable

46

SPOKE ASSY, REAR This part replaces 65320-14202.

65320-14203

Unavailable

47

STOPPER, BEAD

65270-40420

Unavailable

48

WASHER This part replaces 08322-11088.

08322-01087

$2.13

49

NUT This part replaces 08310-12088.

08310-00087

$2.13
