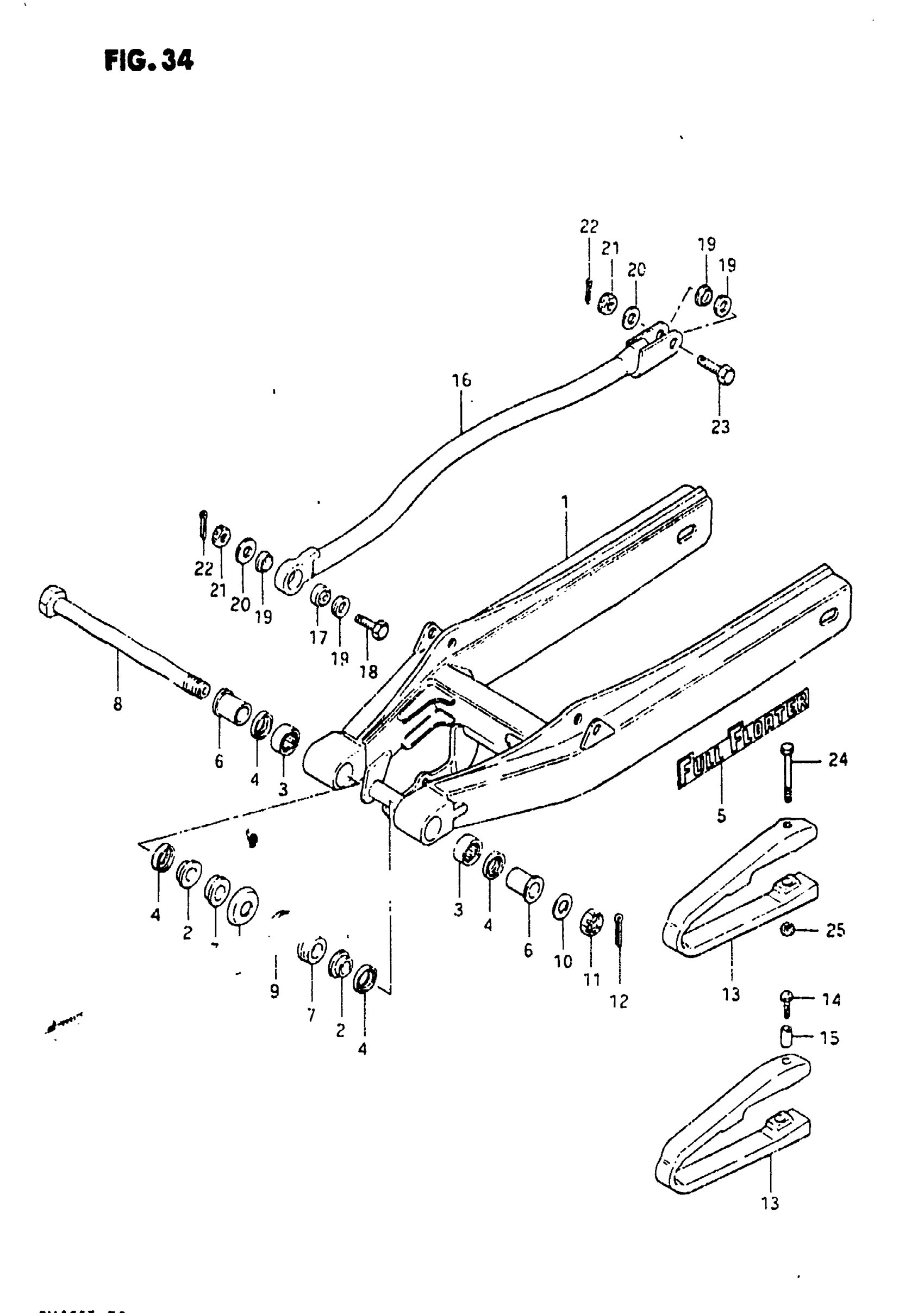

Suzuki RM465 (1982) REAR SWINGING ARM Diagram

#

Description
Price

1

REAR SWINGING ARM SET | MODEL X

61100-14832

Unavailable

1

REAR SWINGING ARM SET | MODEL Z; Includes Item(s) 2 - 5

61000-14310

Unavailable

2

BUSH

61261-14110

Unavailable

3

BEARING

09263-20041

$26.47

4

DUST SEAL, INNER This part replaces 09285-20005.

09283-20031

$5.24

5

EMBLEM This part replaces 68381-14100.

68381-14100-64D

Unavailable

6

SPACER

61251-14100

Unavailable

7

SPACER, INNER

61252-14100

Unavailable

8

SHAFT, PIVOT

61211-14102

Unavailable

9

SEAL, DUST This part replaces 61262-40400.

61262-40401

$5.93

10

WASHER This part replaces 08322-11148.

08322-01147

$1.91

11

NUT, HUB This part replaces 08314-41148.

08314-4014B

$4.24

12

PIN This part replaces 04111-30308.

04111-3030A

$1.49

13

BUFFER,CHAIN TO | MODEL X This part replaces 61273-14202.

61273-14X50

Unavailable

13

BUFFER, CHAIN DEFENSE | MODEL Z This part replaces 61273-14210.

61273-14211

Unavailable

14

SCREW | MODEL X

61275-40200

Unavailable

15

SPACER,5.5X8X4 | MODEL X This part replaces 09180-05015.

09180-05046

$2.50

16

TORQUE LINK SET | Includes Item(s) 17 This part replaces 64300-14812.

64300-14813

Unavailable

17

BEARING This part replaces 64352-40410.

64352-40401

Unavailable

18

BOLT, FRONT

09101-08003

Unavailable

19

DUST SEAL TORQU This part replaces 64339-40410.

64339-40411

$7.03

20

WASHER This part replaces 08322-11088.

08322-01087

$2.13

21

NUT This part replaces 08314-41088.

08314-4008B

$3.03

22

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

23

BOLT, REAR

09101-08014

Unavailable

24

BOLT | MODEL Z This part replaces 01107-06708.

09100-06062

Unavailable

25

NUT | MODEL Z This part replaces 08319-31068.

08319-31067

$2.03
