1982 Suzuki RM465 Rear Fender Diagram

← All diagrams

Find the part on the Rear Fender diagram for your 1982 Suzuki RM465, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

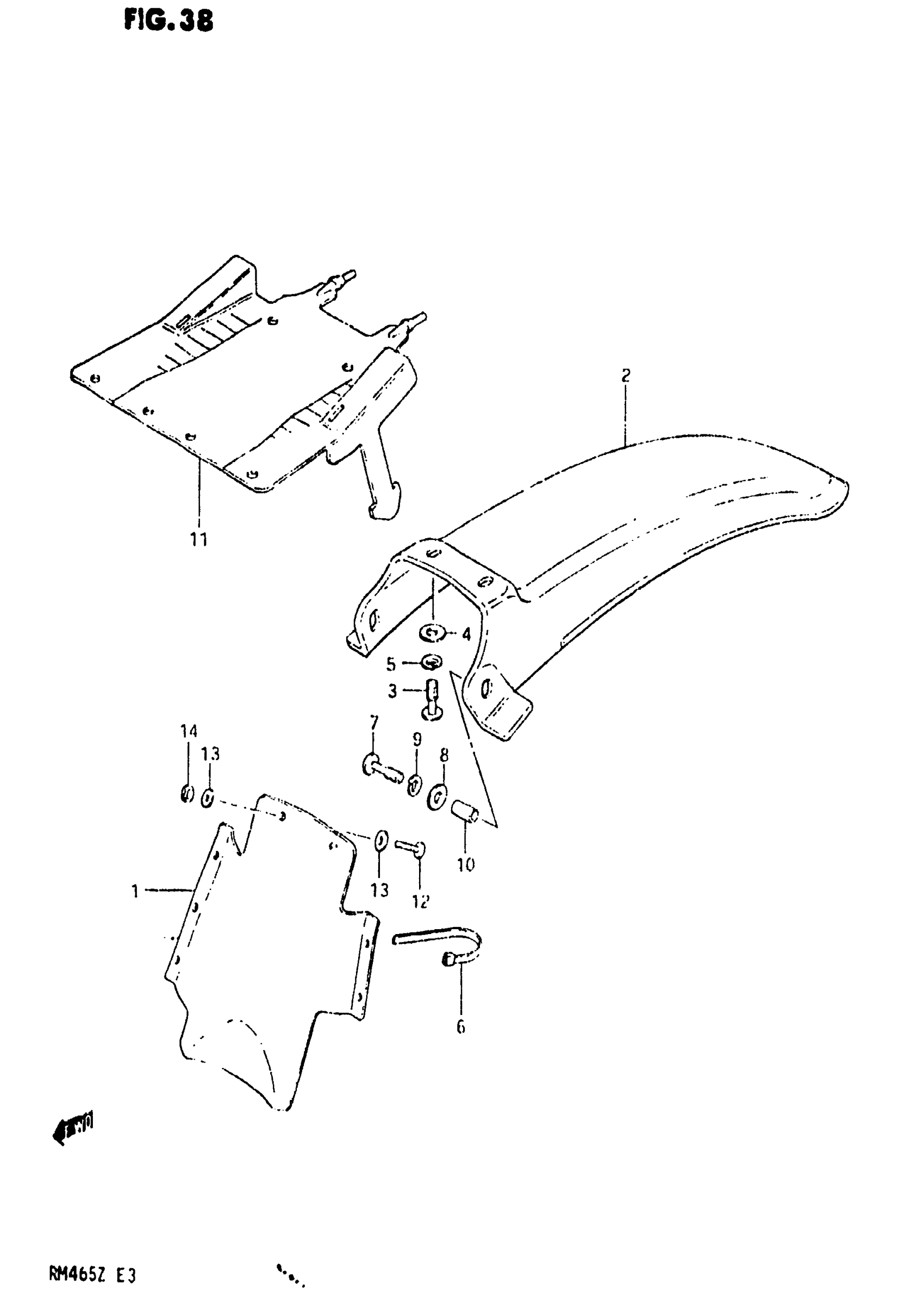

1982 Suzuki RM465 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RR FENDER FRONT This part replaces 63112-14102.

63112-14400

1
Out of stock

2

FENDER,RR | MODEL X This part replaces 63113-14100-163.

63113-14103-163

1
Out of stock

2

FENDER,RR | MODEL Z This part replaces 63113-14101-163.

63113-14103-163

1
Out of stock

3

SCREW, UPPER

02142-06167

2
Out of stock

4

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

2
Out of stock

5

2

$2.28

In stock

6

CLAMP This part replaces 09407-20401.

09407-25402

6
Out of stock

7

SCREW, REAR FENDER REAR

02142-06167

2
Out of stock

8

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

2
Out of stock

9

2

$2.28

In stock

10

2

$2.22

In stock

11

MUD GUARD, REAR FENDER

63331-14101

1
Out of stock

12

SCREW This part replaces 02112-05128.

02112-05127

2
Out of stock

13

WASHER This part replaces 08322-21058.

08322-01057

4
Out of stock

14

NUT This part replaces 08310-22058.

08310-00057

2
Out of stock
