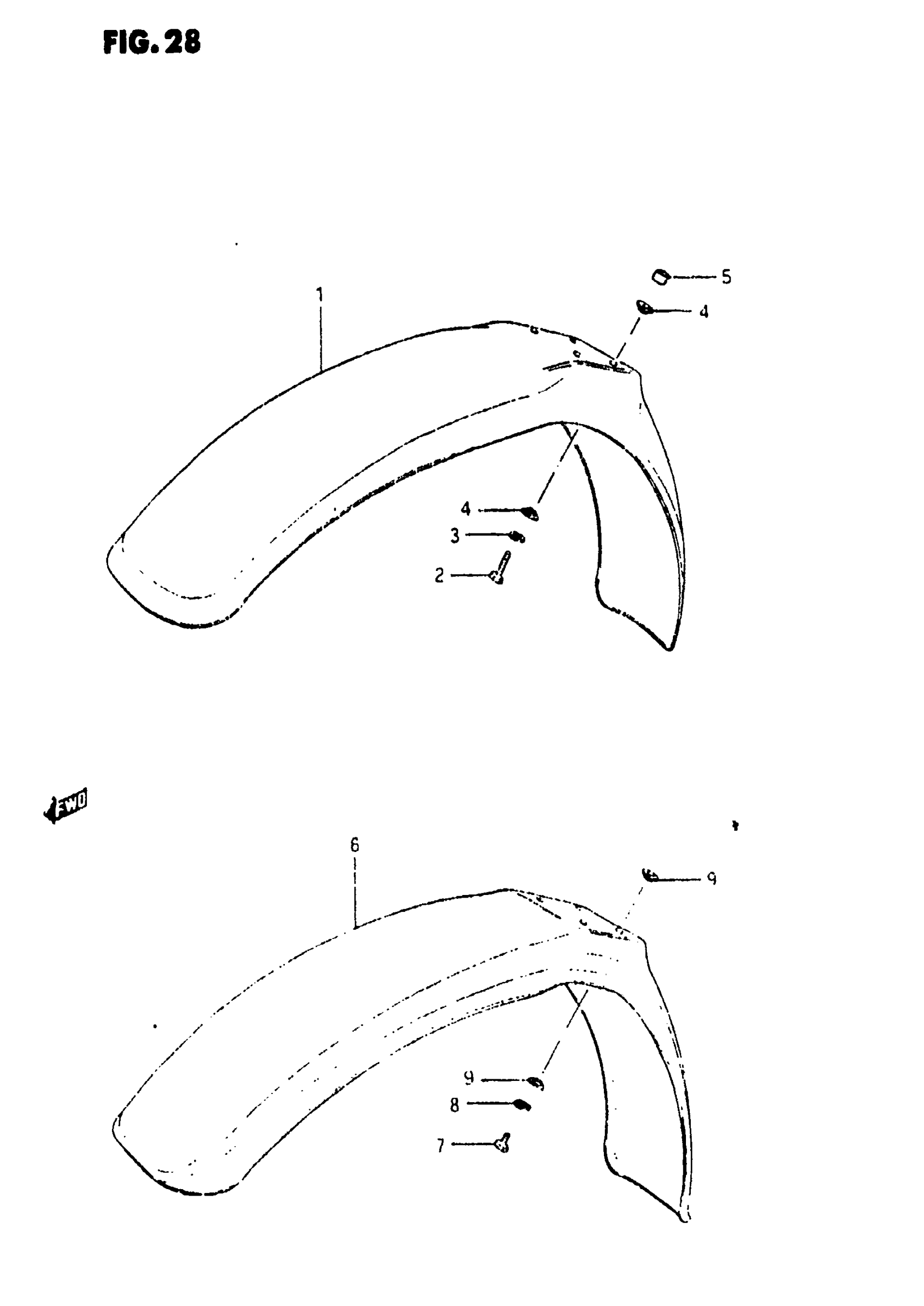

Suzuki RM465 (1982) FRONT FENDER Diagram

#

Description

Price

1

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 53111-14100-163.

53111-14101-13L

Unavailable

2

BOLT, REAR | MODEL X This part replaces 01107-06308.

01500-06307

$3.17

3

LOCK WASHER | MODEL X This part replaces 08321-21068.

08321-01067

$1.89

4

WASHER | MODEL X

09169-06016

$1.56

5

SPACER | MODEL X

53275-14201

Unavailable

6

FENDER, FRONT (YELLOW) | MODEL Z

53111-14300-163

Unavailable

7

BOLT, CANISTER | MODEL Z This part replaces 01107-06168.

01500-06167

$2.01

8

LOCK WASHER | MODEL Z This part replaces 08321-21068.

08321-01067

$1.89

9

WASHER (6.3X16X1) | MODEL Z This part replaces 09180-06048.

09169-06053

$1.15
