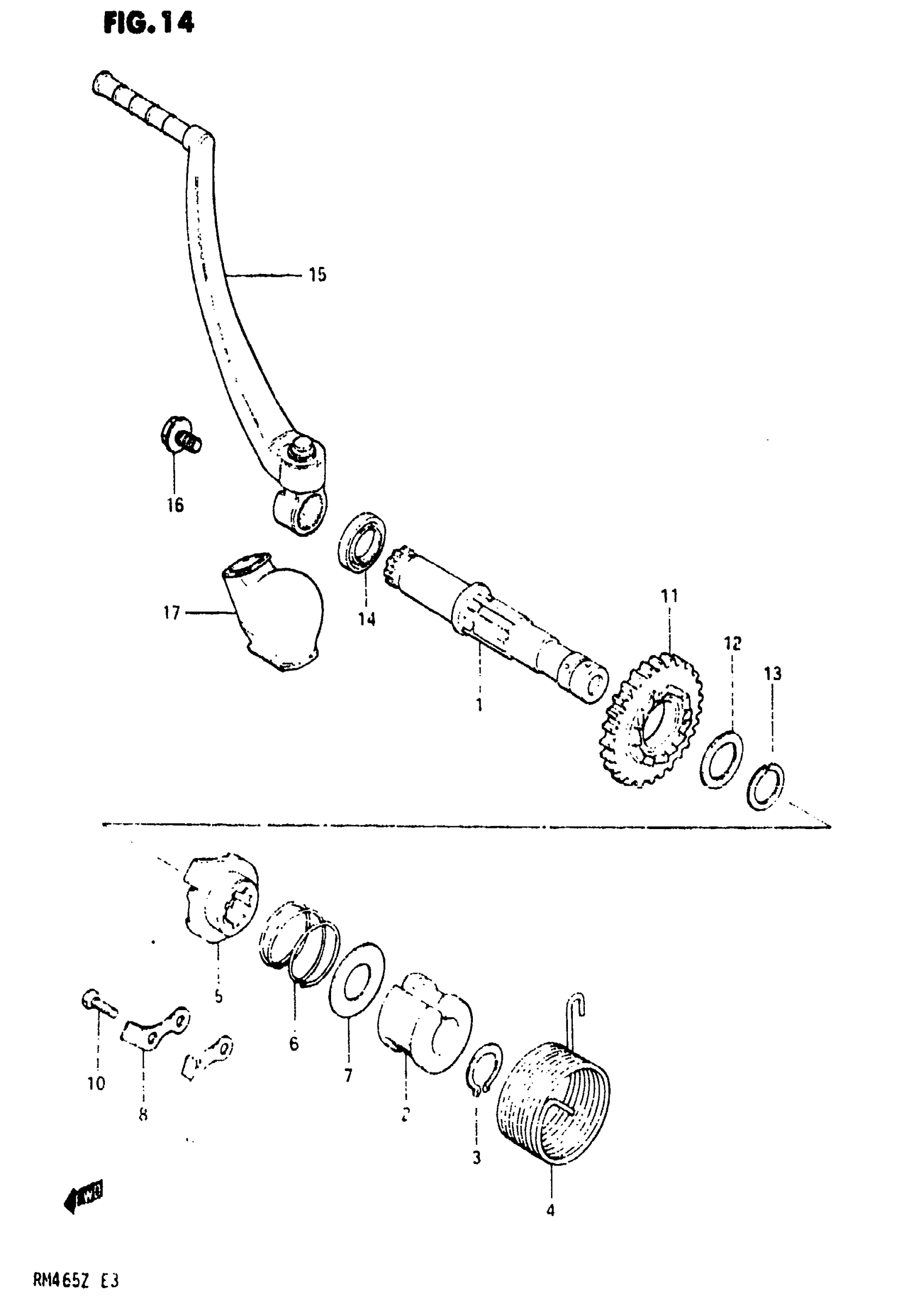

Suzuki RM465 (1982) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER

26211-14200

Unavailable

2

GUIDE, SHAFT SPRING

26221-41100

$8.28

3

CIRCLIP

09380-17001

$1.98

4

SPRING

09448-45012

Unavailable

5

STARTER, KICK This part replaces 26231-30002.

26231-22A10

$63.88

6

SPRING

09440-32002

$2.27

7

WASHER

08211-17341

$2.50

8

GUIDE, KICK STARTER

26232-14200

Unavailable

9

STOPPER, KICK STARTER

26233-32400

$5.40

10

BOLT

09100-08166

Unavailable

11

GEAR, KICK DRIVE (NT:26) This part replaces 26241-14201.

26241-14202

Unavailable

12

WASHER (22X28X1.0) This part replaces 08211-22281.

09181-22139

$3.48

13

CIRCLIP

09380-22006

$3.10

14

OIL SEAL

09283-20031

$5.24

15

LEVER,KICK STAR This part replaces 26300-14201.

26300-14X00

Unavailable

16

BOLT

09103-08069

$4.32

17

COVER,KICK STAR This part replaces 26341-41101.

26341-41102

$7.54
