1982 Suzuki RM465 Handle Clip - Lever Diagram

← All diagrams

Find the part on the Handle Clip - Lever diagram for your 1982 Suzuki RM465, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

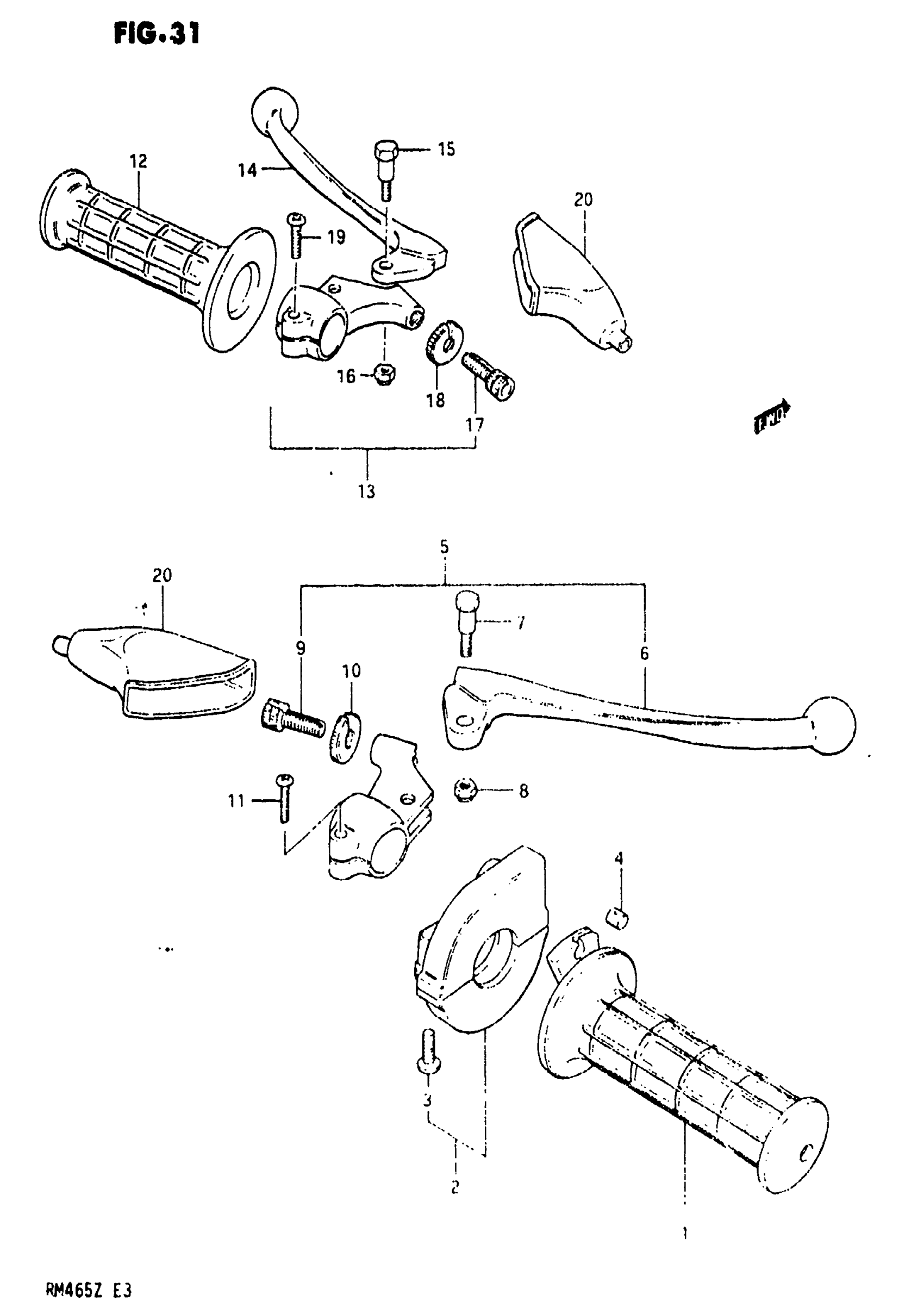

1982 Suzuki RM465 Handle Clip - Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP, THROTTLE

57110-40200

1
Out of stock

2

CASE ASSY, THROTTLE | Includes Item(s) 3

57100-40240

1
Out of stock

3

SCREW This part replaces 02112-05168.

02112-05167

2
Out of stock

4

PIECE, THROTTLE END

58631-07010

1
Out of stock

5

LEVER ASSY, BRAKE | Includes Item(s) 6 - 11

57300-14200

1
Out of stock

6

LEVER, BRAKE

57420-29400

1
Out of stock

7

BOLT This part replaces 57431-11011.

57431-11013

1
Out of stock

8

.NUT This part replaces 08319-21068.

08319-2106A

1
Out of stock

9

ADJUSTER, CABLE

57441-14200

1
Out of stock

10

NUT

57442-14200

1
Out of stock

11

SCREW This part replaces 02112-06208.

02112-06207

1
Out of stock

12

GRIP LH This part replaces 57211-40200.

57211-27C00

1
Out of stock

13

LEVER ASSY, CLUTCH | Includes Item(s) 14 - 19

57500-14200

1
Out of stock

14

LEVER, CLUTCH This part replaces 57620-45020.

57620-45010

1
Out of stock

15

BOLT This part replaces 57431-11011.

57431-11013

1
Out of stock

16

.NUT This part replaces 08319-21068.

08319-2106A

1
Out of stock

17

ADJUSTER, CABLE

57441-14210

1
Out of stock

18

NUT

57442-14200

1
Out of stock

19

SCREW This part replaces 02112-06208.

02112-06207

1
Out of stock

20

COVER, CLUTCH LEVER This part replaces 57341-40001.

57341-40003

2
Out of stock
