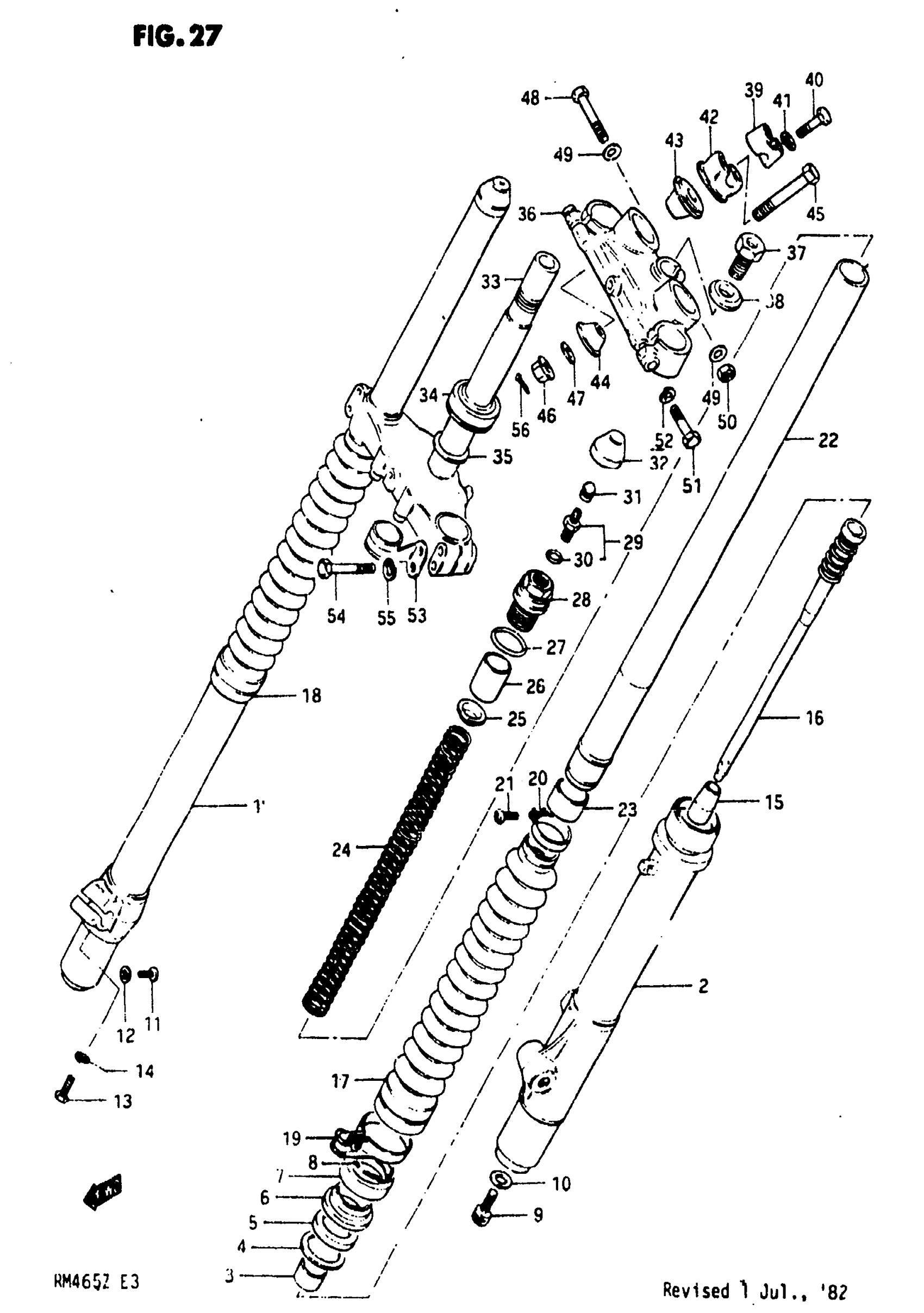

Suzuki RM465 (1982) FRONT FORK (MODEL Z) Diagram

#

Description
Price

0

FRONT FORK ASSY | NIL.REF.NO.55; Includes Item(s) 1 - 55

51100-14260-08C

Unavailable

1

OUTER TUBE, RH

51130-14260

Unavailable

2

OUTER TUBE, LH

51140-14260

Unavailable

3

METAL, SLIDE This part replaces 51167-14200.

51167-40C00

$15.87

4

WASHER

51158-14200

$4.97

5

OIL SEAL This part replaces 51153-14200.

51153-14330

$13.05

6

DUST SEAL

51173-14200

Unavailable

7

CASE, DUST SEAL

51149-14200

Unavailable

8

RING, STOPPER

51156-14200

$4.84

9

BOLT

51147-14200

Unavailable

10

GASKET

51148-14200

$2.78

11

SCREW This part replaces 02112-04088.

02112-04087

$1.15

12

GASKET

51183-03010

$2.00

13

BOLT This part replaces 01107-08308.

01500-08307

$2.82

14

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$1.89

15

PIECE, OIL LOCK

51195-14200

Unavailable

16

CYLINDER

51146-14200

Unavailable

17

BOOT

51571-14200

Unavailable

18

BAND

51573-14200

Unavailable

19

CLIP

51572-14200

Unavailable

20

BAND

51575-14200

Unavailable

21

SCREW This part replaces 02112-04108.

02112-04107

$1.61

22

INNER TUBE

51110-14200

Unavailable

23

PISTON

51121-14200

Unavailable

24

SPRING

51171-14200

Unavailable

25

GUIDE, SPRING

51172-14200

Unavailable

26

SPACER

51176-14260

Unavailable

27

.O RING This part replaces 51117-14200.

51117-14201

$2.67

28

CAP

51351-14200

Unavailable

29

VALVE This part replaces 51293-14200.

51169-14200

Unavailable

30

.O RING (D:1.9,ID:5.7) This part replaces 51117-14210.

09280-06005

$1.49

31

CAP

51294-40400

$9.17

32

CAP

51189-41220

Unavailable

33

STEM, STEERING

51410-14260-08C

Unavailable

34

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$72.93

35

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

$2.92

36

STEM HEAD, STEERING

51311-14200-08C

Unavailable

37

BOLT

51351-41320

Unavailable

38

WASHER

51356-41310

Unavailable

39

HOLDER, HANDLE UPPER

56211-40300-08C

Unavailable

40

BOLT This part replaces 01107-08358.

01500-0835B

$2.82

41

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$1.89

42

HOLDER, HANDLE LOWER

56221-14200-08C

Unavailable

43

DAMPER, UPPER

56241-14200

$50.26

44

DAMPER, LOWER

56242-14200

$35.50

45

BOLT This part replaces 51321-14200.

56321-28C00

$8.14

46

NUT This part replaces 08319-31108.

08319-31107

$2.80

47

WASHER This part replaces 51356-40400.

09160-10035

$1.86

48

BOLT This part replaces 01107-08508.

01500-08507

$2.90

49

WASHER This part replaces 08322-21088.

08322-01087

$1.92

50

NUT This part replaces 08310-12088.

08310-00087

$1.91

51

BOLT This part replaces 01107-10458.

01500-1045A

$2.88

52

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$1.89

53

CLAMP This part replaces 58620-14201.

58620-40401

Unavailable

54

BOLT This part replaces 01107-08408.

01500-0840A

$2.73

55

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$1.89

56

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.25
