1982 Suzuki RM465 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1982 Suzuki RM465, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

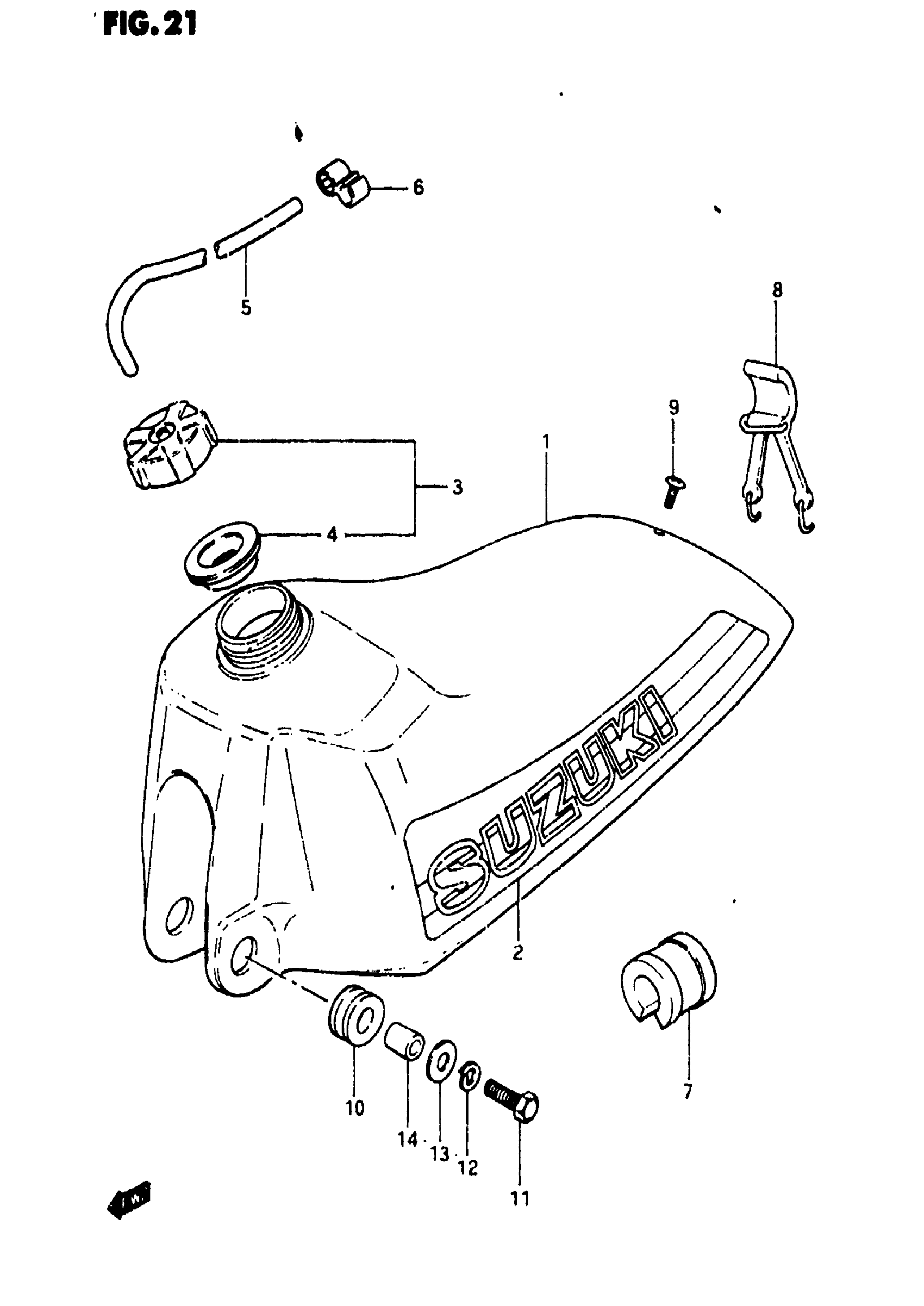

1982 Suzuki RM465 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, FUEL (YELLOW) | Includes Item(s) 2

44100-14840-163

1
Out of stock

2

TAPE SET

68110-14200-76P

1
Out of stock

3

CAP SET,FUEL TA | Includes Item(s) 4 This part replaces 44200-40820.

44200-40822

1
Out of stock

4

GASKET This part replaces 44248-40400.

44248-05211

1
Out of stock

5

HOSE,5X10X600 This part replaces 09343-05129.

44421-13ER0

1
Out of stock

6

CLAMP

44486-40200

1
Out of stock

7

CUSHION

44541-14101

2
Out of stock

8

BAND, REAR This part replaces 44560-14101.

44560-02B00

1
Out of stock

9

SCREW This part replaces 09125-06009.

09125-06073

1
Out of stock

10

CUSHION

09320-12016

2
Out of stock

11

BOLT This part replaces 01107-08308.

01500-08307

2
Out of stock

12

2

$2.28

In stock

13

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

2
Out of stock

14

SPACER,8.8X12X1 This part replaces 09180-08036.

09180-08036-XC0

2
Out of stock
