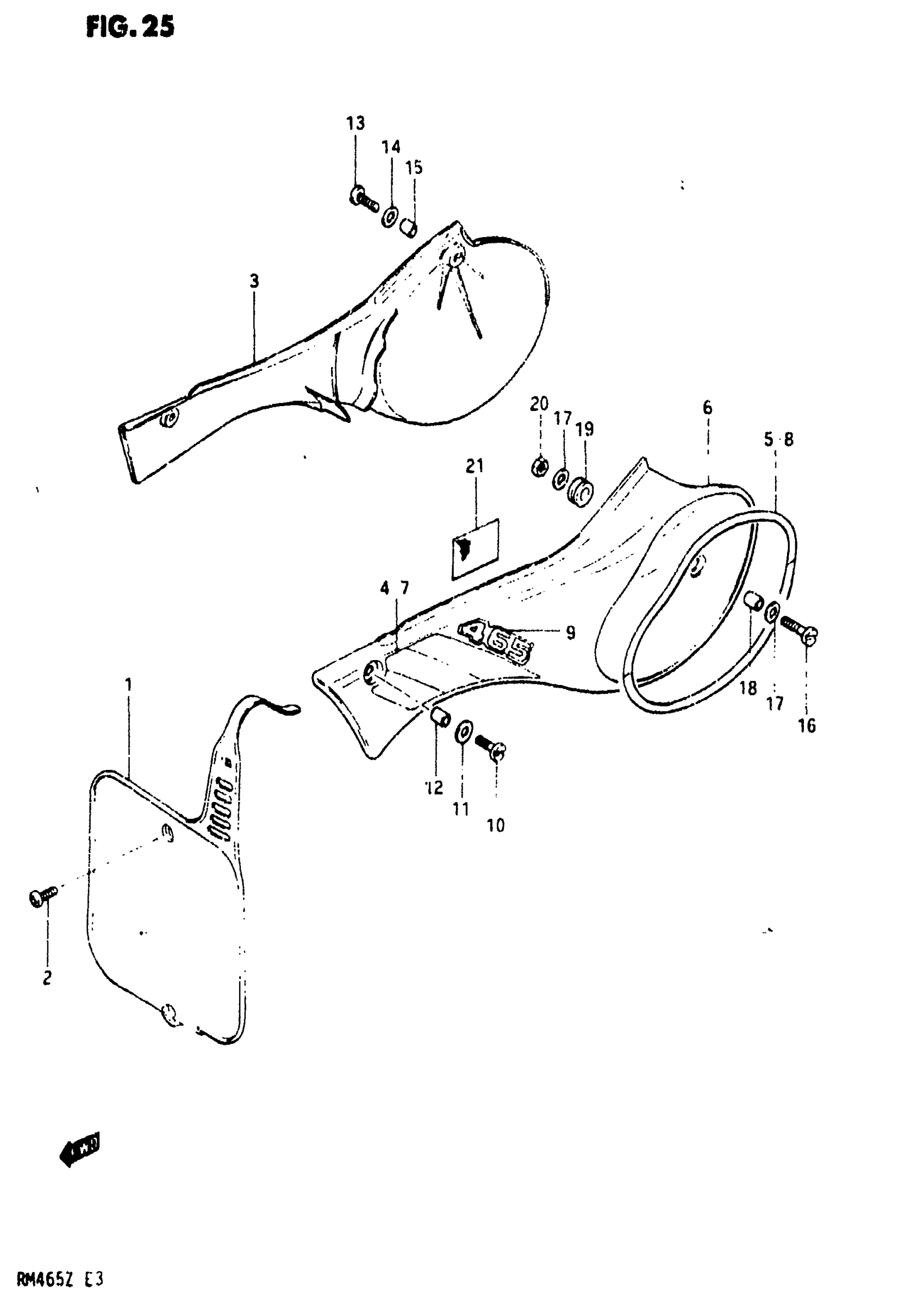

Suzuki RM465 (1982) FRAME COVER (MODEL Z) Diagram

#

Description
Price

1

PLATE, FRONT NUMBER (YELLOW) This part replaces 94911-14300.

94911-00B10-25Y

$64.72

2

SCREW

02142-05167

$1.49

3

NO DESCRIPTION AVAILABLE This part replaces 47111-14102-163.

47111-14120-13L

Unavailable

4

TAPE, RH

68136-14300-67H

Unavailable

5

TAPE, SIDE NUMBER

68130-14220

Unavailable

6

COVER, FRAME LH (YELLOW) This part replaces 47211-14102-163.

47211-14120-163

Unavailable

7

TAPE, LH

68146-14300-67H

Unavailable

8

TAPE, SIDE NUMBER

68140-14220

Unavailable

9

EMBLEM

68131-14220-64D

Unavailable

10

SCREW, FRONT

09123-06023

Unavailable

11

WASHER This part replaces 94927-14100.

09160-06084

$1.78

12

SPACER, FRONT

94928-14100

Unavailable

13

SCREW, REAR RH

09123-06021

Unavailable

14

WASHER This part replaces 94927-14100.

09160-06084

$1.78

15

SPACER, REAR RH

94929-14100

Unavailable

16

SCREW, REAR LH

09123-06022

Unavailable

17

WASHER This part replaces 94927-14100.

09160-06084

$1.78

18

SPACER, REAR LH

94928-14100

Unavailable

19

CUSHION, REAR LH

09320-10015

$2.54

20

.NUT This part replaces 08310-22068.

08310-00067

$2.13

21

SHIELD,FRM CVR, This part replaces 47122-14201.

47167-28C10

Unavailable
