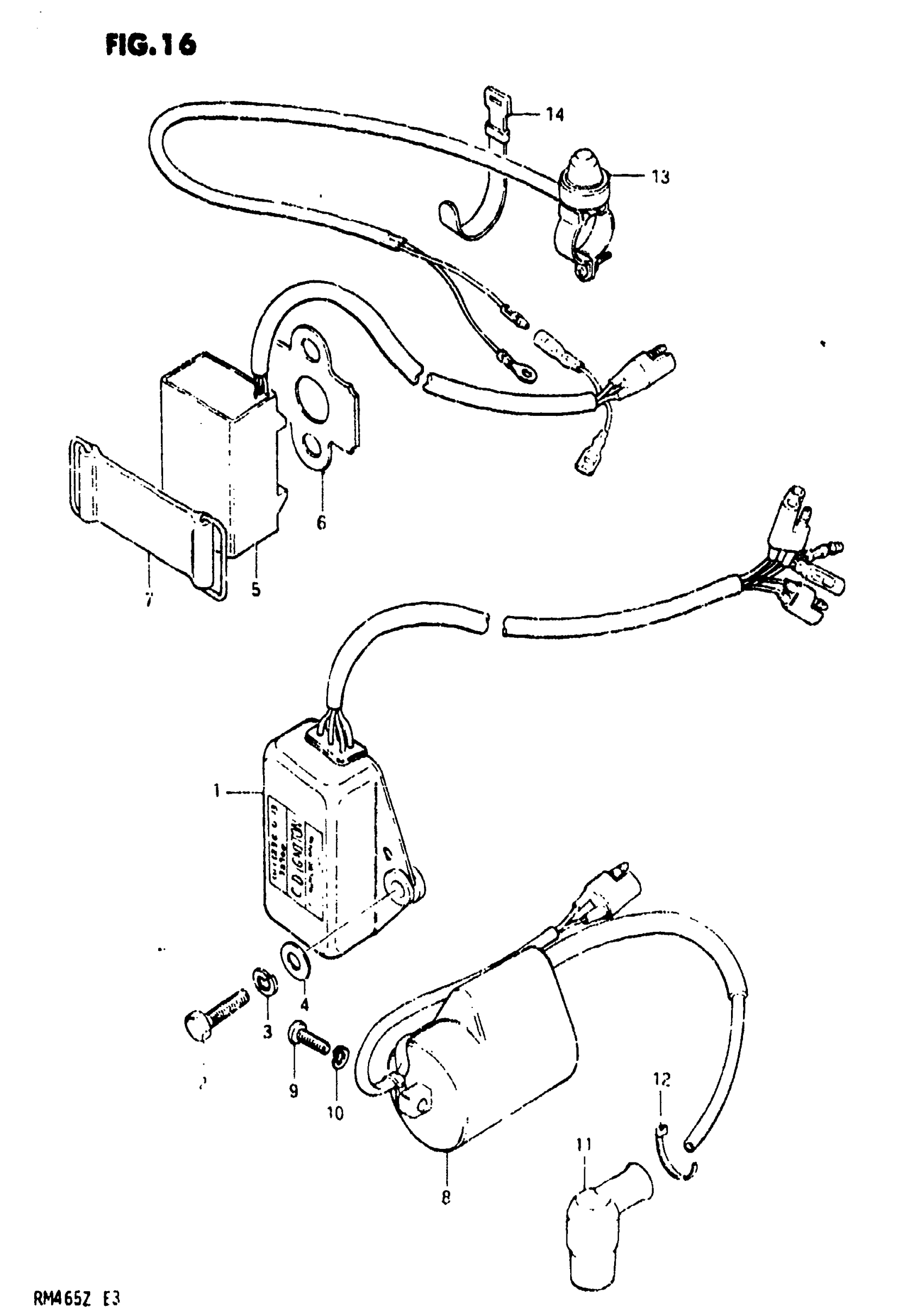

Suzuki RM465 (1982) ELECTRICAL Diagram

CDI UNIT | MODEL X

32900-40422

Unavailable

BOLT | MODEL X This part replaces 01107-06208.

01500-06207

$2.28

LOCK WASHER | MODEL X This part replaces 08321-21068.

08321-01067

$2.13

WASHER | MODEL X

09160-06019

$1.49

CDI UNIT | MODEL Z

32900-14220

Unavailable

PROTECTOR | MODEL Z

32941-14300

Unavailable

BAND, CDI UNIT | MODEL Z This part replaces 32942-14110.

32942-14111

$8.62

COIL ASSY, IGNITION

33410-14120

$115.17

SCREW This part replaces 02112-05208.

02112-05207

$1.97

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

CAP, SPARK PLUG This part replaces 33510-41111.

33510-20A02

$24.39

BELT

09407-09402

$2.45

SWITCH ASSY, ENGINE STOP This part replaces 37820-40400.

37820-14X50

$48.54

CLAMP

09407-12402

$3.04
