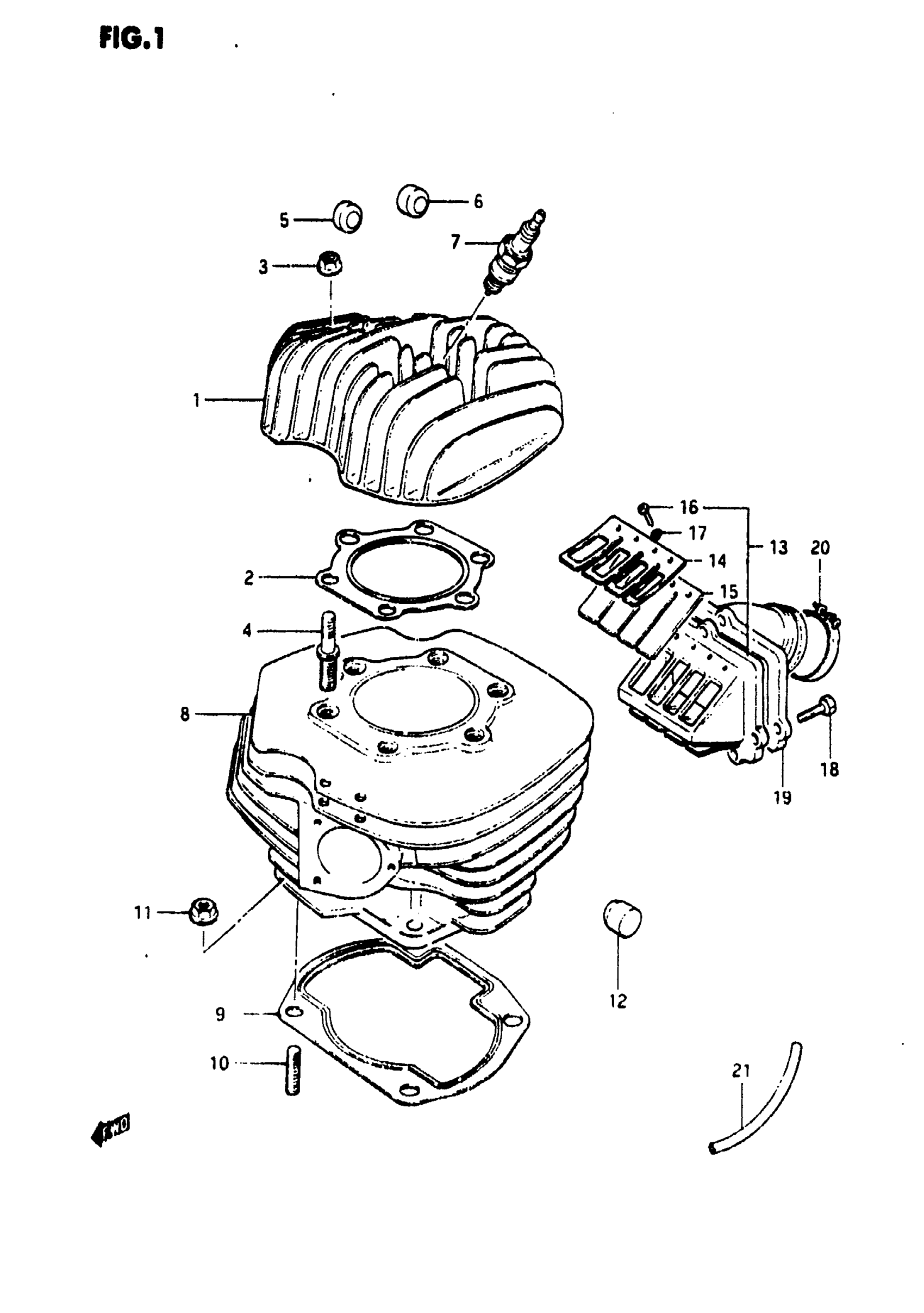

Suzuki RM465 (1982) CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD | MODEL X This part replaces 11111-14211.

11111-14212

Unavailable

1

CYLINDER HEAD | MODEL Z

11111-14212

Unavailable

2

GASKET (T:0.6) This part replaces 11141-14210.

11141-14220

Unavailable

3

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

4

STUD BOLT

09108-08086

Unavailable

5

RUBBER PAD | MODEL Z:OPT This part replaces 11252-28000.

11252-13630

$3.25

6

RUBBER PAD | MODEL Z:OPT

11252-38001

$3.78

7

SPARK PLUG (NGK, B8EGV)

09482-00208

Unavailable

8

CYLINDER | MODEL X This part replaces 11210-14211.

11210-14213

Unavailable

8

CYLINDER | MODEL Z

11210-14213

Unavailable

9

GASKET, CYLINDE This part replaces 11241-14211.

11241-14211-H17

Unavailable

10

STUD BOLT (L:30) This part replaces 01421-10308.

01421-1030A

$2.57

11

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39

12

RUBBER PAD | MODEL Z:OPT

11151-16400

Unavailable

13

VALVE ASSY, REED | Includes Item(s) 14 - 17 This part replaces 13152-14200.

13150-01C00

Unavailable

14

VALVE ASSY, REED This part replaces 13152-14200.

13150-01C00

Unavailable

15

REED VALVE

13153-14200

Unavailable

16

SCREW This part replaces 02112-03088.

02112-0308A

$1.80

17

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

18

BOLT This part replaces 01107-06208.

01500-06207

$2.28

19

PIPE, INTAKE | MODEL X

13110-14200

Unavailable

19

PIPE, INTAKE | MODEL Z

13110-14210

Unavailable

20

CLAMP This part replaces 09402-56306.

09402-56901

$5.36

21

HOSE 4X7X600 | L:440-330L:440-400L:440-330 This part replaces 09343-04046.

09352-40706-600

$5.11
