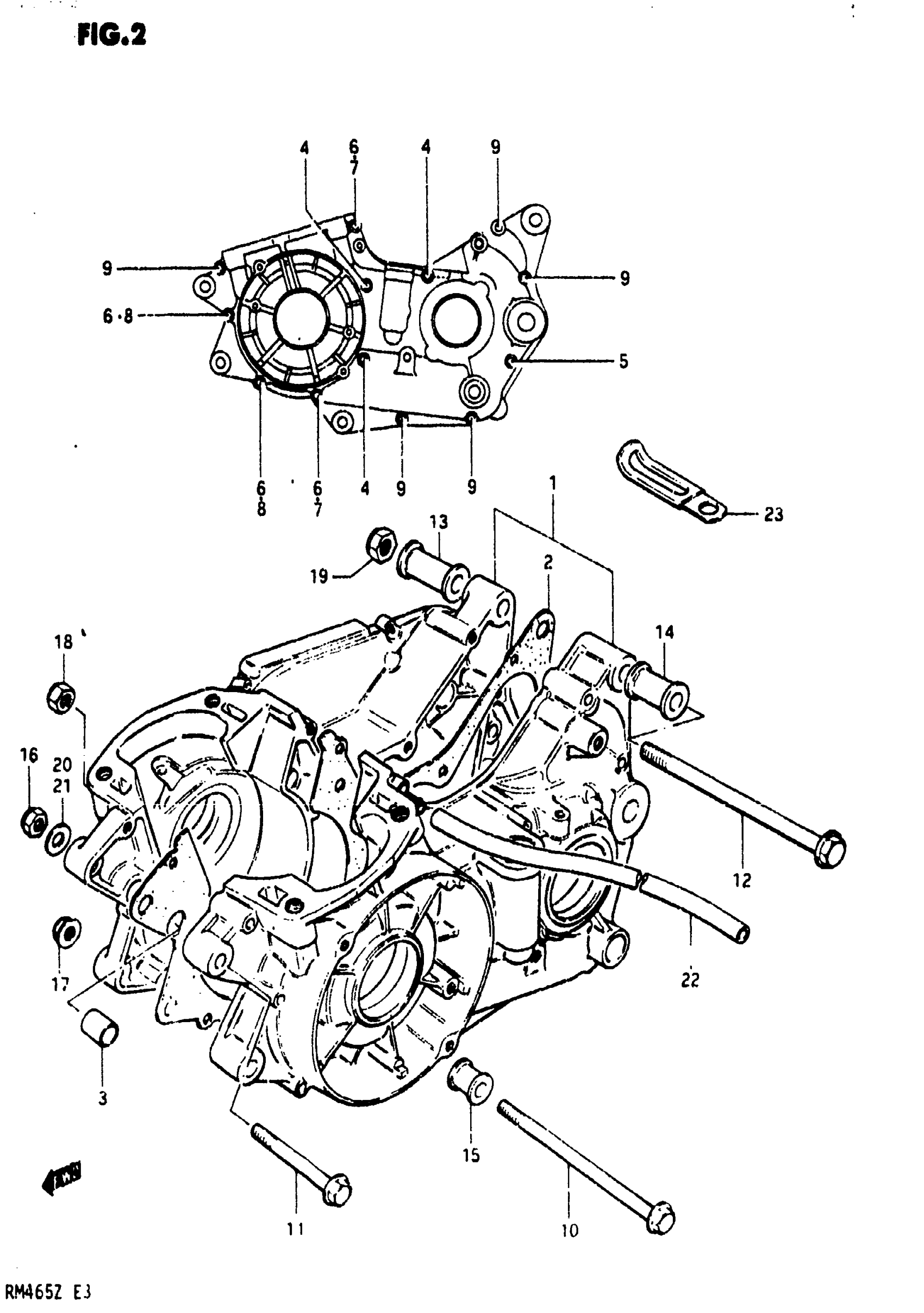

Suzuki RM465 (1982) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | MODEL X

11300-14840

Unavailable

1

CRANKCASE SET | MODEL Z; Includes Item(s) 2 - 9

11300-14861

Unavailable

2

GASKET,CRANKCAS This part replaces 11481-14210.

11481-14230-H17

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW This part replaces 02112-06658.

02112-06657

$2.62

5

SCREW (6x55)

02112-06557

$2.53

6

SCREW (6X45) | MODEL X This part replaces 02112-06458.

02112-06457

$1.78

7

SCREW (6X45) | MODEL Z This part replaces 02112-06458.

02112-06457

$1.78

8

SCREW (6X40) | MODEL Z This part replaces 02112-06408.

02112-06407

$1.78

9

SCREW This part replaces 02112-06358.

02112-06357

$1.78

10

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 09103-08064.

09103-08087

Unavailable

10

BOLT (8x200) | MODEL Z

09100-08191

Unavailable

11

BOLT (8x75)

09103-08063

Unavailable

12

BOLT (10X215) This part replaces 09103-10041.

09103-10041-A05

$10.40

13

SPACER (L:65)

11611-14210

Unavailable

14

SPACER (L:55) This part replaces 11611-14220.

11610-14A00

Unavailable

15

SPACER, ENGINE MOUNTING (L:28) This part replaces 11611-14230.

11610-14200

Unavailable

16

NUT | MODEL X This part replaces 08319-31088.

08319-3108A

$2.32

17

NUT | MODEL Z This part replaces 08319-31088.

08319-3108A

$2.32

18

NUT | MODEL Z This part replaces 08319-21088.

08319-2108A

$2.12

19

NUT This part replaces 08319-31108.

08319-31107

$2.73

20

WASHER | (0~2)

09169-10011

Unavailable

21

WASHER | (0~2)

09169-10012

Unavailable

22

HOSE | MODEL X This part replaces 09343-05021.

09352-50005-00B

$13.93

22

HOSE 4X7X600 | MODEL Z This part replaces 09343-04046.

09352-40706-600

$5.11

23

CLAMP This part replaces 09404-08402.

09404-08420

$3.16
