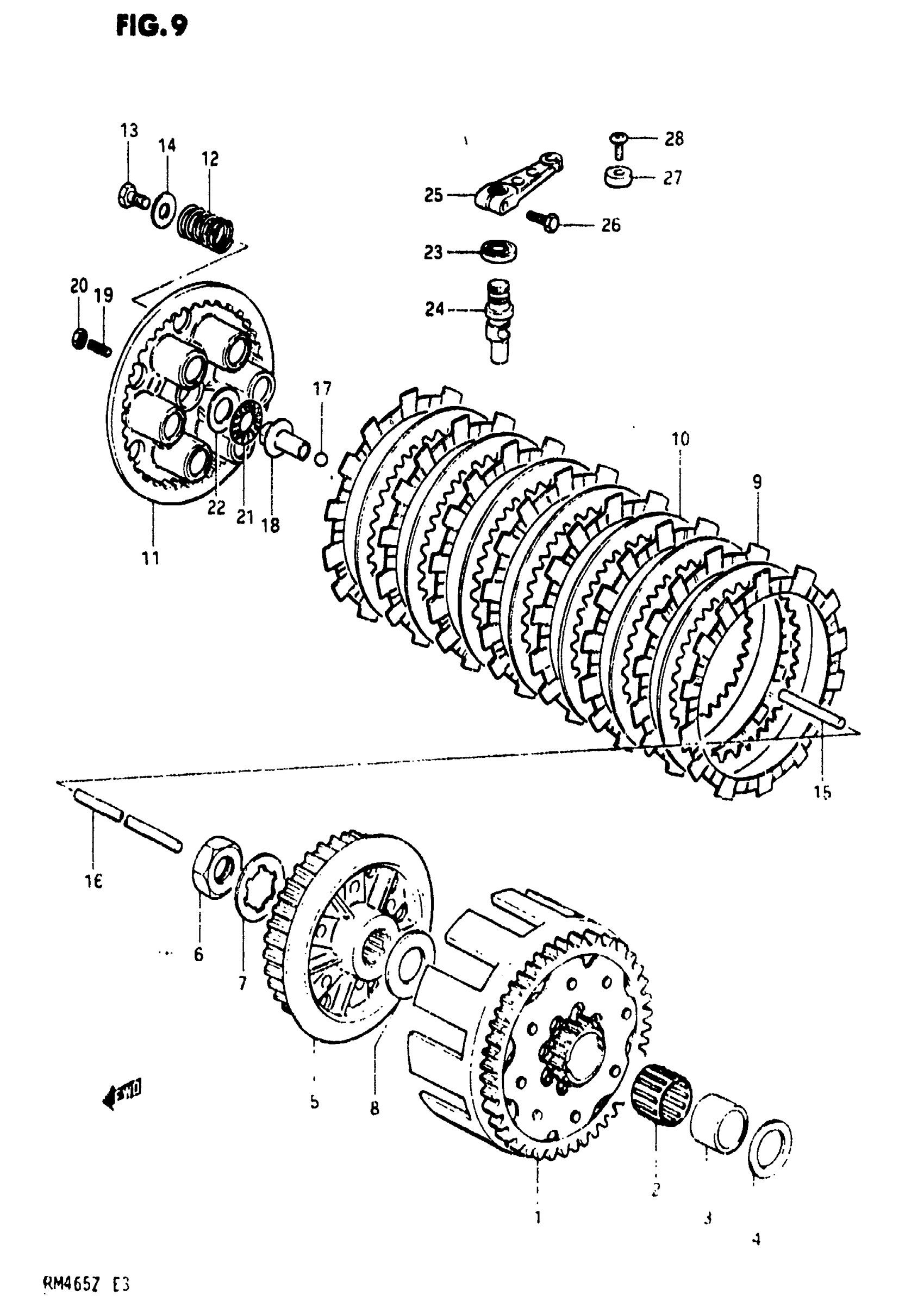

Suzuki RM465 (1982) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN | NT:18/62

21200-14211

Unavailable

2

BEARING

09263-28002

Unavailable

3

SPACER

09180-22021

Unavailable

4

WASHER

08211-22403

$4.26

5

HUB, SLEEVE This part replaces 21411-14211.

21411-14212

Unavailable

6

NUT

09140-22005

$3.87

7

WASHER

09167-22005

$2.11

8

WASHER

08211-22403

$4.26

9

PLATE, CLUTCH DRIVE NO.1 This part replaces 21441-40402.

21441-37400

$18.13

10

PLATE,CLUTCH DRIVEN (T:1.6) This part replaces 21451-45000.

21451-28C31

$11.81

11

DISK,CLUTCH PRE This part replaces 21462-45102.

21462-12C00

Unavailable

12

SPRING

09440-19007

$2.52

13

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

14

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89

15

ROD, PUSH (L:112) | MODEL X

23111-10200

Unavailable

16

ROD,CLUTCH PUSH,L | MODEL X This part replaces 23111-39101.

23111-15501

$13.30

16

ROD, PUSH (L:206) | MODEL Z

23111-14220

Unavailable

17

BALL | MODEL Z

06111-08003

$1.49

18

PIECE, CLUTCH PUSH | MODEL X This part replaces 23121-40301.

23121-38201

$26.73

18

PIECE, PUSH | MODEL Z

23121-14300

Unavailable

19

SCREW | MODEL X This part replaces 09134-06001.

09134-06010

$3.12

20

.NUT | MODEL X This part replaces 08310-22068.

08310-00067

$2.13

21

BEARING

09263-15003

$8.29

22

WASHER, CLUTCH PUSH This part replaces 09160-15015.

09160-15045

$3.89

23

OIL SEAL

09285-12004

$6.24

24

CAMSHAFT, RELEASE | MODEL X This part replaces 23122-40901.

23122-40902

Unavailable

24

SHAFT, CAM | MODEL Z

23122-40902

Unavailable

25

ARM, RELEASE

23271-14200

Unavailable

26

BOLT This part replaces 01107-06208.

01500-06207

$2.28

27

STOPPER | MODEL X

23281-40300

Unavailable

28

SCREW | MODEL X This part replaces 02152-06168.

02112-16167

$3.15
