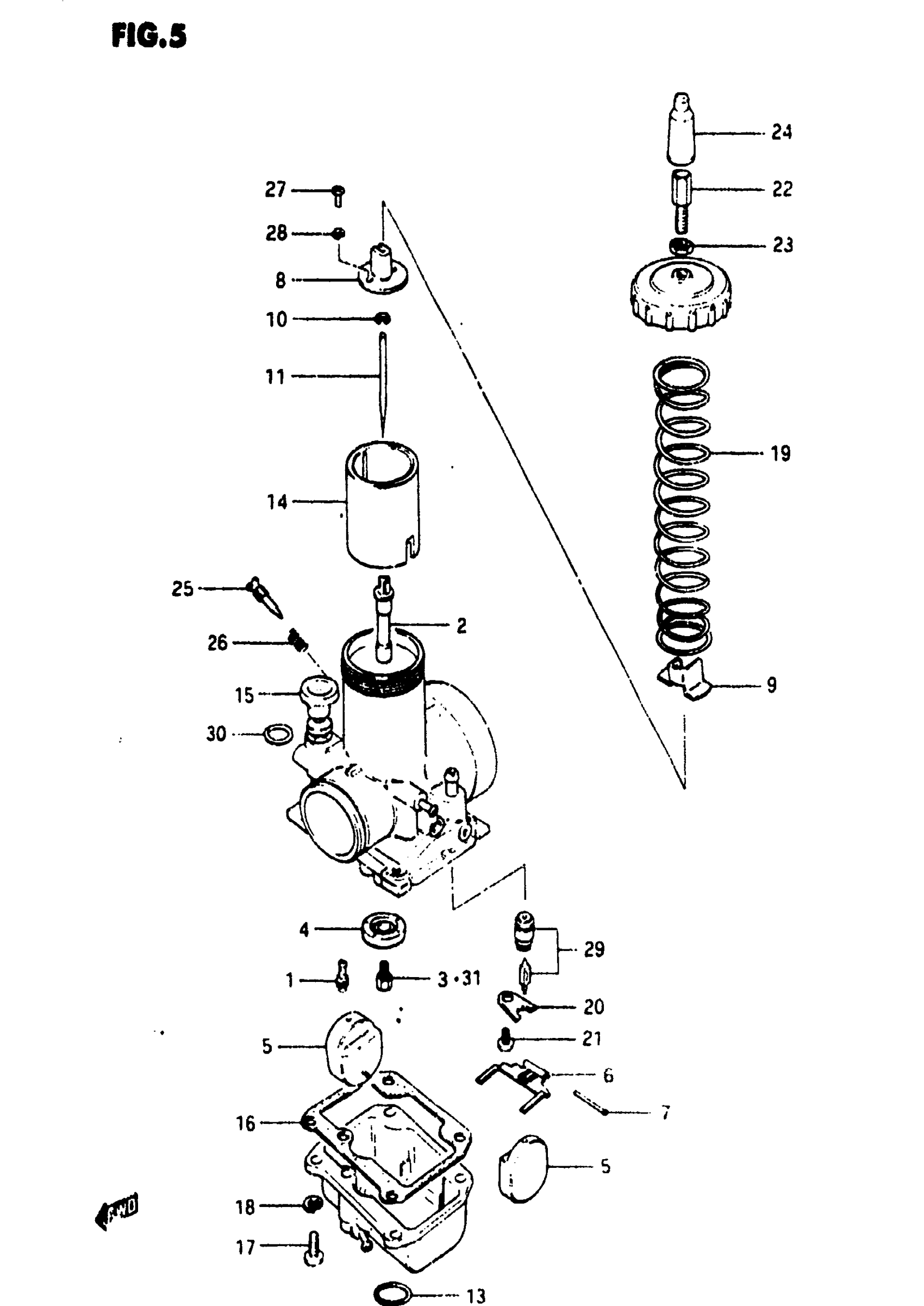

Suzuki RM465 (1982) CARBURETOR (MODEL X) Diagram

#

Description
Price

0

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 30 This part replaces 13200-14210.

13200-14211

Unavailable

1

JET, PILOT (60)

09492-60004

Unavailable

2

JET, NEEDLE (R-8)

09494-00321

Unavailable

3

JET, MAIN (310) This part replaces 09491-62001.

09491-62005

$11.83

4

RING

13331-40600

Unavailable

5

FLOAT

13252-16600

$27.77

6

ARM, FLOAT

13253-40200

Unavailable

7

.PIN, FLOAT

13254-01010

$3.62

8

HOLDER, JET NEEDLE

13581-40200

Unavailable

9

COVER, HOLDER

13629-40200

Unavailable

10

CLIP, NEEDLE

13394-10010

$5.45

11

NEEDLE, JET (6FD37-3)

13383-14200

Unavailable

12

PLUG, DRAIN

13247-40600

Unavailable

13

O RING

09280-20003

$2.30

14

VALVE, THROTTLE (CA:2.0)

13551-14200

Unavailable

15

PLUNGER ASSY, STARTER

13410-14100

Unavailable

16

GASKET, FLOAT CHAMBER

13251-40230

Unavailable

17

SCREW This part replaces 02112-05168.

02112-05167

$1.97

18

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

19

SPRING, RETURN

13573-16601

Unavailable

20

PLATE

13373-39110

$6.64

21

SCREW This part replaces 02112-04068.

02112-0406B

$1.55

22

ADJUSTER, CABLE

13577-41612

$7.01

23

NUT

13661-16600

$4.64

24

CAP

13681-33010

$9.32

25

SCREW, PILOT AIR (1 1/2)

13269-15010

Unavailable

26

SPRING

13268-01010

$5.28

27

SCREW This part replaces 02112-03088.

02112-0308A

$1.80

28

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

29

VALVE, NEEDLE This part replaces 13370-40230.

13370-40600

Unavailable

30

O RING This part replaces 13295-15010.

09280-08014

$1.89

31

JET, MAIN (300) | OPT This part replaces 09491-60003.

09491-60007

$13.05

31

JET, MAIN (320) | OPT This part replaces 09491-64001.

09491-64002

$11.83

31

JET, MAIN (330) | OPT This part replaces 09491-66001.

09491-66002

$11.38

31

JET, MAIN (340) | OPT This part replaces 09491-68001.

09491-68002

$11.38

31

JET, MAIN (350) | OPT This part replaces 09491-70008.

09491-70011

$11.38
