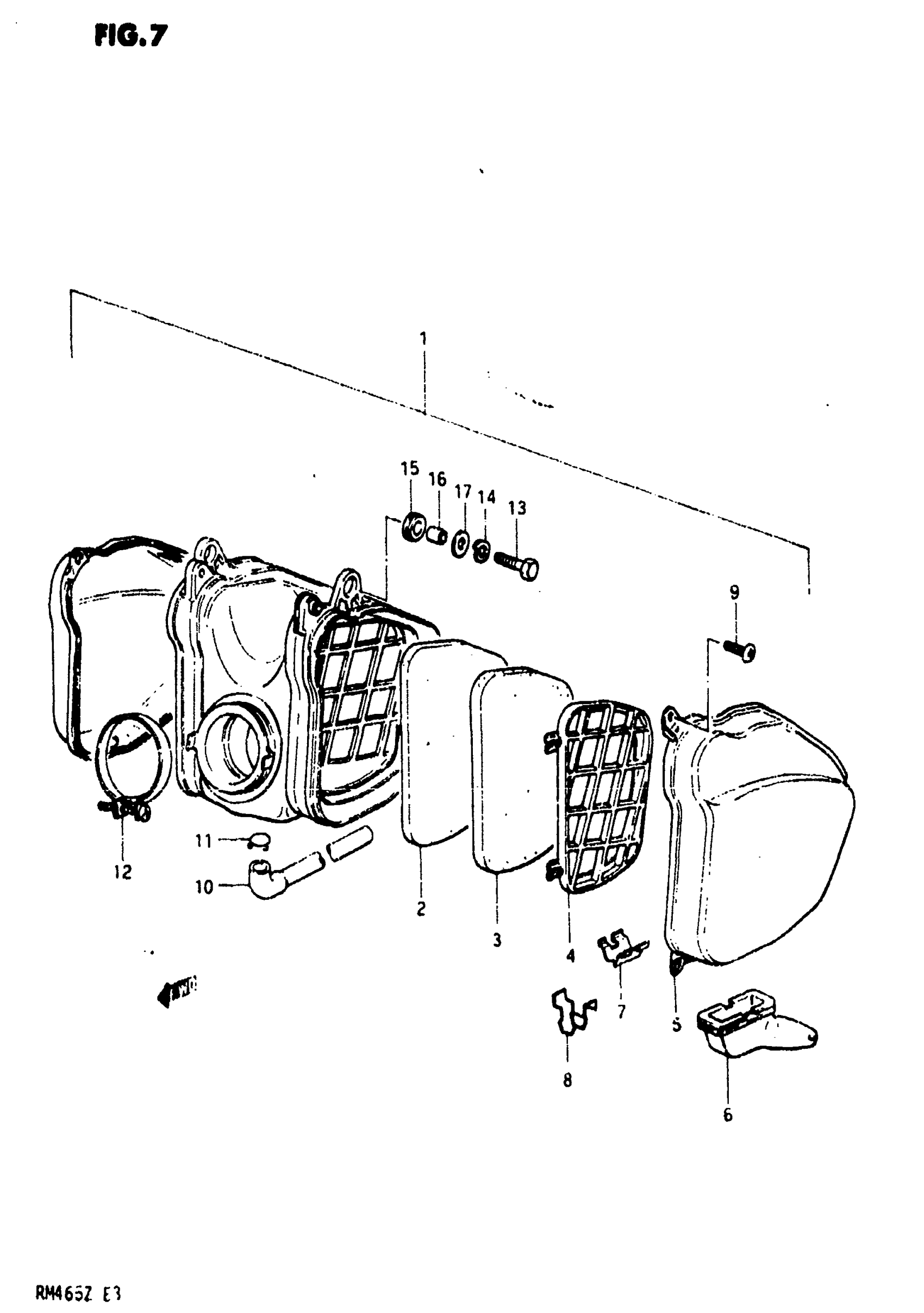

Suzuki RM465 (1982) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | MODEL X This part replaces 13700-14200.

13700-14210

Unavailable

1

CLEANER ASSY, AIR | MODEL Z; Includes Item(s) 2 - 12

13700-14210

Unavailable

2

FILTER

13781-14200

Unavailable

3

FILTER, 2ND | MODEL X This part replaces 13786-14200.

13786-14210

Unavailable

3

FILTER, OUTER | MODEL Z

13786-14210

Unavailable

4

HOLDER, RH | MODEL X This part replaces 13791-14200.

13791-14210

Unavailable

4

HOLDER, RH | MODEL Z

13791-14210

Unavailable

4

HOLDER, LH | MODEL X This part replaces 13792-14200.

13792-14210

Unavailable

4

HOLDER, LH | MODEL Z

13792-14210

Unavailable

5

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 13740-14200.

13700-14840

Unavailable

5

CAP, RH | MODEL Z

13740-14210

Unavailable

5

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 13750-14200.

13700-14850

Unavailable

5

CAP, LH | MODEL Z

13750-14210

Unavailable

6

TUBE, DRAIN | MODEL X This part replaces 13860-14200.

13871-14210

Unavailable

6

TUBE, DRAIN | MODEL Z

13871-14210

Unavailable

7

STOPPER, TUBE | MODEL X This part replaces 13979-14100.

13877-14110

Unavailable

8

STOPPER, TUBE | MODEL Z

13877-14110

Unavailable

9

SCREW

02142-05167

$1.49

10

TUBE, DRAIN (L:250) | MODEL X

13870-00150

Unavailable

10

TUBE,DRAIN | MODEL Z This part replaces 13870-00170.

13870-11459

$15.51

11

CLIP

09401-14301

$2.35

12

CLAMP | MODEL X

09402-70206

Unavailable

12

CLAMP (1) | MODEL Z This part replaces 09402-68206.

09402-68306

$4.69

13

BOLT This part replaces 01107-06208.

01500-06207

$2.28

14

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

15

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

16

SPACER (6.5X9X7) This part replaces 09180-07005.

09180-06259

$2.48

17

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89
