1980 Suzuki RM400 Rear Swinging ARM Diagram

← All diagrams

Find the part on the Rear Swinging ARM diagram for your 1980 Suzuki RM400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

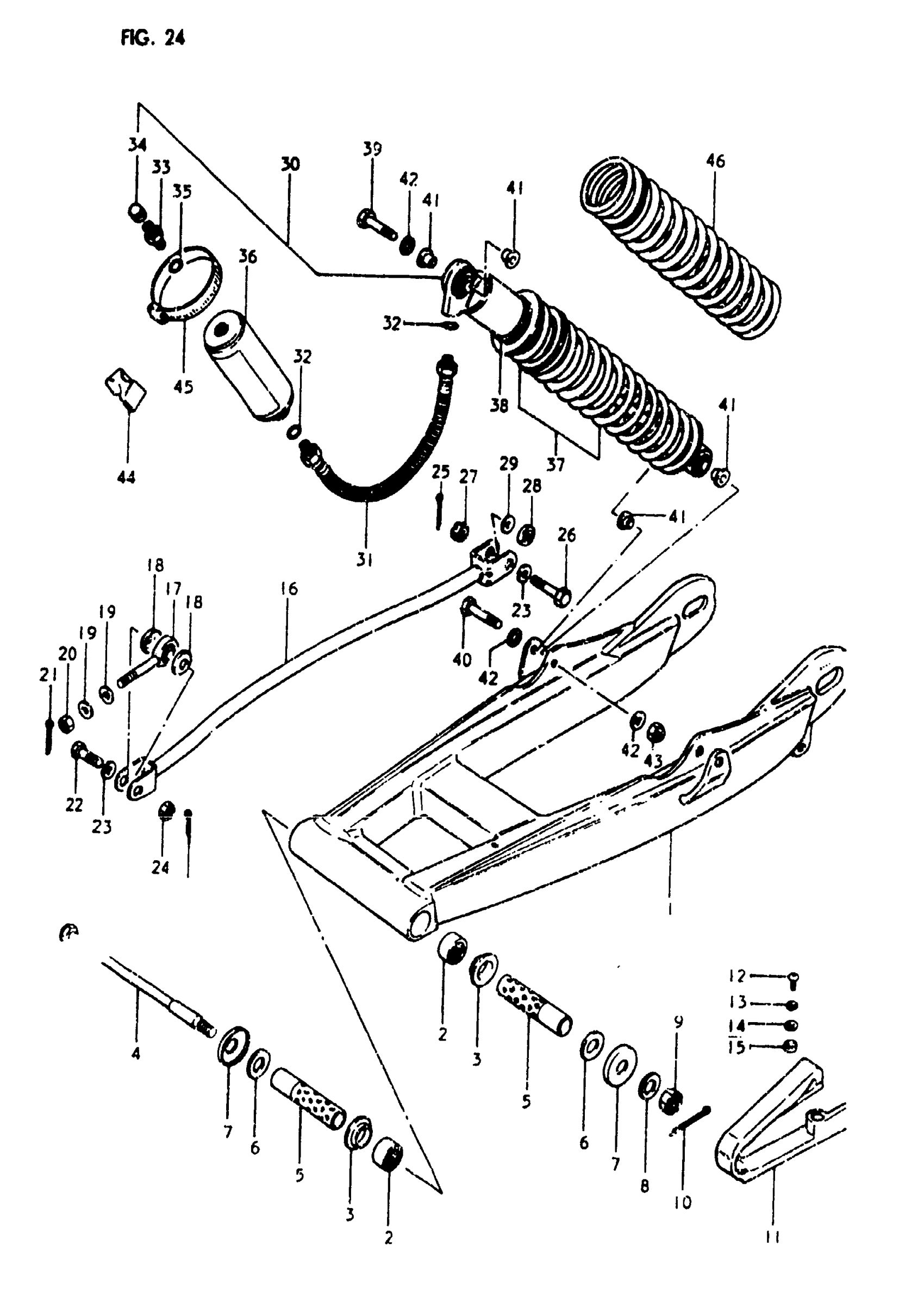

1980 Suzuki RM400 Rear Swinging ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR SWINGING RM SET | Includes Item(s) 2 - 3

61100-40881

1
Out of stock

2

2

$29.42

In stock

3

BUSH This part replaces 61261-40401.

61261-27C00

2
Out of stock

4

SHAFT, PIVOT

61211-40402

1
Out of stock

5

SPACER,RR SWING This part replaces 61251-40401.

61251-40402

2
Out of stock

6

THRUST WASHER

08211-15322

2

$3.08

In stock

7

SEAL, DUST This part replaces 61262-40400.

61262-40401

2
Out of stock

8

1

$2.07

In stock

9

NUT, HUB This part replaces 08314-41148.

08314-4014B

1
Out of stock

10

PIN This part replaces 04111-30308.

04111-3030A

1
Out of stock

11

BUFFER, CHAIN TOUTCH DEFENSE N

61273-40413

1
Out of stock

12

SCREW

02142-05107

2

$1.20

In stock

13

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock

14

2

$2.33

In stock

15

SPACER,5.5X8X4 This part replaces 09180-05015.

09180-05046

2
Out of stock

16

NO DESCRIPTION AVAILABLE This part replaces 64310-40420.

64310-40420-08C

1
Out of stock

17

BEARING, FRONT

64337-40401

1
Out of stock

18

DUST SEAL, FRONT

64338-40400

2
Out of stock

19

WASHER

09164-08011

2

$2.92

In stock

20

1

$1.93

In stock

21

1

$1.31

In stock

22

BOLT, FRONT

09101-08003

1
Out of stock

23

WASHER This part replaces 08322-11088.

08322-01087

1
Out of stock

24

1

$3.30

In stock

25

COTTER PIN This part replaces 04111-20208.

04111-2020A

2
Out of stock

26

BOLT, REAR

09101-08010

1
Out of stock

27

1

$3.30

In stock

28

DUST SEAL TORQU This part replaces 64339-40400.

64339-40401

2
Out of stock

29

WASHER,8.5X16X2 This part replaces 09160-08050.

09160-08144

2
Out of stock

30

SHOCK ABSORBER ASSY, REAR | Includes Item(s) 31 - 38

62100-40330

2
Out of stock

31

HOSE This part replaces 62280-40220.

62280-40200

2
Out of stock

32

O RING

62154-40200

4
Out of stock

33

VALVE

51293-49001

2
Out of stock

34

VALVE, CAP

51294-40400

2

$9.17

In stock

35

O RING

51117-41211

2
Out of stock

36

TANK

62270-40330

2
Out of stock

37

SPRING

62210-40330

2
Out of stock

38

STOP, SPRING

62192-41630

2
Out of stock

39

BOLT

09100-08150

2
Out of stock

40

BOLT

09100-08151

2
Out of stock

41

SPACER

62316-40200

8
Out of stock

42

WASHER This part replaces 08322-11088.

08322-01087

6
Out of stock

43

2

$2.31

In stock

44

CUSHION

62331-41630

4
Out of stock

45

CLAMP

62332-41631

4
Out of stock

46

SPRING (SOFT) | OPT

62210-40410

2
Out of stock

46

SPRING (HARD) | OPT

62210-40420

2
Out of stock
