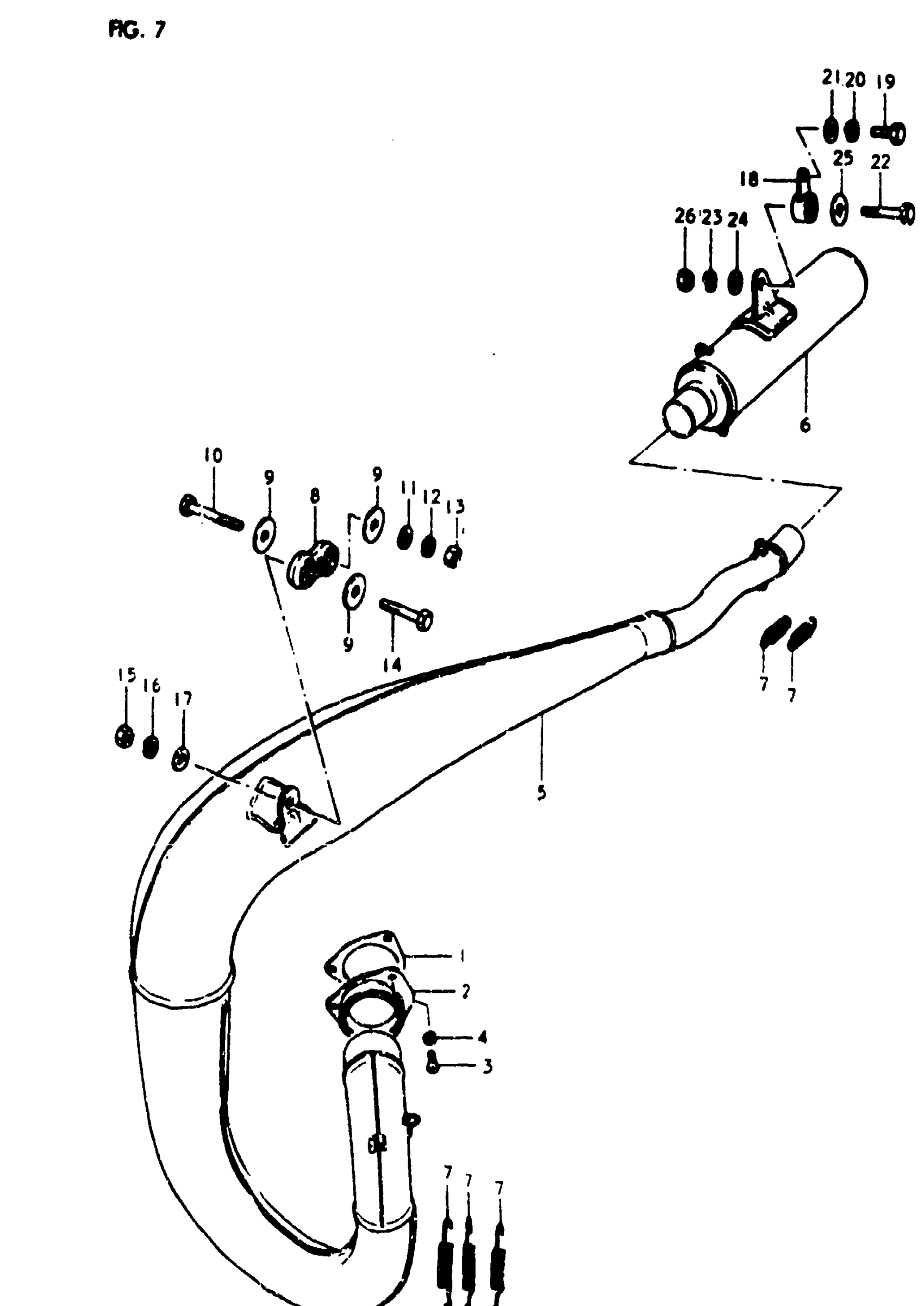

Suzuki RM400 (1980) MUFFLER Diagram

#

Description
Price

1

GASKET,EXH FLNG This part replaces 14181-41200.

14181-41201-H17

Unavailable

2

FLANGE, EXHAUST PIPE This part replaces 14170-40400.

14170-40403

Unavailable

3

SCREW This part replaces 02112-06208.

02112-06207

$1.83

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.89

5

MUFFLER, 1ST

14310-40400

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 14330-40400.

14330-40400-H01

Unavailable

7

SPRING

09443-11002

$2.88

8

DAMPER, MUFFLER

14770-40000

Unavailable

9

WASHER This part replaces 09160-08035.

09160-08130

$2.10

10

BOLT This part replaces 01107-08608.

01500-0860B

$3.32

11

WASHER This part replaces 08322-11088.

08322-01087

$1.92

12

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.89

13

NUT This part replaces 08310-12088.

08310-00087

$1.91

14

BOLT This part replaces 01107-08358.

01500-0835B

$2.82

15

NUT This part replaces 08310-12088.

08310-00087

$1.91

16

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.89

17

WASHER This part replaces 08322-11088.

08322-01087

$1.92

18

DAMPER, REAR This part replaces 14770-16440.

14700-40810

Unavailable

19

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.57

20

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.89

21

WASHER This part replaces 08322-11088.

08322-01087

$1.92

22

BOLT This part replaces 01107-08358.

01500-0835B

$2.82

23

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.89

24

WASHER This part replaces 08322-11088.

08322-01087

$1.92

25

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.17

26

NUT This part replaces 08310-12088.

08310-00087

$1.91
