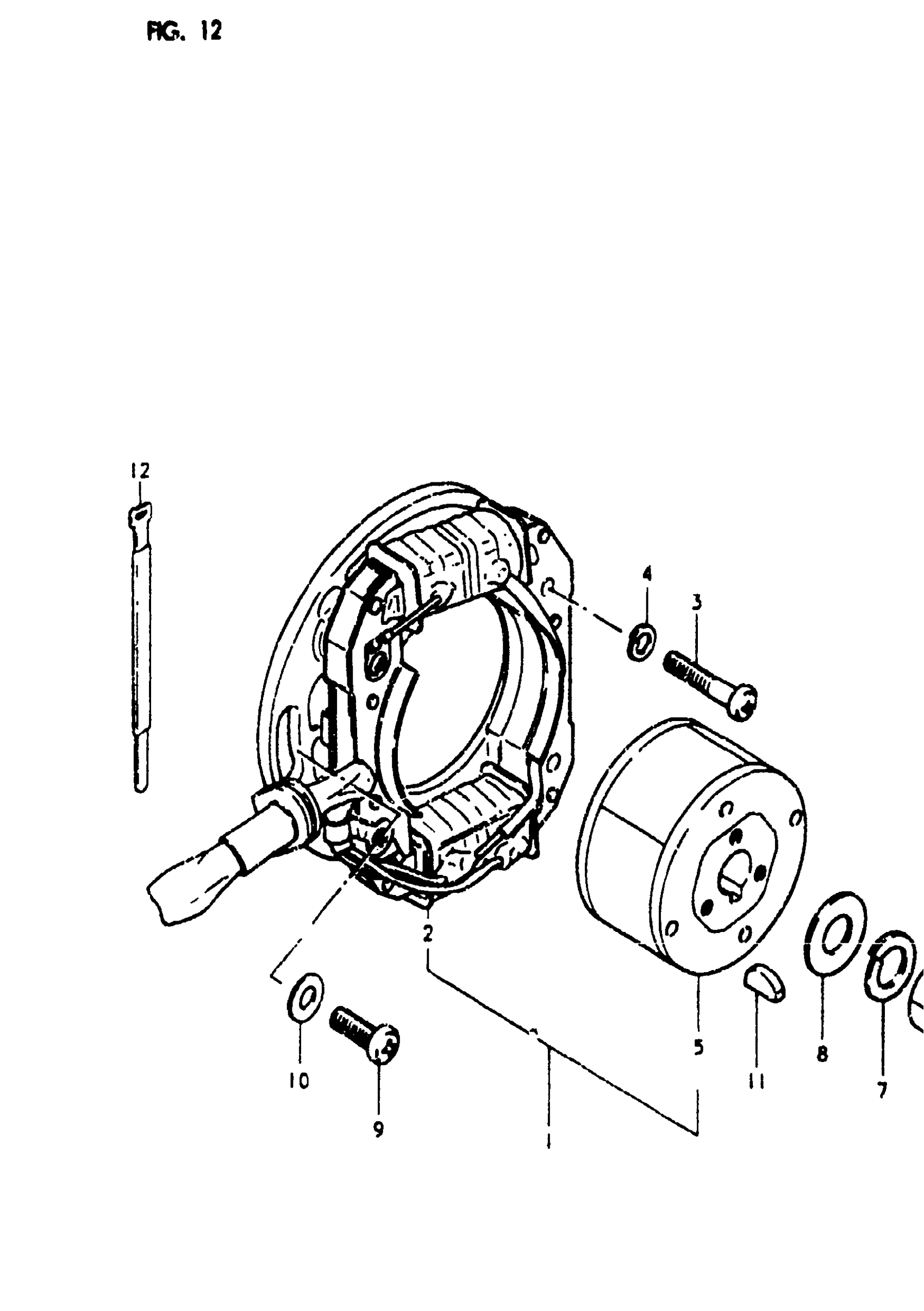

Suzuki RM400 (1980) MAGNETO Diagram

#

Description
Price

1

MAGNETO ASSY | Includes Item(s) 2 - 5

32100-40420

Unavailable

2

STATOR ASSY This part replaces 32101-40420.

32101-40422

Unavailable

3

SCREW This part replaces 02112-05208.

02112-05207

$2.03

4

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.89

5

ROTOR

32102-40420

Unavailable

6

NUT This part replaces 09140-10003.

09140-10041

$2.21

7

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.89

8

WASHER This part replaces 08322-21108.

08322-01107

$1.95

9

SCREW This part replaces 02112-06168.

02112-06167

$1.46

10

WASHER This part replaces 08322-21068.

08322-01067

$1.93

11

KEY This part replaces 08341-31049.

09420-04008

$3.18

12

CLAMP This part replaces 09407-18301.

09407-18302

$2.27
