1979 Suzuki RM400 Gear Shifting Diagram

← All diagrams

Find the part on the Gear Shifting diagram for your 1979 Suzuki RM400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

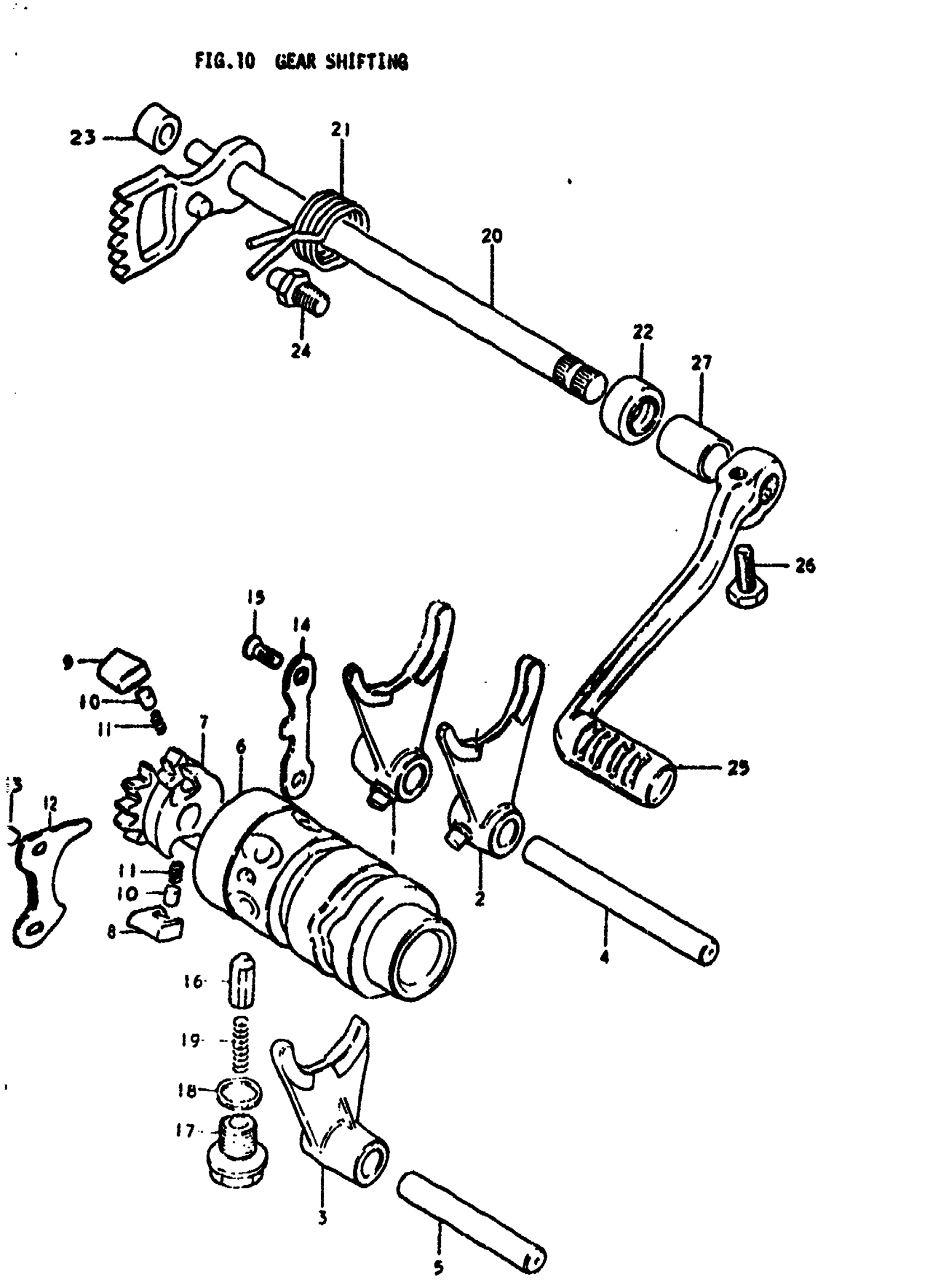

1979 Suzuki RM400 Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK, GEAR SHIFTING NO.1

25211-40400

1
Out of stock

2

NO DESCRIPTION AVAILABLE This part replaces 25221-40400.

25221-40X01

1
Out of stock

3

FORK, GEAR SHIFTING NO.3

25231-40400

1
Out of stock

4

1

$26.03

In stock

5

1

$26.50

In stock

6

CAM This part replaces 25310-40400.

25310-14213

1
Out of stock

7

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-11000.

25322-31310

1
Out of stock

10

PIN

09261-05003

2
Out of stock

11

SPRING

09440-04003

2

$1.76

In stock

12

LIFTER, PAWL

25331-40400

1
Out of stock

13

SCREW This part replaces 02122-06128.

02122-06127

2
Out of stock

14

1

$13.73

In stock

15

SCREW This part replaces 02122-06128.

02122-06127

2
Out of stock

16

1

$7.20

In stock

17

1

$7.41

In stock

18

GASKET | 14.7x19..5x2

09168-14004

1

$1.96

In stock

19

SPRING

09440-05011

1

$2.09

In stock

20

NO DESCRIPTION AVAILABLE This part replaces 25510-40400.

25510-404V0

1
Out of stock

21

SPRING

09444-26013

1

$3.06

In stock

22

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

1
Out of stock

23

SPACER | 12.2x20x13

09180-12083

1
Out of stock

24

STOPPER, ARM This part replaces 25671-01000.

25671-01011

1
Out of stock

25

LEVER,GEAR SHIF This part replaces 25611-40301.

25600-40304

1
Out of stock

26

1

$2.10

In stock

27

CUSHION

09320-13001

1
Out of stock
