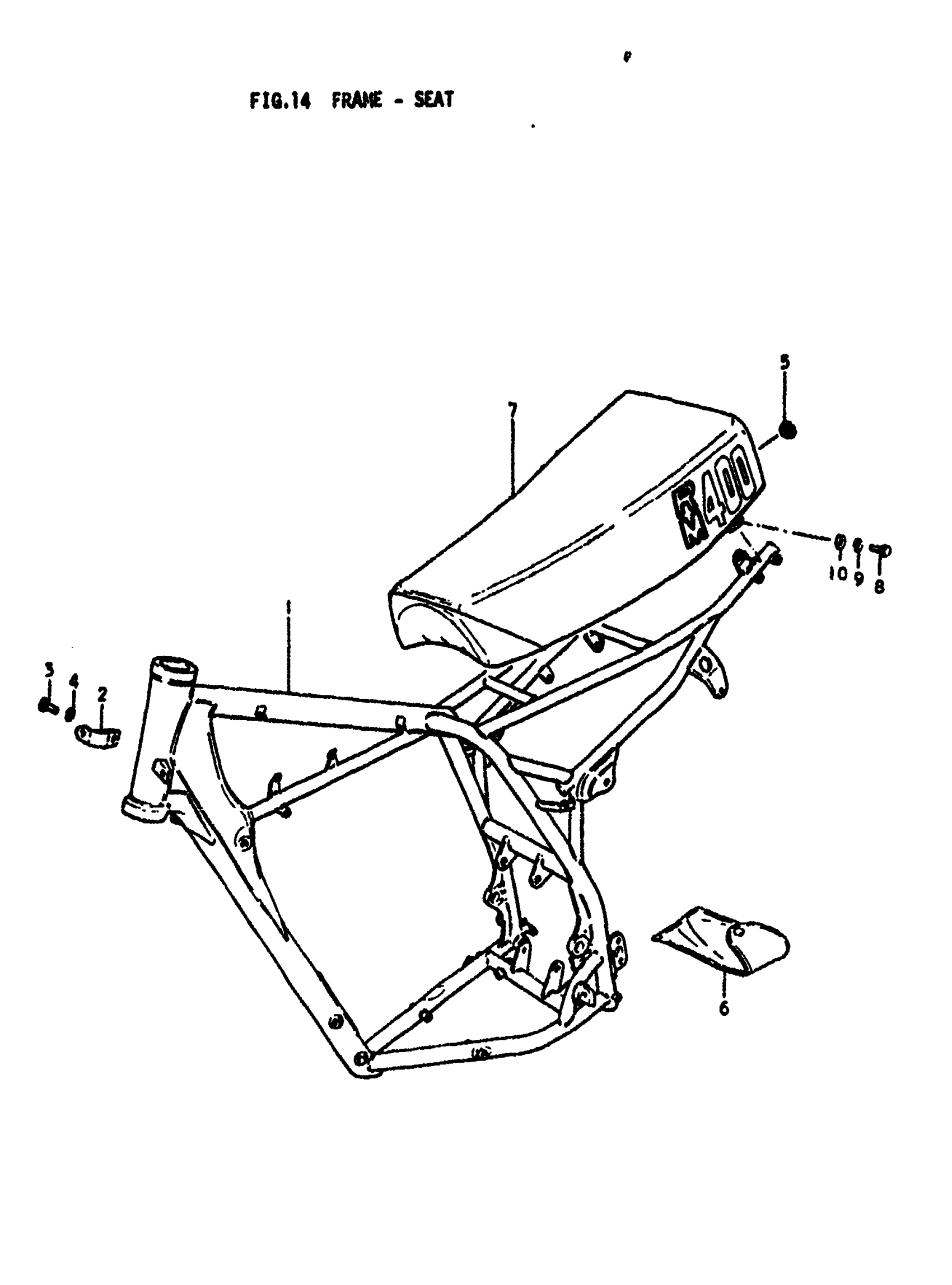

Suzuki RM400 (1979) FRAME - SEAT Diagram

#

Description

Price

1

FRAME

41100-40400-019

Unavailable

2

BRACKET, CDI UNIT

41890-41300

Unavailable

3

BOLT This part replaces 01107-06128.

01500-06127

$2.01

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.89

5

PLUG

09250-14005

$2.15

6

TOOL SET This part replaces 09800-00170.

09800-08800

Unavailable

7

NO DESCRIPTION AVAILABLE This part replaces 45100-40400-865.

45100-40301-865

Unavailable

8

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$2.01

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.89

10

WASHER (6.5X18X1.0)

09160-06028

$1.48
