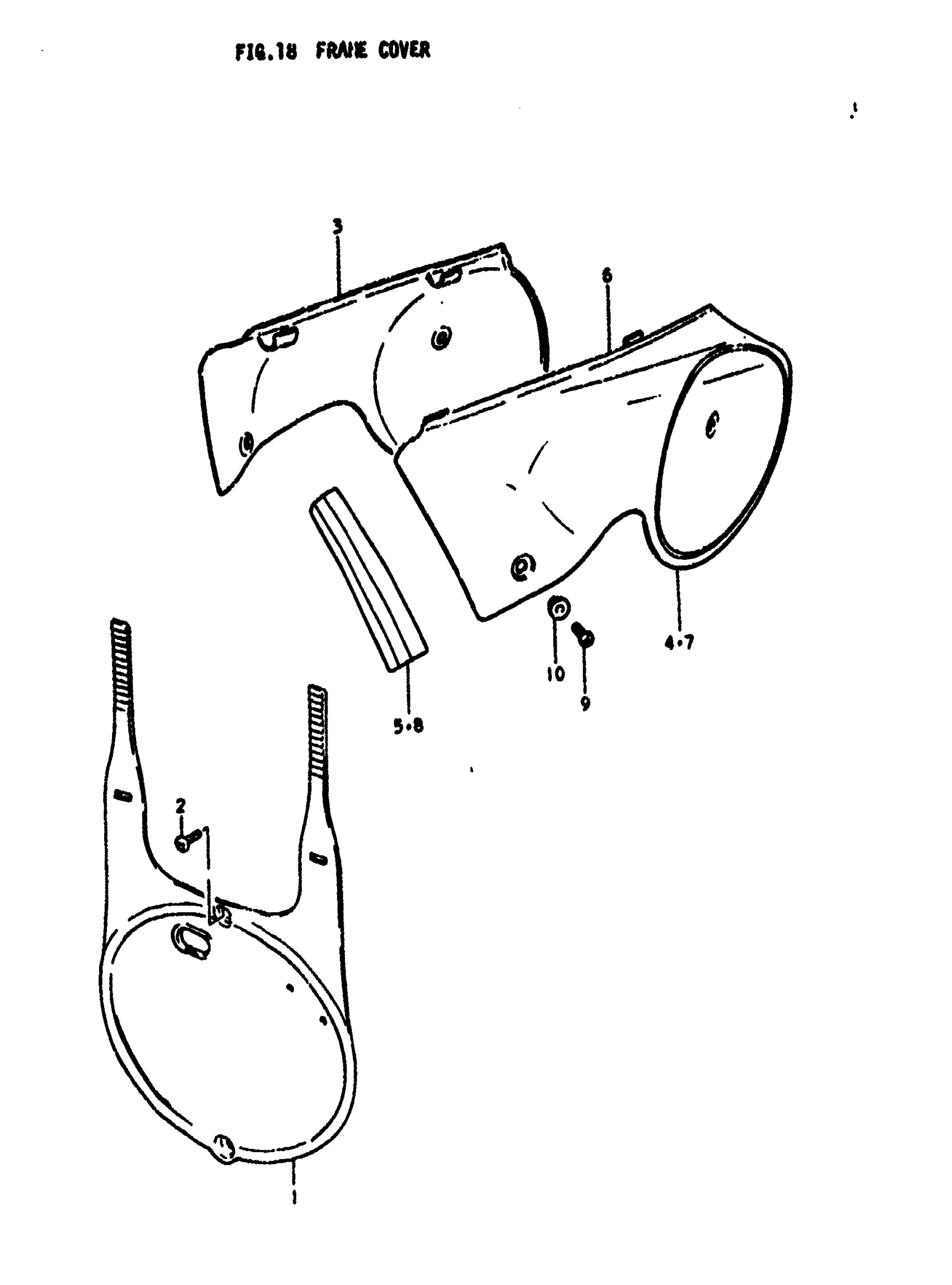

Suzuki RM400 (1979) FRAME COVER Diagram

#

Description

Price

1

PLATE, FRONT NUMBER

94911-41300

Unavailable

2

SCREW This part replaces 02142-05208.

02142-05207

$1.48

3

COVER FRAME RH This part replaces 47111-40400-163.

47111-40401-163

Unavailable

4

TAPE, STRIPING

68146-41200

Unavailable

5

TAPE, STRIPING FRONT

68134-40400-67H

Unavailable

6

COVER, FRAME LH

47211-40400-163

Unavailable

7

TAPE, STRIPING

68146-41200

Unavailable

8

TAPE, STRIPING FRONT

68144-40400-67H

Unavailable

9

SCREW

02142-06127

$1.43

10

WASHER (6.3X16X1) This part replaces 09180-06048.

09169-06053

$1.15
