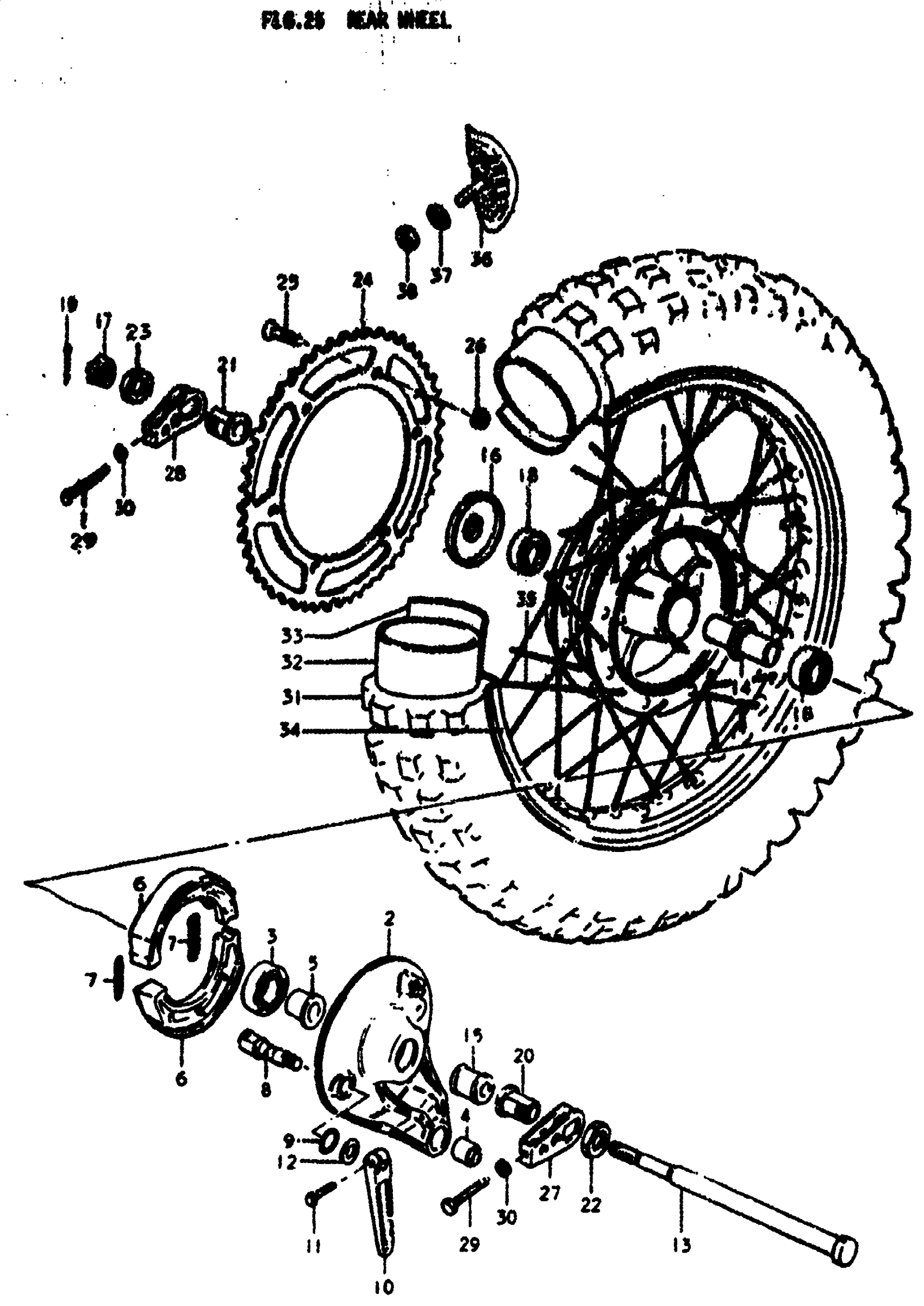

Suzuki RM400 (1978) REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR WHEEL

64110-41602

Unavailable

1

REAR HUB DRUM SET | OPT MATERIAL MAGNASIUM INCLUDES REF.NO.14 AND 18.

64100-41820

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 64210-41110.

64200-41820

Unavailable

3

BEARING This part replaces 08123-60050.

08123-60057

$29.00

4

BUSH

09319-10008

$7.40

5

SPACER This part replaces 64213-41100.

64213-41110

Unavailable

6

SHOE SET, REAR BRAKE This part replaces 54410-08002.

64400-02830

$55.17

7

SPRING

55420-41100

Unavailable

8

CAM, REAR BRAKE This part replaces 54440-08001.

54440-08004

$27.62

9

O RING (ID:14.8,D:2.40) This part replaces 09280-15001.

09280-15003

$1.76

10

LEVER, BRAKE CAM

54451-41100

Unavailable

11

BOLT, GEAR SHIFT ARM This part replaces 01107-06256.

01500-0625A

$1.78

12

WASHER | 15x24x1.6 This part replaces 09160-15001.

09160-15048

$2.56

13

AXLE, REAR

64711-41100

Unavailable

14

SPACER, HUB BEARING

64730-41101

Unavailable

15

SPACER, AXIE RH

64741-41110

Unavailable

16

SPACER, AXIE LH

64750-41102

Unavailable

17

NUT

09141-14004

$3.91

18

BEARING This part replaces 08123-62034.

08133-6203B

$17.61

19

PIN This part replaces 04111-30408.

04111-3040A

$1.59

20

SPACER, CHAIN ADJUSTER RH

64781-41710

Unavailable

21

SPACER, CHAIN ADJUSTER LH

64791-41710

Unavailable

22

NUT

09140-24007

$3.89

23

NUT

09140-22006

Unavailable

24

NO DESCRIPTION AVAILABLE | NT:50 This part replaces 64511-41130.

64511-41131

Unavailable

25

SCREW This part replaces 09120-08003.

09120-08004

$2.40

26

NUT

09159-08021

Unavailable

27

ADJUSTER, CHAIN RH

61420-41710

Unavailable

28

ADJUSTER, CHAIN LH

61410-41710

Unavailable

29

BOLT (8X50) This part replaces 09104-08006.

09104-08034

$3.04

30

NUT This part replaces 08310-12108.

08310-00107

$2.19

31

TIRE (51018) | 4.60-18 This part replaces 65100-41611.

65100-14230

Unavailable

32

TUBE, INNER | 4.60-18 This part replaces 65200-41110.

65200-16510

Unavailable

33

PROTECTOR, INNER TUBE | 25x18 This part replaces 65261-16510.

65261-33030

$5.50

34

RIM, WHEEL | 2.15x18

65311-41220

Unavailable

35

NO DESCRIPTION AVAILABLE This part replaces 65300-41850.

65300-41851

Unavailable

36

STOPPER, BEAD This part replaces 65270-32101.

65270-28E00

$58.75

37

WASHER This part replaces 08322-11088.

08322-01087

$2.13

38

NUT This part replaces 08310-12088.

08310-00087

$2.13
