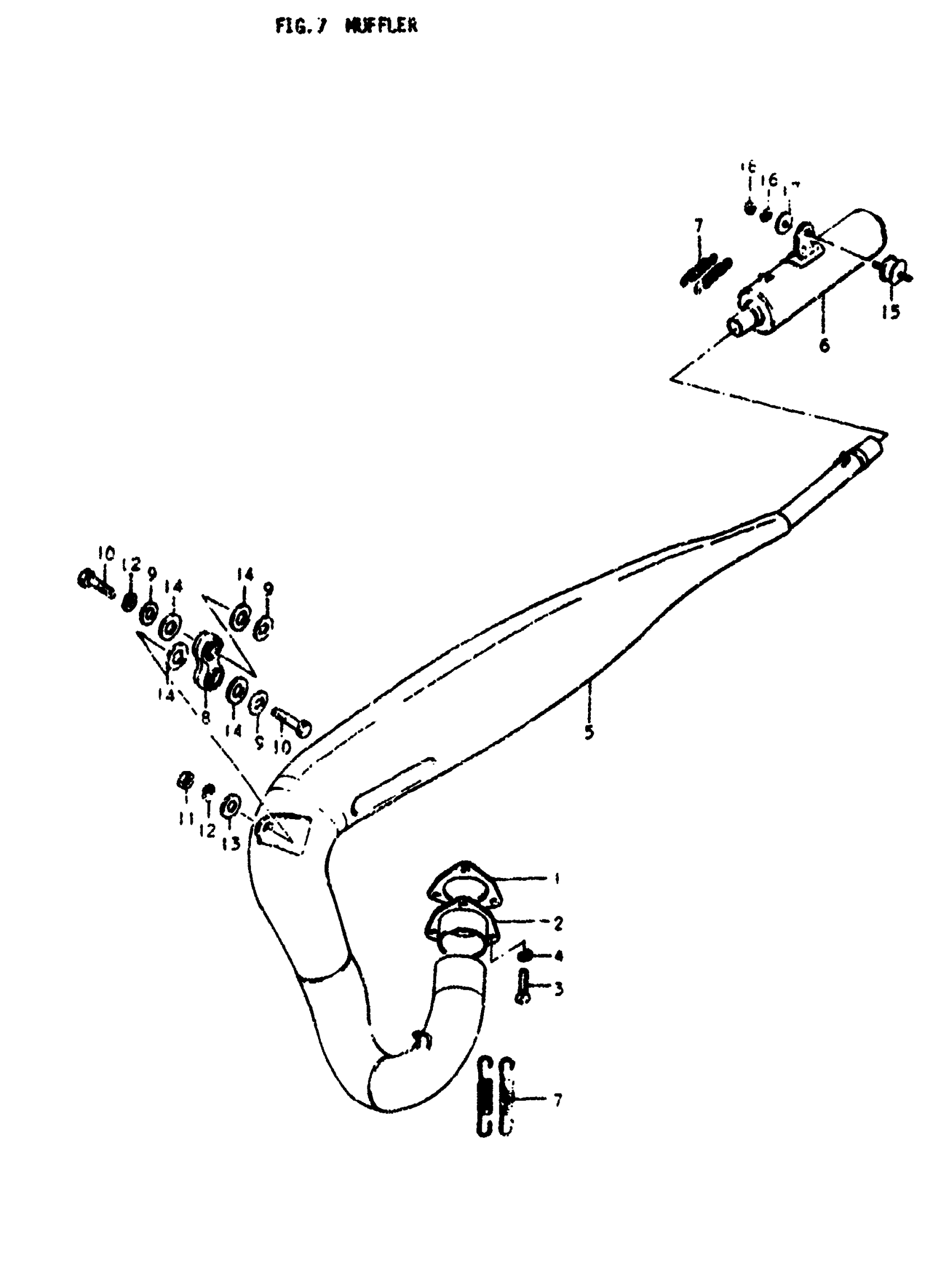

Suzuki RM400 (1978) MUFFLER Diagram

#

Description
Price

1

GASKET,EXH FLNG This part replaces 14181-41200.

14181-41201-H17

Unavailable

2

FLANGE, EXHAUST PIPE

14170-16500

Unavailable

3

SCREW This part replaces 02112-06208.

02112-06207

$1.78

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

NO DESCRIPTION AVAILABLE This part replaces 14310-41202.

14310-41202-H01

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 14330-41210.

14330-41210-H01

Unavailable

7

SPRING

09443-11002

$3.10

8

DAMPER, MUFFLER

41770-40000

Unavailable

9

WASHER | 8.5x23x1.2 This part replaces 09160-08035.

09160-08130

$2.03

10

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

11

NUT This part replaces 08310-12088.

08310-00087

$2.13

12

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

13

WASHER This part replaces 08322-11088.

08322-01087

$2.13

14

WASHER

09161-13001

Unavailable

15

DAMPER, MUFFLER SUPPORT REAR

14770-41600

Unavailable

16

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

17

WASHER (8.5X20X1.6) | 3.5x20x1.6 This part replaces 09160-08010.

09160-08054

$1.49

18

NUT This part replaces 08310-12088.

08310-00087

$2.13
