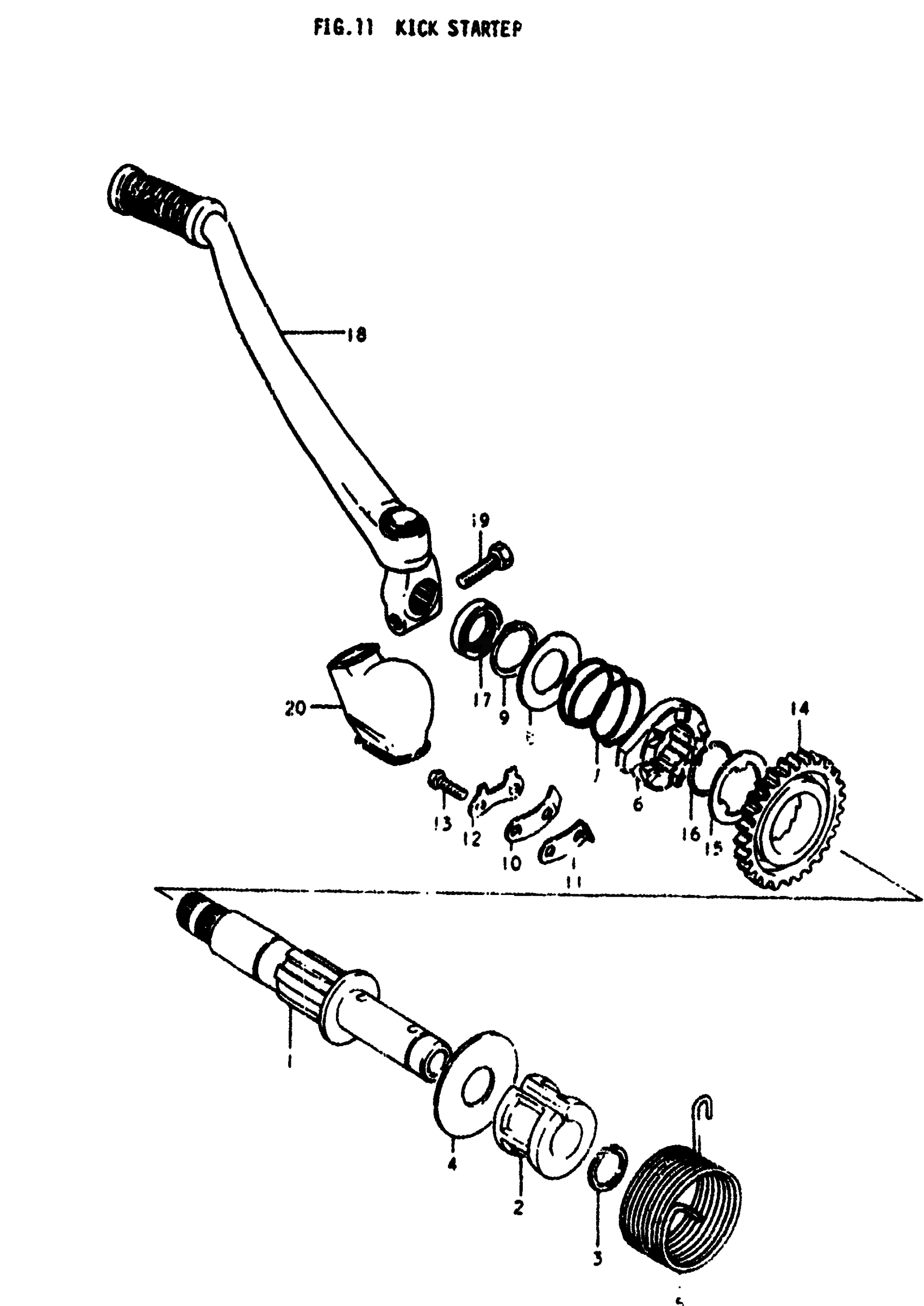

Suzuki RM400 (1978) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER

26211-41210

Unavailable

2

GUIDE, SHAFT SPRING This part replaces 26221-40031.

26221-10200

Unavailable

3

CIRCLIP

09380-17001

$1.98

4

WASHER | 17x44x2.3

09160-17015

Unavailable

5

SPRING

09448-45008

$6.99

6

STARTER, KICK

26231-40000

Unavailable

7

SPRING

09440-35001

Unavailable

8

WASHER | 20x38x1.5

08211-20382

Unavailable

9

CIRCLIP This part replaces 09380-20003.

09380-20007

$2.43

10

GUIDE, KICK STARTER

26232-41200

Unavailable

11

STOPPER, KICK STARTER

26233-41200

Unavailable

12

WASHER

09169-06003

$1.78

13

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

14

GEAR, KICK STARTER DRIVE | NT:20

26240-41200

Unavailable

15

WASHER LOCK (25.1X31X1.0)

09167-25012

$3.70

16

CIRCLIP

09380-25006

Unavailable

17

OIL SEAL

09283-20031

$5.24

18

LIVER, KICK STARTER

26300-41210

Unavailable

19

BOLT | 8x25

09100-08134

$2.46

20

COVER,KICK STAR This part replaces 26341-41100.

26341-41102

$7.54
